沃尔沃零件查询AD41D; D41D; TAMD41D; TMD41D; HS1AEngineEngine MountingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
364 次

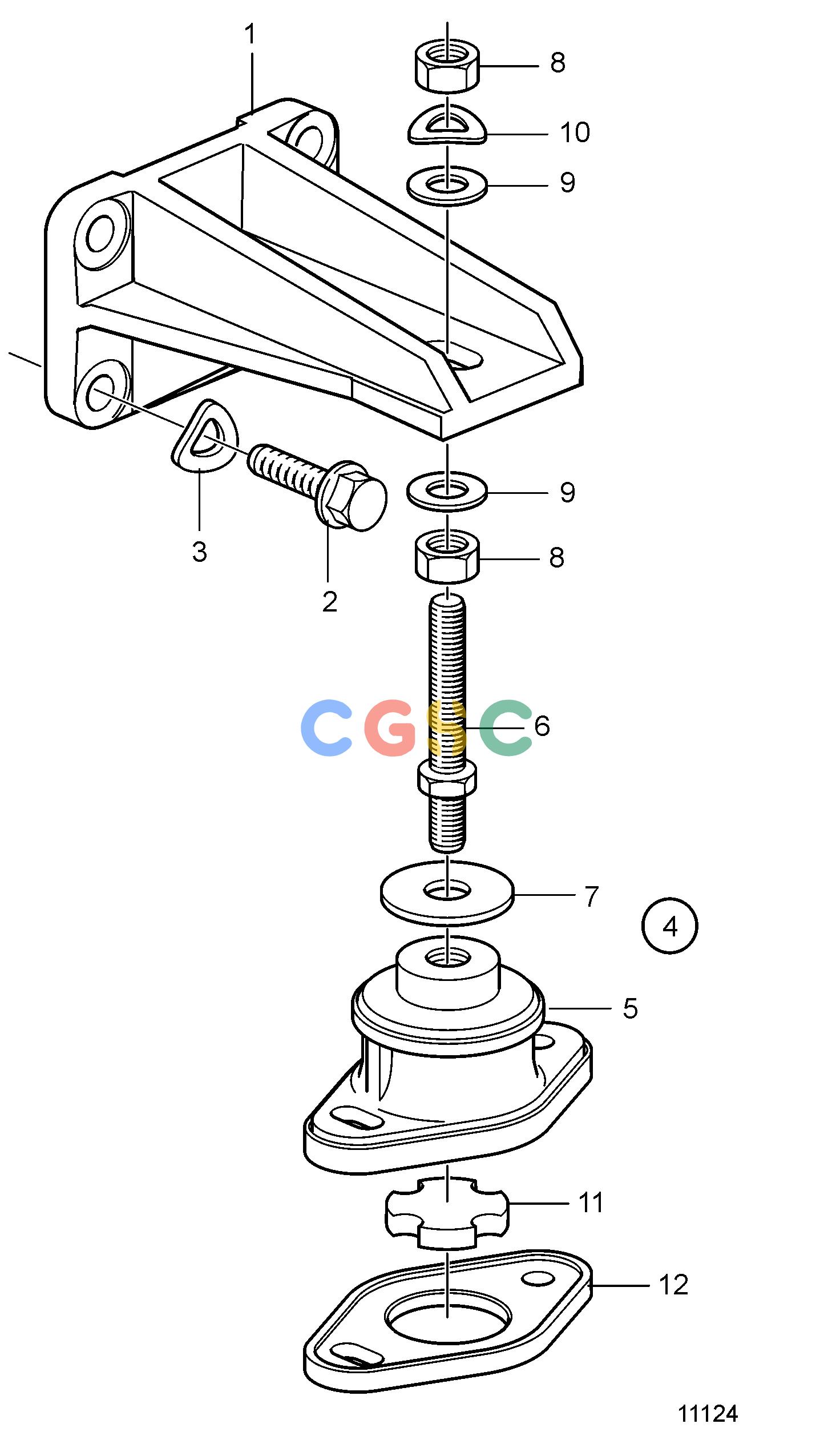

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860953
|
[2] |
Engine bracket
|
|
| 2. |
965192
|
[8] |
Flange screw
|
L=40mm
|
| 3. |
940280
|
[8] |
Spring washer
|
|
| 4. |
876596
|
[2] |
Rubber element
|
|
| 5. |
860950
|
[2] |
Adjusting screw
|
|
| 6. |
843298
|
[2] |
Washer
|
|
| 7. |
843323
|
[2] |
Rubber element
|
|
| 8. |
955806
|
[4] |
Hexagon nut
|
|
| 9. |
955901
|
[2] |
Washer
|
D=34mm
|
| 9. |
978991
|
[2] |
Washer
|
D=40mm
|
| 10. |
941913
|
[2] |
Spring washer
|
|
| 11. |
843299
|
[2] |
Rubber disc
|
|
| 12. |
843286
|
[2] |
Pad
|
|
