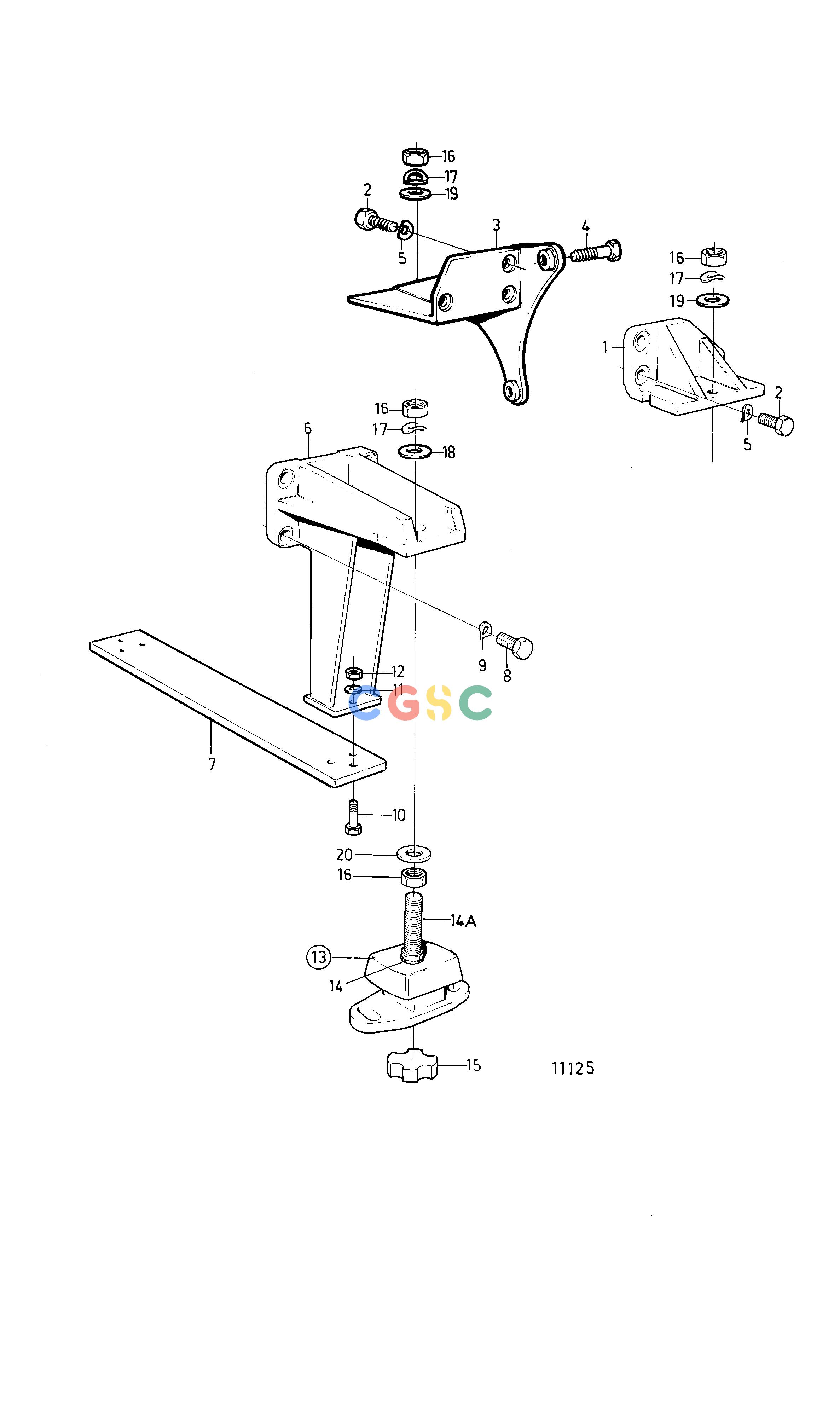

沃尔沃零件查询AD41D; D41D; TAMD41D; TMD41D; HS1AEngineEngine Mounting for Jack Shaft InstallationsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
771 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860952
|
[1] |
Engine bracket
|
Rear
|
| 2. |
966343
|
[1] |
Flange screw
|
L=35mm
|
| 2. |
965226
|
[2] |
Flange screw
|
L=45mm
|
| 3. |
861122
|
[1] |
Engine bracket
|
Rear
|
| 4. |
965186
|
[3] |
Flange screw
|
|
| 5. |
940280
|
[4] |
Spring washer
|
D=20,5mm
|
| 5. |
955897
|
[2] |
Washer
|
D=24mm
|
| 6. |
861121
|
[2] |
Engine bracket
|
|
| 7. |
858159
|
[1] |
Bracket
|
|
| 8. |
965191
|
[8] |
Flange screw
|
L=30mm
|
| 9. |
940280
|
[8] |
Spring washer
|
|
| 10. |
965191
|
[6] |
Flange screw
|
|
| 11. |
940280
|
[6] |
Spring washer
|
|
| 12. |
971096
|
[6] |
Flange nut
|
|
| 13. |
876597
|
[4] |
Rubber element
|
|
| 14. |
955900
|
[4] |
Washer
|
|
| 14A. |
860950
|
[4] |
Adjusting screw
|
|
| 15. |
843299
|
[4] |
Rubber disc
|
|
| 16. |
955806
|
[8] |
Hexagon nut
|
|
| 17. |
941913
|
[4] |
Spring washer
|
|
| 18. |
978991
|
[2] |
Washer
|
D=40mm
|
| 19. |
955901
|
[2] |
Washer
|
D=34mm
|
| 20. |
978991
|
[4] |
Washer
|
D=40mm
|
