| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 420212-08035 | [-] | ||

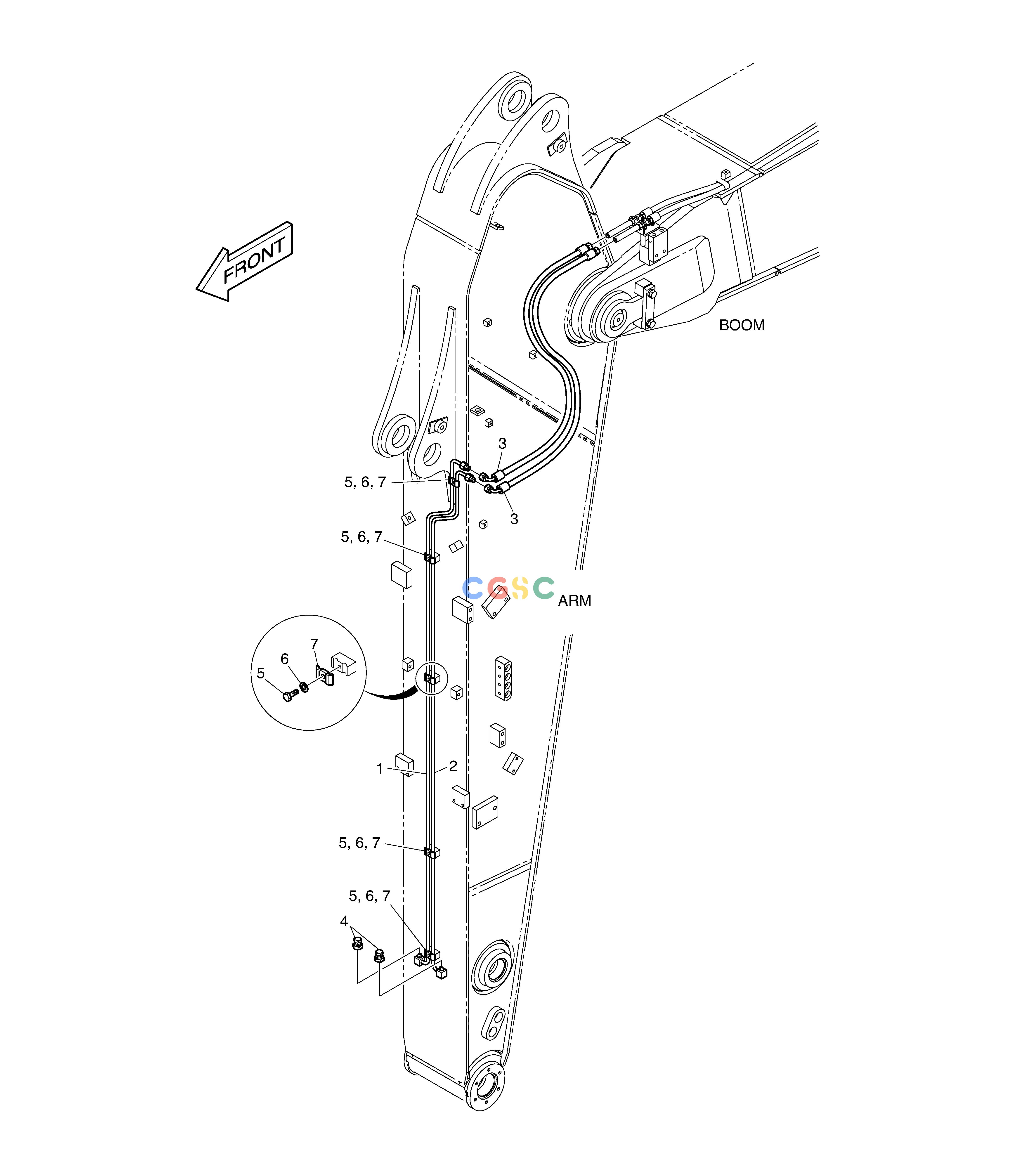

| -. | K1041933 | [-] | ARM PIPING-QUICK CLAMP | |
| 1. | K1001052 | [1] | PIPE | |
| 2. | K1001053 | [1] | PIPE | |
| 3. | DS2055866 | [2] | HOSE | |
| 4. | 2181-2820D1 | [2] | PLUG | |
| 5. | S0508866 | [5] | BOLT | |
| 6. | S5102503 | [5] | . WASHER | |
| 7. | K1004011 | [5] | CLAMP |
