| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

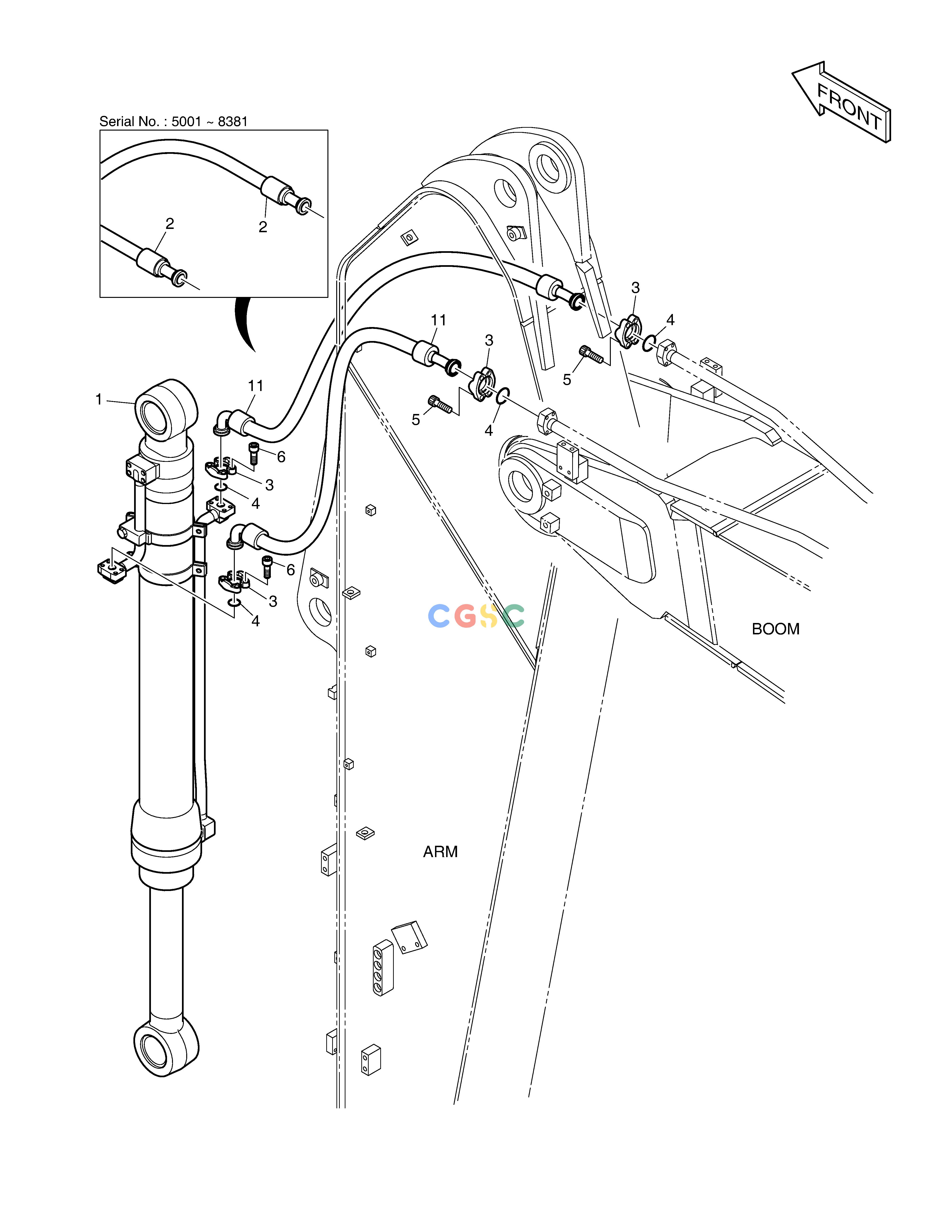

| -. | K1046332 | [-] | ARM PIPING | |
| -. | 420212-05430 | [-] | ||
| 1. | K1046333 | [1] | BUCKET CYLINDER | 400310-00216 |
| 1. | 400310-00216 | [1] | 400310-00216A | |
| 1. | 400310-00216A | [1] | 400310-00216B | |
| 1. | 400310-00216B | [1] | ||
| 1. | 400310-00326B | [1] | ||
| 11. | DS2130012 | [2] | ||
| 2. | DS2040488 | [2] | HOSE | DS2130012 |
| 3. | 2181-9079 | [8] | FLANGE | |
| 4. | 2180-1026D2 | [4] | O-RING | |
| 5. | S2212366 | [8] | BOLT | |
| 6. | S2212266 | [8] | BOLT |
