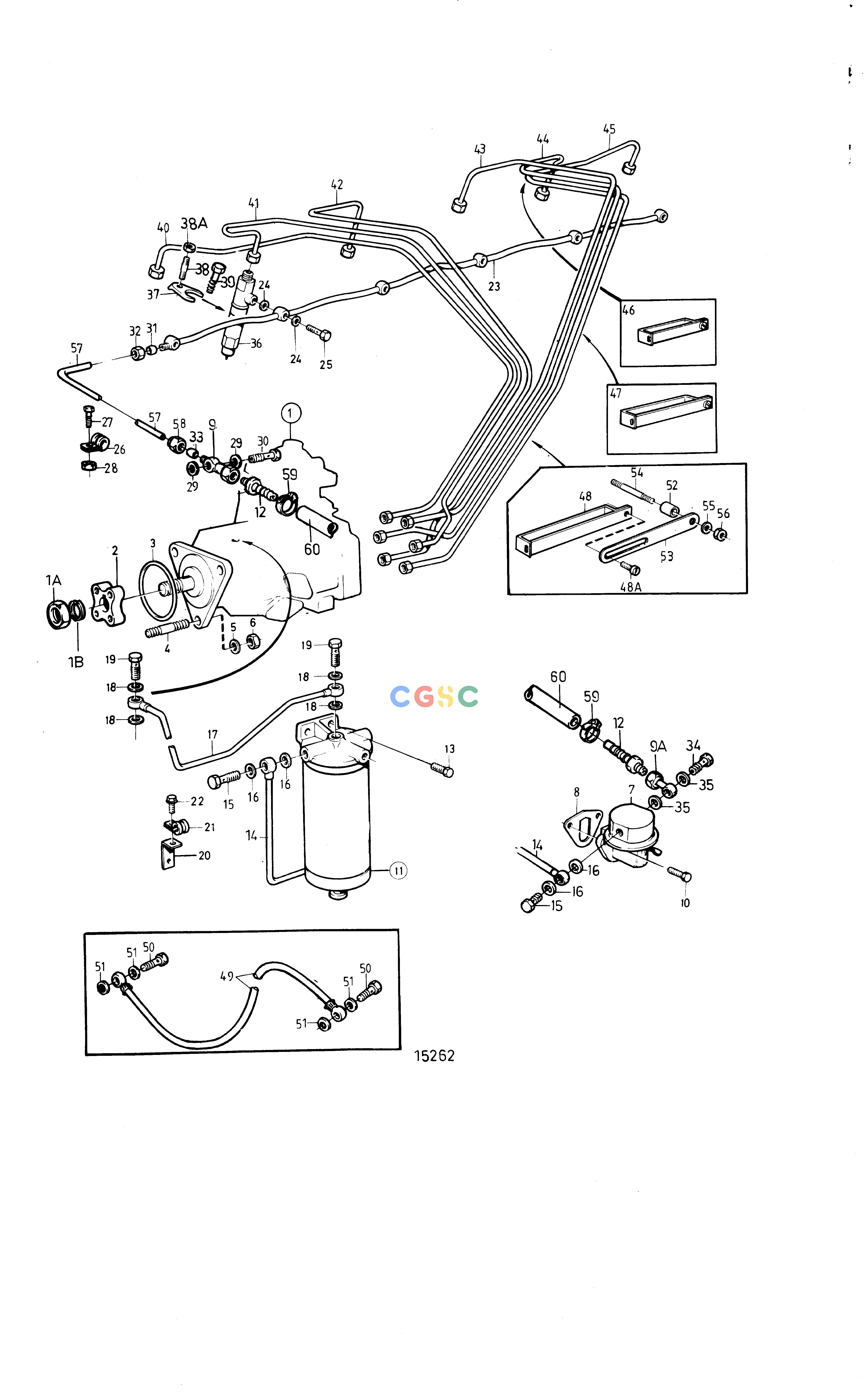

沃尔沃零件查询AD41D; D41D; TAMD41D; TMD41D; HS1AFuel SystemFuel System: CEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
327 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861102
|
[1] |
Injection pump
|
Produkt no. 868678, 868679, 868680, 868681.
|
| 1. |
861316
|
[1] |
Injection pump
|
Product no. 868683, 868684.
|
| 1A. |
|
|
|
Included in fuel injection pump.
|
| 1B. |
|
|
|
Included in fuel injection pump.
|
| 2. |
859601
|
[1] |
Hub
|
|
| 3. |
968971
|
[1] |
O-ring
|
|
| 4. |
953047
|
[3] |
Stud
|
|
| 5. |
191172
|
[3] |
Washer
|
|
| 6. |
968862
|
[3] |
Nut
|
|
| 7. |
860320
|
[1] |
Fuel pump
|
|
| 8. |
3501530
|
[1] |
Gasket
|
|
| 9. |
861080
|
[1] |
Banjo nipple
|
|
| 9A. |
861079
|
[1] |
Banjo nipple
|
|
| 10. |
946173
|
[2] |
Flange screw
|
|
| 11. |
860873
|
[1] |
Fuel filter
|
|
| 12. |
834781
|
[2] |
Nipple
|
|
| 13. |
973083
|
[2] |
Flange screw
|
|
| 14. |
860448
|
[1] |
Fuel pipe
|
|
| 15. |
969299
|
[2] |
Hollow screw
|
|
| 16. |
11994
|
[4] |
Gasket
|
|
| 17. |
838659
|
[1] |
Fuel pipe
|
|
| 18. |
11994
|
[4] |
Gasket
|
|
| 19. |
969299
|
[2] |
Hollow screw
|
|
| 20. |
846780
|
[1] |
Bracket
|
|
| 21. |
952624
|
[1] |
Clamp
|
|
| 22. |
946544
|
[1] |
Flange screw
|
|
| 23. |
838667
|
[1] |
Leak-off line
|
|
| 24. |
947620
|
[12] |
Gasket
|
|
| 25. |
74033
|
[6] |
Hollow screw
|
|
| 26. |
121563
|
[1] |
Clamp
|
|
| 27. |
946544
|
[1] |
Flange screw
|
|
| 28. |
945407
|
[1] |
Flange nut
|
|
| 29. |
11994
|
[2] |
Gasket
|
|
| 30. |
|
|
|
Included in fuel injection pump.
|
| 31. |
956966
|
[1] |
Ferrule
|
|
| 32. |
956980
|
[1] |
Fitting nut
|
|
| 33. |
956966
|
[1] |
Ferrule
|
|
| 34. |
969299
|
[1] |
Hollow screw
|
|
| 35. |
11994
|
[2] |
Gasket
|
|
| 36. |
861103
|
[6] |
Injector
|
|
| 36. |
3803238
|
[6] |
Injector
|
|
| 37. |
840402
|
[6] |
Yoke
|
|
| 38. |
924068
|
[6] |
Stud
|
Early type
|
| 38A. |
968862
|
[6] |
Nut
|
Early type
|
| 39. |
946470
|
[6] |
Flange screw
|
Later prod
|
| 40. |
861148
|
[1] |
Delivery pipe
|
Cyl no 1
|
| 41. |
838878
|
[1] |
Delivery pipe
|
Cyl no 2
|
| 42. |
861149
|
[1] |
Delivery pipe
|
Cyl no 3
|
| 43. |
838880
|
[1] |
Delivery pipe
|
Cyl no 4
|
| 44. |
838881
|
[1] |
Delivery pipe
|
Cyl no 5
|
| 45. |
838882
|
[1] |
Delivery pipe
|
Cyl no 6
|
| 46. |
470181
|
[2] |
Clamp
|
2-pipe
|
| 47. |
470182
|
[3] |
Clamp
|
3-pipe
|
| 48. |
470184
|
[1] |
Clamp
|
6-pipes
|
| 48A. |
956100
|
[1] |
Cross recessed screw
|
|
| 49. |
860131
|
[1] |
Air vent hose
|
|
| 50. |
74033
|
[2] |
Hollow screw
|
|
| 51. |
947620
|
[4] |
Gasket
|
|
| 52. |
833244
|
[1] |
Spacer sleeve
|
|
| 53. |
965534
|
[1] |
Bracket
|
|
| 54. |
17942
|
[1] |
Stud
|
|
| 55. |
968862
|
[1] |
Nut
|
|
| 56. |
941907
|
[1] |
Spring washer
|
|
| 57. |
860021
|
[1] |
Return line
|
|
| 58. |
956980
|
[1] |
Fitting nut
|
|
| 59. |
|
|
|
|
| 60. |
|
|
|
|
