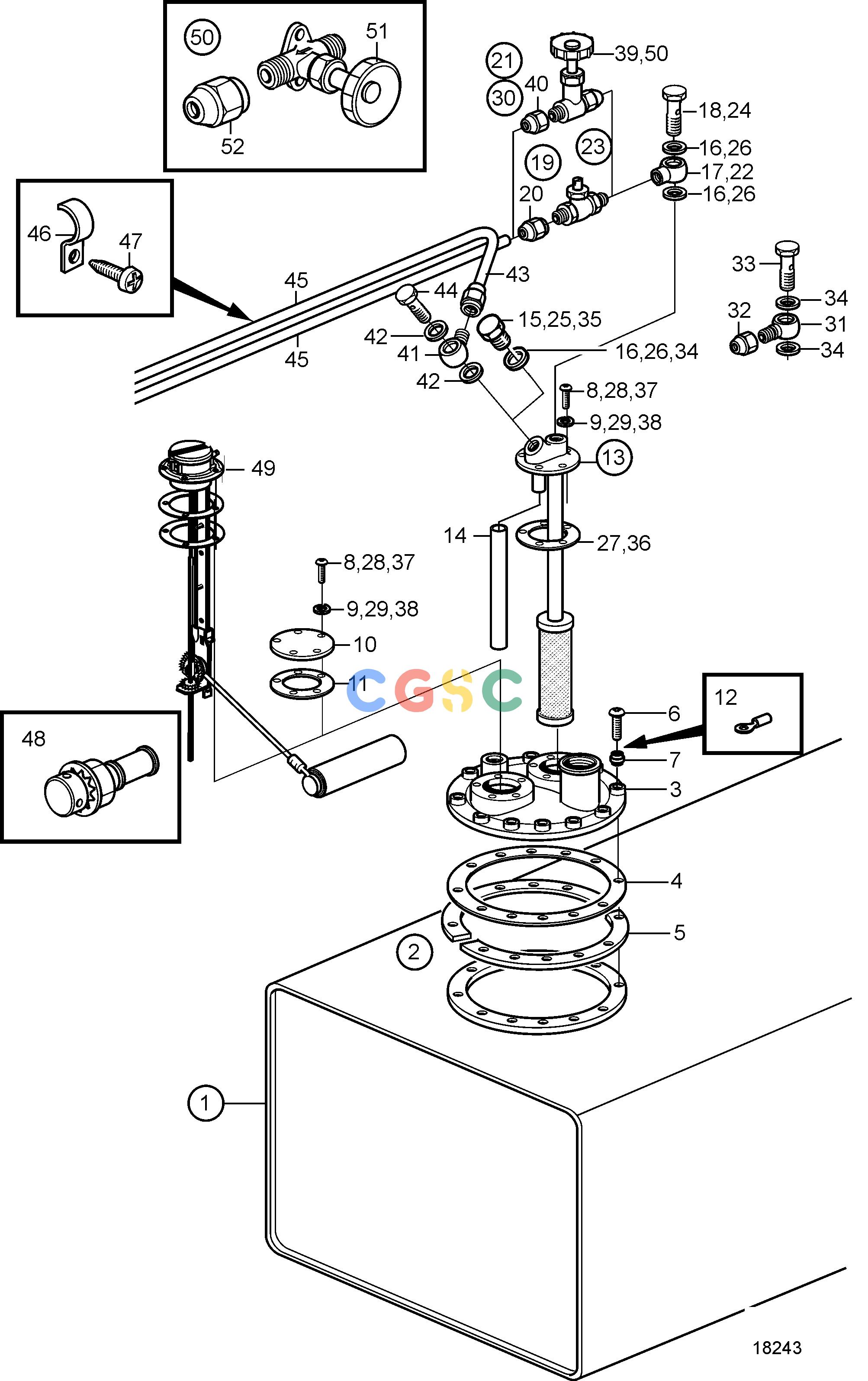

沃尔沃零件查询AD41D; D41D; TAMD41D; TMD41D; HS1AFuel SystemFuel Tank 40L, with ConnectionsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
841 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1140064
|
[1] |
Fuel tank
|
40L
|
| 2. |
1140063
|
[1] |
Cap
|
|
| 3. |
833799
|
[1] |
Cap
|
|
| 4. |
859064
|
[1] |
Gasket
|
|
| 5. |
828338
|
[1] |
Flange
|
|
| 6. |
956080
|
[12] |
Cross recessed screw
|
|
| 7. |
834481
|
[12] |
Gasket
|
|
| 8. |
969405
|
[10] |
Six point socket scr
|
|
| 9. |
941905
|
[10] |
Spring washer
|
|
| 10. |
833801
|
[1] |
Cap
|
|
| 11. |
89865
|
[1] |
Gasket
|
|
| 12. |
881493
|
[1] |
Cable terminal
|
|
| 13. |
828341
|
[1] |
Suction pipe
|
L=242mm
|
| 13. |
828372
|
[1] |
Suction pipe
|
L=333mm
|
| 13. |
828373
|
[1] |
Suction pipe
|
L=458mm
|
| 14. |
941279
|
[1] |
Hose
|
|
| 15. |
191830
|
[1] |
Plug
|
|
| 16. |
957178
|
[3] |
Gasket
|
|
| 17. |
833857
|
[1] |
Banjo nipple
|
|
| 18. |
25167
|
[1] |
Hollow screw
|
|
| 19. |
803684
|
[1] |
Shut-off cock
|
|
| 20. |
954322
|
[1] |
Fitting nut
|
|
| 21. |
828375
|
[1] |
Connecting kit
|
5/16''
|
| 22. |
833857
|
[1] |
Banjo nipple
|
|
| 23. |
803684
|
[1] |
Shut-off cock
|
5/16''
|
| 24. |
25167
|
[1] |
Hollow screw
|
|
| 25. |
191830
|
[1] |
Plug
|
|
| 26. |
957178
|
[3] |
Gasket
|
|
| 27. |
89865
|
[1] |
Gasket
|
|
| 28. |
969405
|
[10] |
Six point socket scr
|
(956076)
|
| 29. |
941905
|
[10] |
Spring washer
|
|
| 30. |
828376
|
[1] |
Connecting kit
|
3/8''
|
| 31. |
191600
|
[1] |
Banjo nipple
|
|
| 32. |
954323
|
[1] |
Fitting nut
|
|
| 33. |
25167
|
[1] |
Hollow screw
|
|
| 34. |
957178
|
[3] |
Gasket
|
|
| 35. |
191830
|
[1] |
Plug
|
|
| 36. |
89865
|
[1] |
Gasket
|
|
| 37. |
969405
|
[10] |
Six point socket scr
|
(956076)
|
| 38. |
941905
|
[10] |
Spring washer
|
|
| 39. |
841523
|
[1] |
Faucet
|
3/8''
|
| 40. |
954323
|
[2] |
Fitting nut
|
|
| 41. |
1140724
|
[1] |
Level guard
|
Replaced by 1pc banjo nipple 861101, 1pc nipple 190962 and 1pc cap nut
|
| 42. |
957178
|
[2] |
Gasket
|
|
| 43. |
807061
|
[1] |
Cap nut
|
|
| 44. |
25167
|
[1] |
Hollow screw
|
|
| 45. |
954305
|
[1] |
Tube
|
5/16''
|
| 45. |
954307
|
[1] |
Tube
|
Replaced by 1140062
|
| 45. |
1140062
|
[1] |
Copper tube
|
3/8''
|
| 46. |
951189
|
[1] |
Clamp
|
|
| 47. |
968476
|
[1] |
Flange screw
|
|
| 48. |
1144037
|
[1] |
Tank valve
|
|
| 49. |
7746620_108
|
|
Tank gauge
|
|
| 50. |
838418
|
[1] |
Fuel tap
|
3/8''
|
| 51. |
841523
|
[1] |
Faucet
|
|
| 52. |
954323
|
[2] |
Fitting nut
|
|
