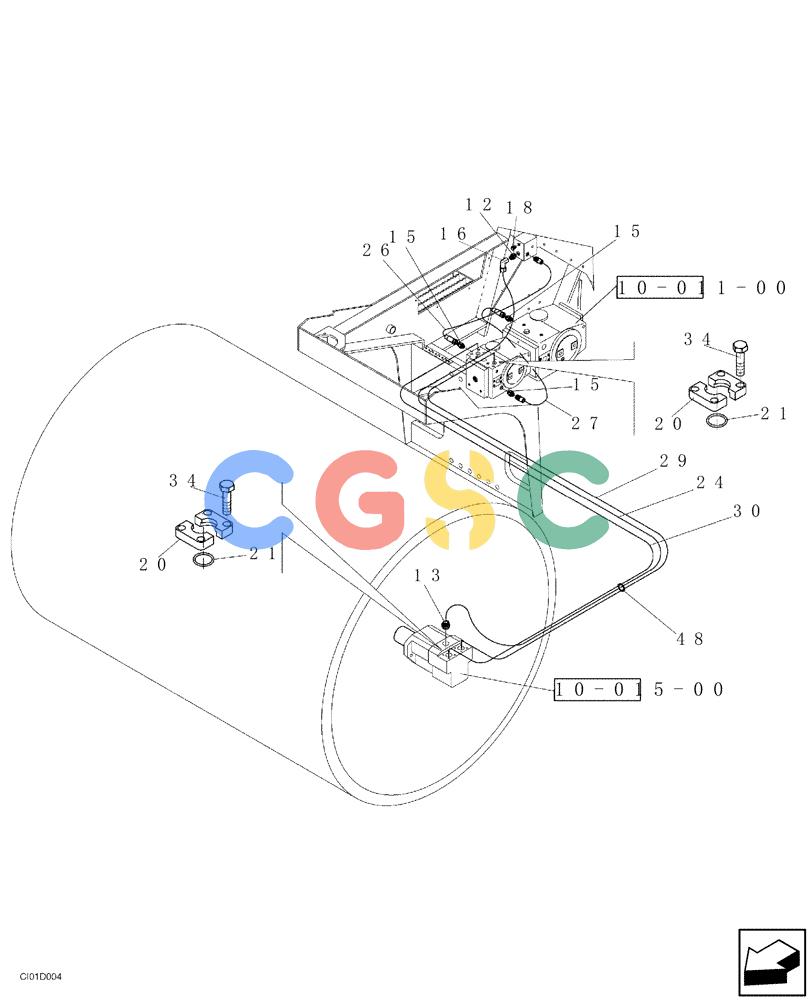

纽荷兰零件查询(CV1500) - VIBRATORY ROLLER (7/01-) (10-002-00[01]) - HYDRAULIC CIRCUIT - VIBRATION New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
122 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 12. | ND062109 | [1] | HYD CONNECTOR | STA |
| 13. | ND062181 | [1] | HYD CONNECTOR | STA |
| 15. | ND062135 | [3] | HYD CONNECTOR | STA |
| 16. | ND062367 | [1] | HYD CONNECTOR | STA |
| 18. | ND062378 | [1] | PLUG | STA |
| 20. | ND062009 | [8] | FLANGE | STA |
| 21. | ND079934 | [2] | O-RING | STA |
| 24. | ND061515 | [1] | FLEXIBLE HOSE | STA3650mm |
| 26. | ND061516 | [1] | HOSE,550.00 mm | STA |
| 27. | ND061517 | [1] | HOSE,750.00 mm | STA |
| 29. | ND061542 | [1] | HOSE | STA |
| 30. | ND104950 | [1] | FLEXIBLE HOSE | STA |
| 34. | ND034063 | [16] | BOLT | STA |
| 48. | ND106910 | [10] | STRAP | STA370mm |
