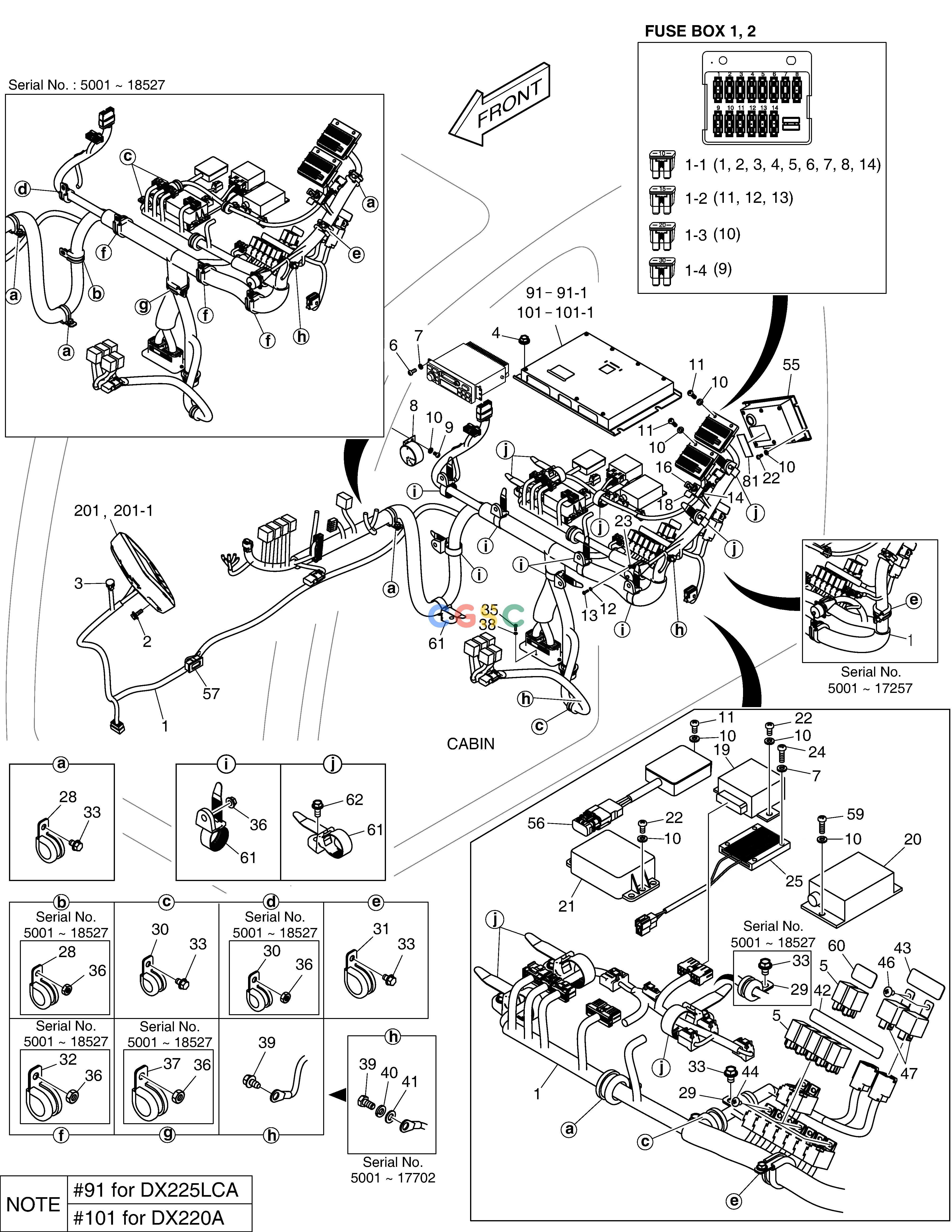

斗山零件查询ELECTRIC PARTS - CABIN(ROPS) DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
549 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-02810C
|
[-] |
|
|
| -. |
300619-02810E
|
[-] |
|
|
| -. |
300619-02810H
|
[-] |
|
|
| -. |
300619-02810K
|
[-] |
|
|
| -. |
300619-02810M
|
[-] |
|
|
| 1. |
310207-03552A
|
[1] |
|
310207-03552B
|
| 1. |
310207-03552B
|
[1] |
|
|
| 1. |
310207-03552C
|
[1] |
|
|
| 1. |
310207-03552E
|
[1] |
|
310207-03552G
|
| 1. |
310207-03552G
|
[1] |
|
|
| 1-1. |
2527-1016
|
[16] |
FUSE,BLADE 10A
|
|
| 1-2. |
2527-1017
|
[6] |
FUSE,BLADE 15A
|
|
| 1-3. |
2527-1018
|
[4] |
FUSE,BLADE 20A
|
|
| 1-4. |
2527-1025
|
[2] |
FUSE,BLADE 30A
|
|
| 10. |
S5102303
|
[17] |
. WASHER
|
|
| 101. |
300611-00833A
|
[1] |
|
300611-00833B
|
| 101. |
300611-00833B
|
[1] |
|
|
| 101-1. |
970306-00210
|
[1] |
|
|
| 11. |
S3450983
|
[5] |
SCREW
|
|
| 12. |
S5100003
|
[4] |
WASHER
|
|
| 13. |
S3450343
|
[4] |
SCREW
|
|
| 14. |
549-00090A
|
[1] |
SWITCH,TOGGLE
|
|
| 16. |
K1004427
|
[1] |
PLATE,NAME
|
|
| 18. |
K1004426
|
[1] |
PLATE,NAME
|
|
| 19. |
300611-00271A
|
[1] |
CONTROLLER,WIPER
|
|
| 2. |
DS0025056
|
[4] |
BOLT
|
|
| 20. |
300612-00001B
|
[1] |
|
|
| 201. |
300426-00174A
|
[1] |
|
|
| 201. |
300426-00174B
|
[1] |
PANEL ASSY,GAUGE
|
|
| 201-1. |
970304-00004
|
[1] |
|
|
| 21. |
300611-00704
|
[1] |
CONTROLLER,STARTER
|
|
| 22. |
S3450953
|
[8] |
SCREW
|
|
| 23. |
310207-00708
|
[1] |
HARNESS
|
|
| 24. |
S3450863
|
[2] |
SCREW
|
|
| 25. |
545-00011
|
[1] |
RESISTOR,AUXILIARY
|
|
| 28. |
124-00208D4
|
[2] |
CLIP
|
|
| 28. |
124-00208D4
|
[5] |
CLIP
|
|
| 29. |
124-00208D2
|
[1] |
CLAMP
|
|
| 29. |
124-00208D2
|
[2] |
CLAMP
|
|
| 3. |
547-00023
|
[1] |
SENSOR
|
|
| 30. |
124-00208D3
|
[2] |
CLIP
|
|
| 30. |
124-00208D3
|
[5] |
CLIP
|
|
| 31. |
124-00208D5
|
[2] |
CLIP
|
|
| 31. |
124-00208D5
|
[1] |
CLIP
|
|
| 31. |
124-00208D5
|
[3] |
CLIP
|
|
| 32. |
124-00208D6
|
[3] |
CLIP
|
|
| 33. |
K1001029
|
[11] |
BOLT
|
|
| 33. |
K1001029
|
[5] |
BOLT
|
|
| 33. |
K1001029
|
[12] |
BOLT
|
|
| 35. |
S3450603
|
[4] |
SCREW M4X0.7X16
|
|
| 36. |
2121-1305
|
[6] |
NUT
|
|
| 37. |
124-00208D7
|
[1] |
CLIP
|
|
| 38. |
S5102103
|
[4] |
WASHER
|
|
| 39. |
120106-00702
|
[2] |
BOLT
|
|
| 39. |
S0508653
|
[2] |
BOLT
|
|
| 4. |
D913109
|
[4] |
|
|
| 40. |
S5102503
|
[2] |
. WASHER
|
|
| 41. |
S5010513
|
[2] |
WASHER
|
|
| 42. |
950209-05930
|
[1] |
|
|
| 42. |
K1052850D28
|
[1] |
|
|
| 43. |
190-01192D26
|
[1] |
|
|
| 44. |
2120-2166D53
|
[3] |
. SCREW
|
|
| 46. |
2120-2166D52
|
[2] |
. BOLT
|
|
| 47. |
301202-00042
|
[2] |
RELAY
|
|
| 5. |
K1053326
|
[7] |
RELAY
|
|
| 55. |
300611-00138
|
[1] |
|
|
| 56. |
300619-02309A
|
[1] |
ELECTRIC UNIT,TIME DELAY
|
|
| 57. |
800224-00011
|
[1] |
METER,HOUR
|
|
| 59. |
S3450973
|
[2] |
SCREW M6X1.0X16
|
|
| 6. |
S3450833
|
[4] |
BOLT
|
|
| 60. |
K1052850D45
|
[1] |
|
|
| 61. |
120402-00439
|
[12] |
CLIP
|
|
| 62. |
120106-00596
|
[5] |
BOLT
|
|
| 7. |
S5100203
|
[6] |
WASHER
|
|
| 8. |
2516-1116
|
[1] |
BUZZER
|
|
| 81. |
K1003113D4
|
[1] |
PLATE;NAME
|
|
| 81. |
950209-05864
|
[1] |
|
|
| 9. |
S3450943
|
[2] |
SCREW
|
|
| 91. |
300611-00783A
|
[1] |
|
300611-00783B
|
| 91. |
300611-00783B
|
[1] |
|
|
| 91-1. |
970306-00073
|
[1] |
|
|
