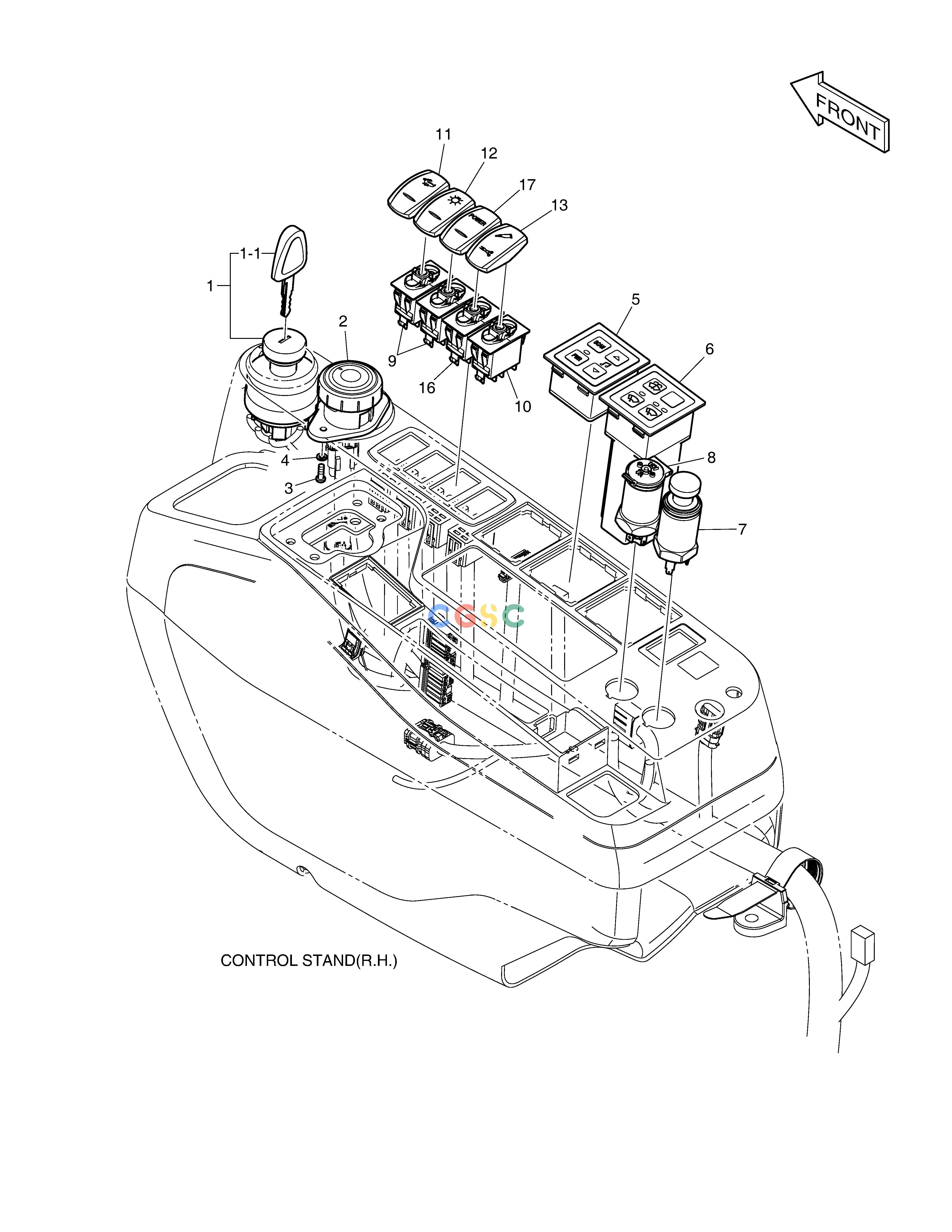

斗山零件查询ELECTRIC PARTS - CONTROL STAND(ROPS) DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
590 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-02692
|
[-] |
|
|
| 1. |
K1001858A
|
[1] |
SWITCH;STARTER
|
|
| 1-1. |
K1009605A
|
[2] |
KEY;STARTER
|
|
| 10. |
K1006572
|
[1] |
SWITCH,BREAKER/SHEAR
|
|
| 11. |
301401-00008
|
[1] |
|
|
| 12. |
K1056625
|
[1] |
|
|
| 13. |
301401-00017
|
[1] |
|
|
| 16. |
K1056448
|
[1] |
SWITCH,DETENT SET
|
|
| 17. |
301401-00031
|
[1] |
|
|
| 2. |
300661-00004
|
[1] |
DIAL,ENGINE CONTROL
|
|
| 3. |
S3450583
|
[2] |
SCREW
|
|
| 4. |
S5100103
|
[2] |
WASHER
|
|
| 5. |
543-00096
|
[1] |
RADIO CONTROL PANEL ASSY
|
|
| 6. |
543-00095
|
[1] |
PANEL ASS`Y,WIPER CONTROL
|
|
| 7. |
300730-00006
|
[1] |
LIGHTER,CIGAR
|
|
| 8. |
K1053423
|
[1] |
|
|
| 9. |
549-00103
|
[2] |
SWITCH
|
|
