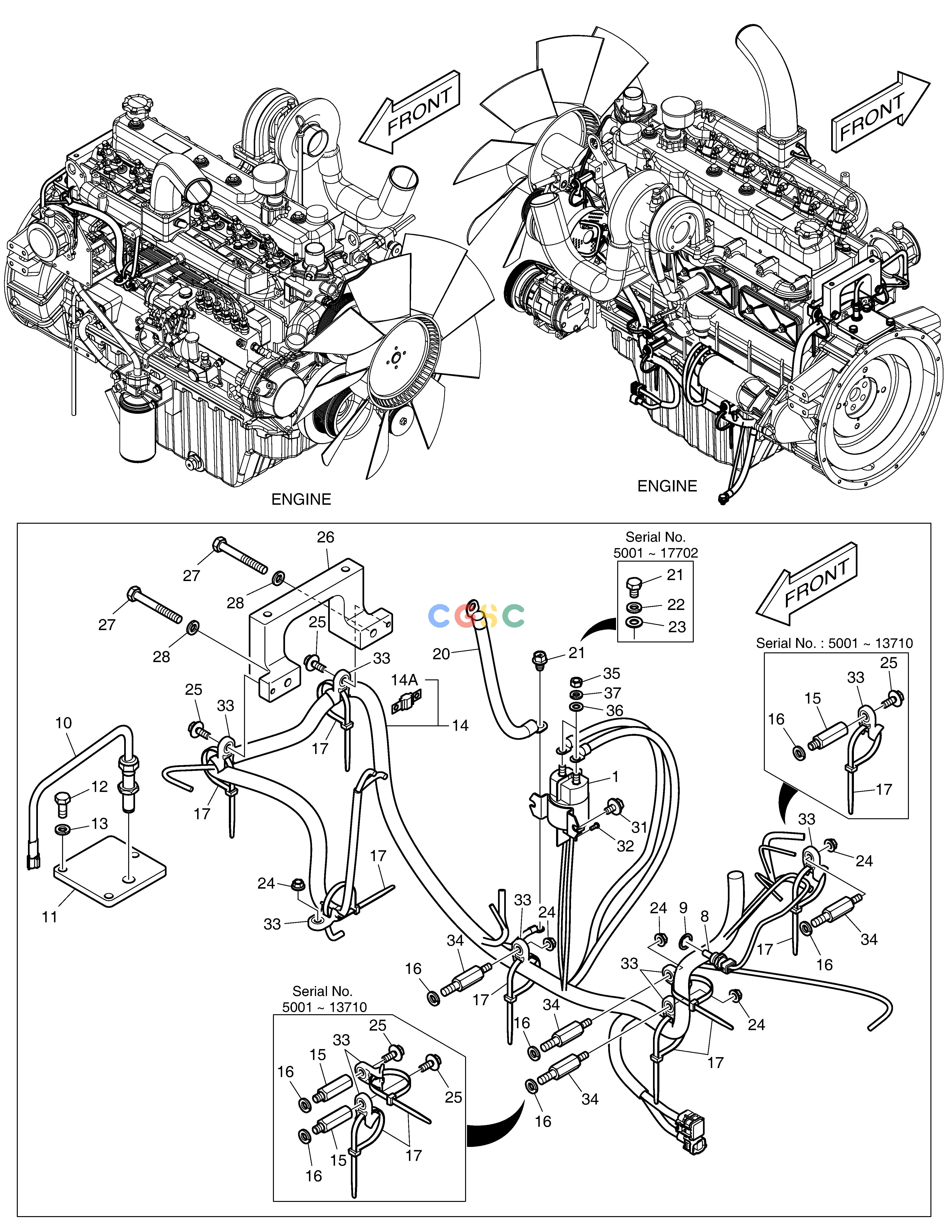

斗山零件查询ELECTRIC PARTS - ENGINE(ALTERNATOR - 50A) DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
488 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-01900
|
[-] |
|
|
| 1. |
301202-00067
|
[1] |
RELAY,PRE HEATER
|
|
| 10. |
2547-1015
|
[1] |
SENSOR;ENG SPEED
|
|
| 11. |
2197-1793
|
[1] |
BRACKET
|
|
| 12. |
S0512066
|
[3] |
. BOLT
|
|
| 13. |
S5102603
|
[3] |
. WASHER
|
|
| 14. |
310207-02450
|
[1] |
|
|
| 14. |
310207-02450A
|
[1] |
|
|
| 14A. |
300803-00086
|
[1] |
|
|
| 15. |
DS0026006
|
[3] |
|
|
| 16. |
S5102603
|
[4] |
. WASHER
|
|
| 17. |
310101-00035
|
[7] |
TIE,CABLE
|
|
| 20. |
553-00001D4
|
[1] |
CABLE;E/G EARTH
|
|
| 21. |
S0511653
|
[1] |
BOLT
|
|
| 21. |
120106-00701
|
[1] |
BOLT
|
|
| 22. |
S5102603
|
[1] |
. WASHER
|
|
| 23. |
S5010613
|
[1] |
WASHER
|
|
| 24. |
2121-1305
|
[2] |
NUT
|
|
| 24. |
2121-1305
|
[5] |
NUT
|
|
| 25. |
DS0025049
|
[5] |
BOLT M8x1.25x25
|
|
| 25. |
DS0025049
|
[2] |
BOLT M8x1.25x25
|
|
| 26. |
K1010584
|
[1] |
BLOCK
|
|
| 27. |
S0759166
|
[2] |
BOLT
|
|
| 28. |
S5102603
|
[2] |
. WASHER
|
|
| 31. |
DS0025033
|
[2] |
BOLT
|
|
| 32. |
S3450573
|
[2] |
SCREW
|
|
| 33. |
110420-00330
|
[7] |
BRACKET
|
|
| 34. |
120117-00071
|
[1] |
|
|
| 34. |
120117-00155
|
[4] |
|
|
| 35. |
S4012533
|
[2] |
NUT
|
|
| 36. |
S5010513
|
[2] |
WASHER
|
|
| 37. |
S5102503
|
[2] |
. WASHER
|
|
| 8. |
2547-9038B
|
[1] |
SENSOR,WATER TEMP
|
|
| 9. |
S8180251
|
[1] |
PACKING
|
|
