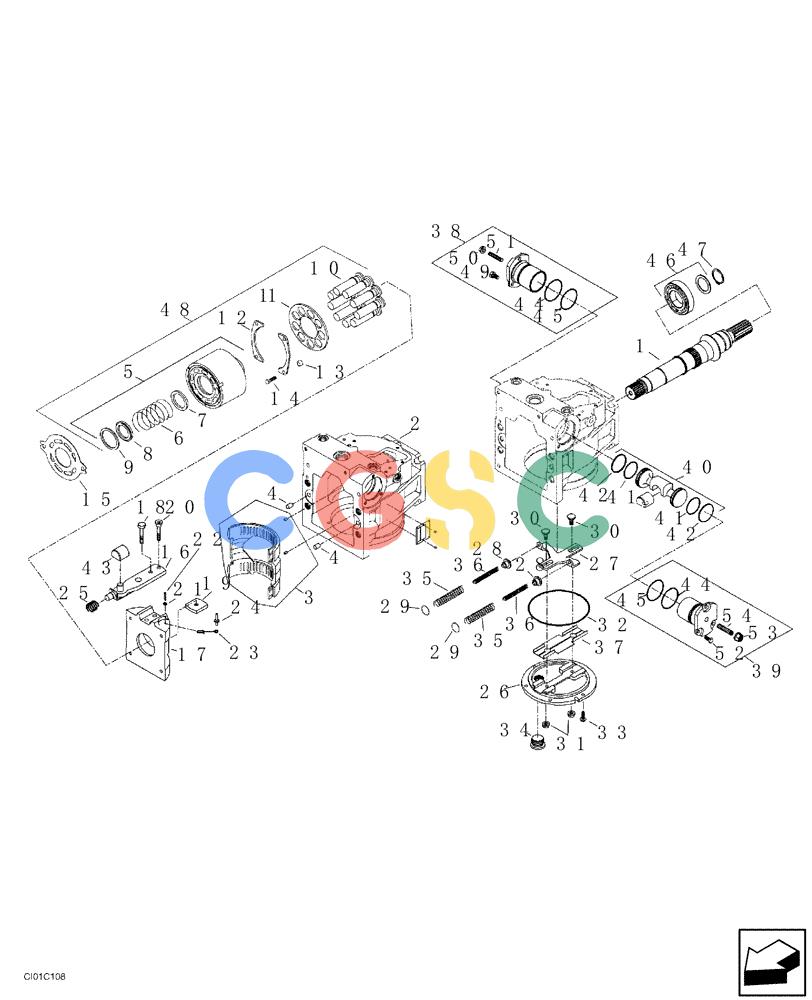

纽荷兰零件查询(CV1500) - VIBRATORY ROLLER (7/01-) (10-013-01[01]) - HYDRAULIC PUMP - VIBRATIONS - ROTOR New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
970 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND102580 | [1] | SHAFT | STA |
| 2. | ND102595 | [1] | BOX | STA |
| 3. | ND102582 | [2] | BEARING | STA |
| 4. | ND102656 | [1] | PIN | STA |
| 5. | ND102581 | [1] | CYLINDER BLOCK | STA |
| 6. | ND102574 | [1] | SPRING | STA |
| 7. | ND102575 | [1] | SPRING | STA |
| 8. | ND102578 | [1] | SPRING CUP | STA |
| 9. | ND102665 | [9] | RING | STA |
| 10. | ND102358 | [2] | PISTON | STA |
| 11. | ND102573 | [2] | PLATE | STA |
| 12. | ND102584 | [2] | PLATE | STA |
| 13. | ND102604 | [4] | SPACER | STA |
| 14. | ND102488 | [4] | SCREW | STA |
| 15. | ND102417 | [1] | LOCK CYLINDER | STA |
| 16. | ND102593 | [1] | LEVER | STA |
| 17. | ND102588 | [1] | THRUST PLATE | STA |
| 18. | ND102672 | [1] | SCREW | STA |
| 19. | ND102634 | [1] | THRUST PLATE | STA |
| 20. | ND102677 | [1] | SCREW | STA |
| 21. | ND102681 | [1] | WASHER | STA |
| 22. | ND102657 | [1] | PIN | STA |
| 23. | ND102613 | [1] | CONNECTING LINK | STA |
| 24. | ND102638 | [1] | PIN | STA |
| 25. | ND102611 | [1] | SPRING | STA |
| 26. | ND102597 | [1] | COVER | STA |
| 27. | ND102579 | [1] | LEVER | STA |
| 28. | ND102348 | [2] | SPRING | STA |
| 29. | ND102641 | [2] | WASHER | STA |
| 30. | ND102600 | [2] | GUIDE | STA |
| 31. | ND102644 | [2] | NUT | STA |
| 32. | ND102652 | [1] | O-RING | STA |
| 33. | ND102366 | [6] | SCREW | STA |
| 34. | ND102662 | [1] | PLUG | STA |
| 35. | ND102587 | [2] | SPRING | STA |
| 36. | ND102589 | [2] | SPRING | STA |
| 37. | ND102471 | [1] | GUIDE | STA |
| 38. | ND102606 | [1] | COVER | STA |
| 40. | ND102429 | [1] | PISTON | STA |
| 41. | ND102647 | [2] | O-RING | STA |
| 42. | ND102622 | [2] | PISTON RING | STA |
| 43. | ND102635 | [1] | BLOCK | STA |
| 44. | ND102650 | [2] | O-RING | STA |
| 45. | ND102648 | [2] | O-RING | STA |
| 46. | ND102367 | [1] | BALL BEARING | STA Superseded by part number: 379438R91 |
| 47. | ND102666 | [1] | SNAP RING | STA |
| 48. | ND102605 | [1] | PISTON ASSY | STA |
| 49. | ND102667 | [3] | SCREW | STA |
| 51. | ND102678 | [1] | SCREW | STA |
