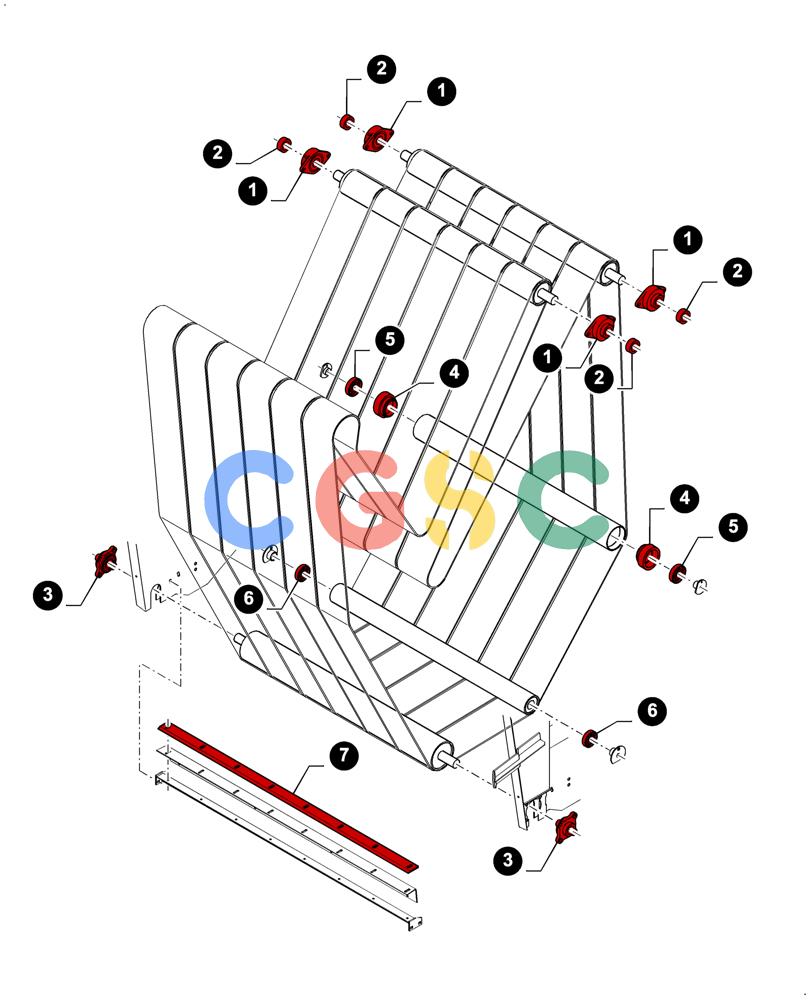

凯斯零件查询(RB454) - CASE IH ROUND BALER (7/07-1/14) (00.00RB218) - MAINTENANCE PARTS, TAILGATE ROLLS Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
666 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86590751
|
[4] |
BEARING ASSY,40mm ID
|
NH
Tailgate top rolls, (2) Superseded by part number: 87660576
|
| 2. |
563733
|
[1] |
COLLAR
|
ZED
Lock
|
| 3. |
86590753
|
[2] |
BEARING ASSY
|
NH
1.575" ID, Tailgate nose roll
|
| 4. |
86500662
|
[2] |
BEARING ASSY
|
NH
Tailgate middle roll
|
| 5. |
9845576
|
[2] |
BALL BEARING,38.1mm ID x 80mm OD x 22mm W
|
NH
Tailgate middle roll Superseded by part number: 84330072
|
| 7. |
87028677
|
[1] |
SCRAPER
|
PA
Blade, Loop roll
|
