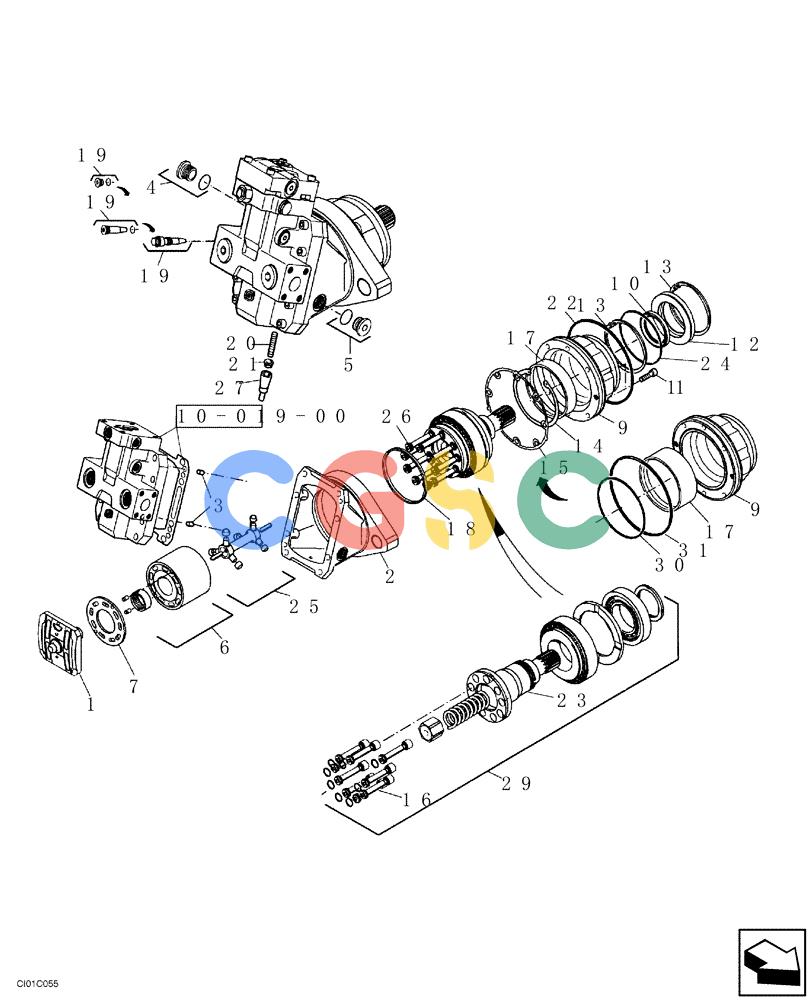

纽荷兰零件查询(CV1500) - VIBRATORY ROLLER (7/01-) (10-018-00[01]) - TRAVEL MOTOR - DRUM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
552 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | ND090920 | [1] | HYDRAULIC MOTOR | STA |
| 1. | ND102414 | [1] | COVER | STA |
| 2. | ND102461 | [1] | BOX | STA |
| 3. | ND102301 | [2] | PIN | STA |
| 4. | ND102493 | [1] | PLUG | STA |
| 6. | ND102351 | [1] | BLOCK | STA |
| 7. | ND102473 | [1] | PLATE | STA |
| 9. | ND102463 | [1] | HOUSING | STA |
| 10. | ND102500 | [1] | SEAL | STA |
| 11. | ND102527 | [8] | BOLT | STA |
| 12. | ND102544 | [1] | SEAL | STA |
| 13. | ND102362 | [2] | SNAP RING | STA |
| 14. | ND102359 | [1] | SNAP RING | STA |
| 15. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 16. | ND102563 | [9] | PISTON RING | STA |
| 17. | ND102374 | [1] | SPACER | STA |
| 18. | ND102569 | [1] | RING | STA |
| 19. | ND102459 | [1] | SENSOR | STA |
| 20. | ND102551 | [1] | ADJUSTMENT SCREW | STA |
| 21. | ND102306 | [1] | LOCK NUT | STA |
| 22. | ND102384 | [1] | O-RING | STA |
| 24. | ND102382 | [1] | O-RING | STA |
| 25. | ND102562 | [1] | SHAFT | STA |
| 27. | ND102561 | [1] | SEAL | STA |
| 29. | ND102467 | [1] | SHAFT | STA |
| 30. | ND102462 | [1] | O-RING | STA |
| . . | ND102437 | [1] | SEAL KIT | STA |
