纽荷兰零件查询(CV1500) - VIBRATORY ROLLER (7/01-) (12-001-01[01]) - SOUNDPROOFING (CV1100) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
245 次

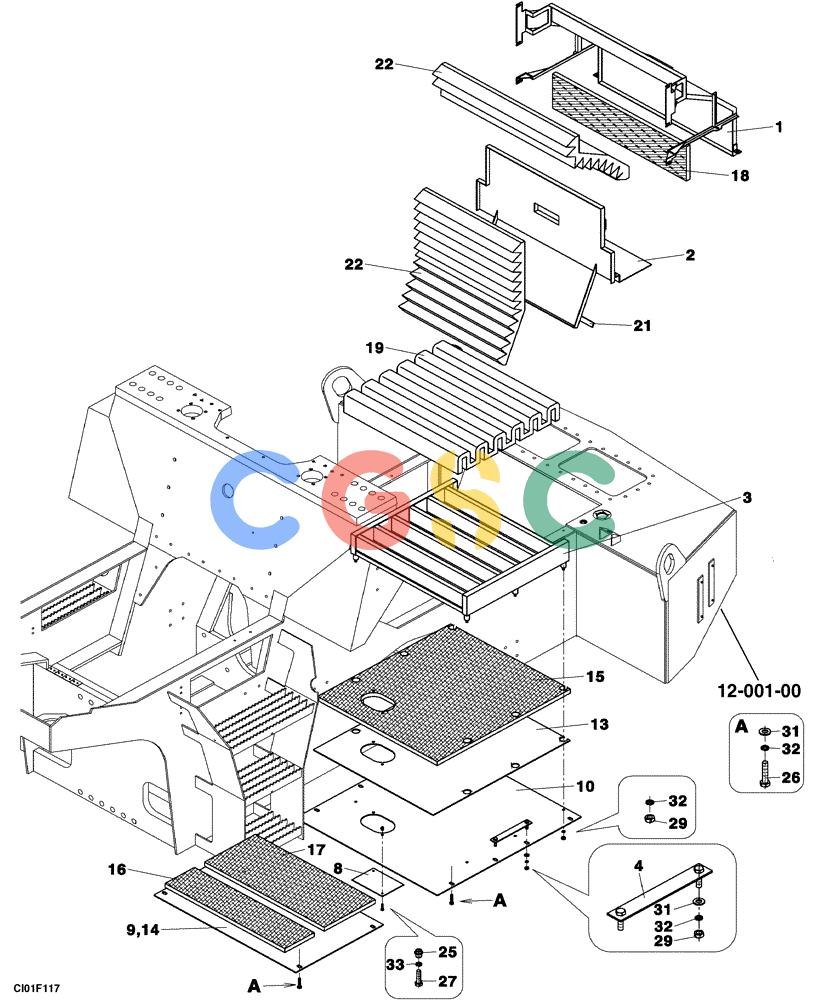

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND103328 | [1] | PANEL | STA |
| 2. | ND103329 | [1] | PANEL | STA |
| 3. | ND103330 | [1] | BLOCK | STA |
| 4. | ND103341 | [2] | CLAMP | STA |
| 8. | ND103342 | [1] | COVER | STA |
| 9. | ND103335 | [1] | PANEL | STA |
| 10. | ND103336 | [1] | PANEL | STA |
| 13. | ND103343 | [2] | INSULATOR | STA |
| 14. | ND103350 | [2] | INSULATOR | STA3 x 490 x 670 |
| 15. | ND103344 | [1] | INSULATOR | STA |
| 16. | ND103349 | [1] | INSULATOR | STA20 x 165 x 670 |
| 17. | ND103351 | [1] | INSULATOR | STA20 x 285 x 670 |
| 18. | ND103347 | [1] | FOAM | STA20 x 175 x750 |
| 19. | ND103348 | [1] | INSULATOR | STA20 x 640 x 1270 |
| 20. | ND103352 | [1] | BAND | STA550 mm |
| 22. | ND079141 | [3] | INSULATOR | STA |
| 25. | ND069950 | [2] | RIVET | STAM6 x 16 |
| 26. | ND021295 | [8] | BOLT | STAM8 x 25 |
| 27. | ND021289 | [2] | BOLT | STAM6 x 20 |
| 29. | ND021848 | [10] | NUT | STAM8 Superseded by part number: ND034087 |
| 31. | ND029285 | [12] | WASHER | STAID 9 |
| 32. | ND035940 | [18] | SPRING WASHER | STAID 8 |
| 33. | ND029309 | [2] | SPRING WASHER | STAID 6,1 |
