| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

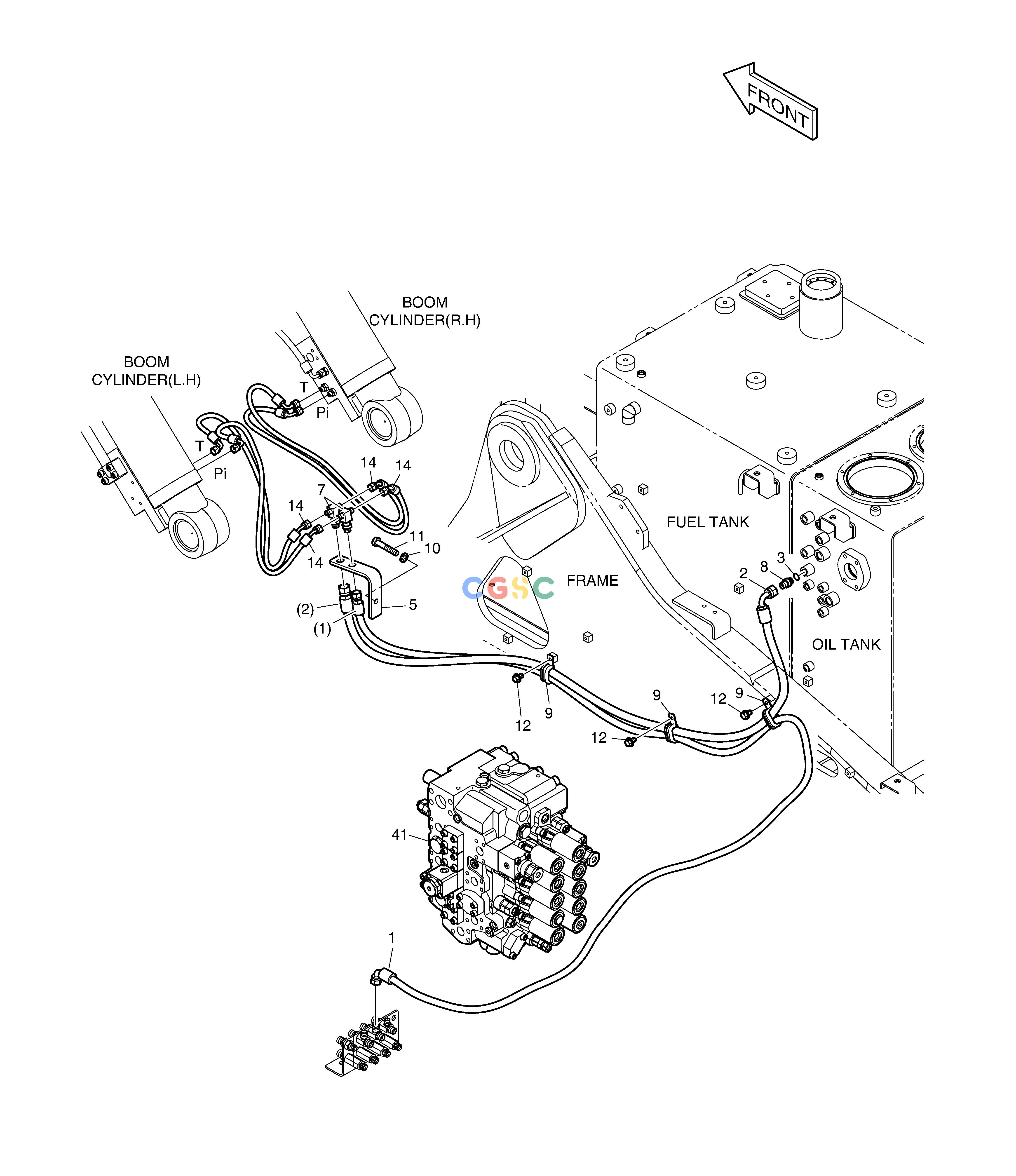

| -. | K1044690 | [-] | LOCK VALVE PIPING;BOOM | |
| 1. | DS2093438 | [1] | HOSE | |
| 10. | S5102703 | [1] | WASHER | |
| 11. | S0561066 | [1] | BOLT | |
| 12. | K1001029 | [3] | BOLT | |
| 14. | DS2090009 | [4] | HOSE | |
| 2. | DS2093104 | [1] | HOSE | |
| 3. | S8000141 | [1] | O-RING | |
| 41. | K1044591 | [1] | VALVE;CONTROL | |
| 5. | K1000140A | [1] | PLATE | |
| 7. | 181-00008 | [2] | TEE | |
| 8. | 2181-1126D7 | [1] | ADAPTER | |
| 9. | 124-00209D1 | [3] | CLIP |
