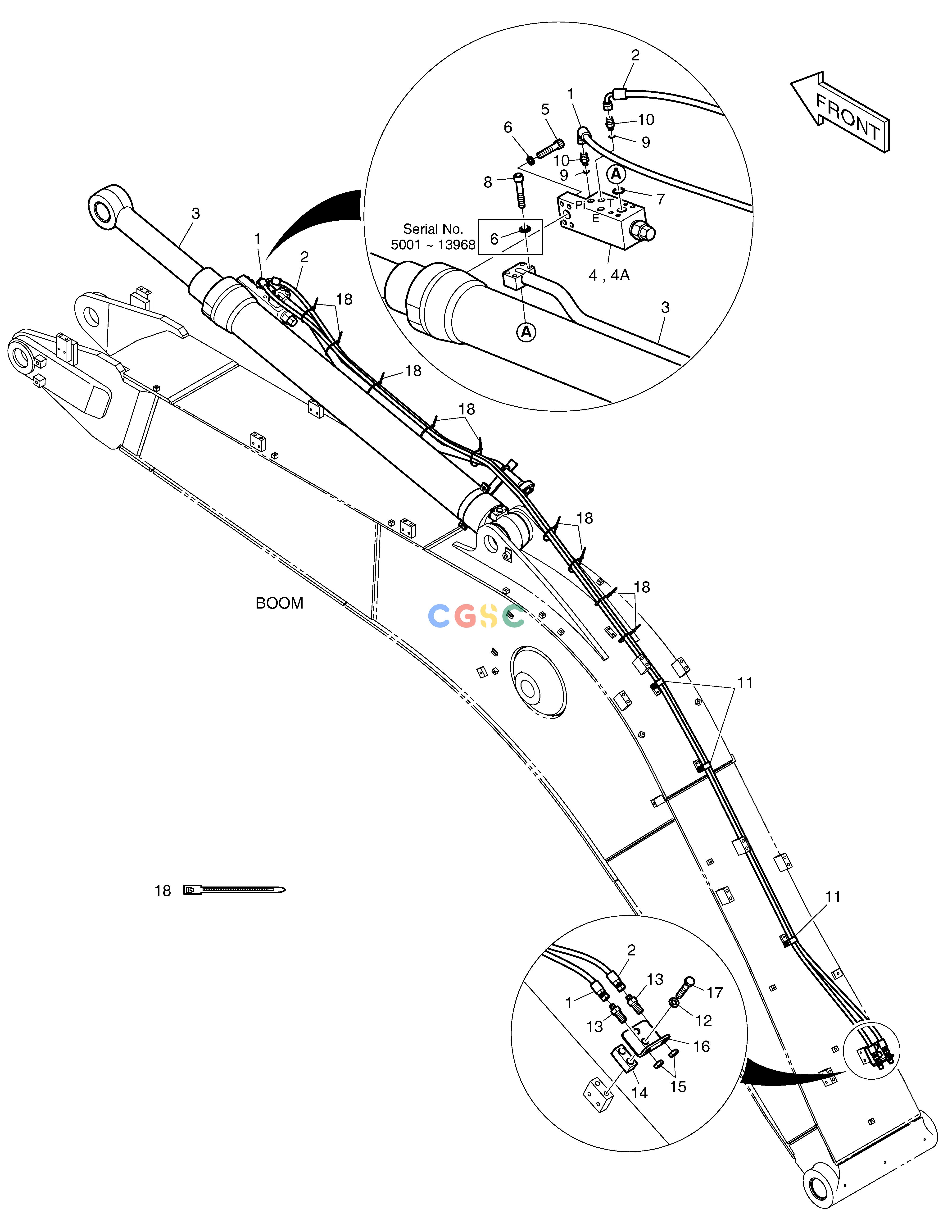

斗山零件查询LOCK VALVE PIPING - BOOM 5.2m DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
1004 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1046041A
|
[-] |
LOCK VALVE PIPING;ARM
|
|
| -. |
420212-07349
|
[-] |
|
|
| 1. |
DS2055672
|
[1] |
HOSE
|
|
| 10. |
2181-1126D85
|
[2] |
ADAPTER
|
|
| 11. |
DS2805009
|
[3] |
CLIP
|
|
| 12. |
S5102803
|
[2] |
WASHER
|
|
| 13. |
181-00078D1
|
[2] |
ADAPTER
|
|
| 14. |
K1004006
|
[1] |
PLATE
|
|
| 15. |
121-00010D1
|
[2] |
NUT
|
|
| 16. |
195-00163
|
[1] |
BRACKET
|
|
| 17. |
S0563366
|
[2] |
BOLT
|
|
| 18. |
2124-1084D3
|
[9] |
CLIP;BAND
|
|
| 2. |
DS2055672
|
[1] |
HOSE
|
|
| 3. |
K1041222A
|
[1] |
CYLINDER;ARM(LOCK V/V)
|
400305-00220
|
| 3. |
400305-00220
|
[1] |
|
400305-00220A
|
| 3. |
400305-00220A
|
[1] |
|
|
| 3. |
400305-00220B
|
[1] |
|
|
| 3. |
400305-00220C
|
[1] |
|
|
| 4. |
420-00004A
|
[1] |
VALVE;LOCK
|
|
| 4. |
410114-00154
|
[1] |
|
|
| 4. |
410114-00154A
|
[1] |
|
|
| 4A. |
K9000999
|
[1] |
SEAL KIT
|
|
| 4A. |
401107-01315
|
[1] |
|
|
| 5. |
S2215766
|
[4] |
BOLT
|
|
| 6. |
S5110703
|
[8] |
WASHER
|
|
| 6. |
S5110703
|
[4] |
WASHER
|
|
| 7. |
S8000341
|
[1] |
O-RING
|
2180-1026D19
|
| 7. |
2180-1026D19
|
[1] |
O-RING
|
|
| 8. |
S2215966
|
[4] |
BOLT;SOCKET
|
|
| 8. |
S2215666
|
[4] |
BOLT;SOCKET
|
|
| 9. |
S8000111
|
[2] |
O-RING
|
|
