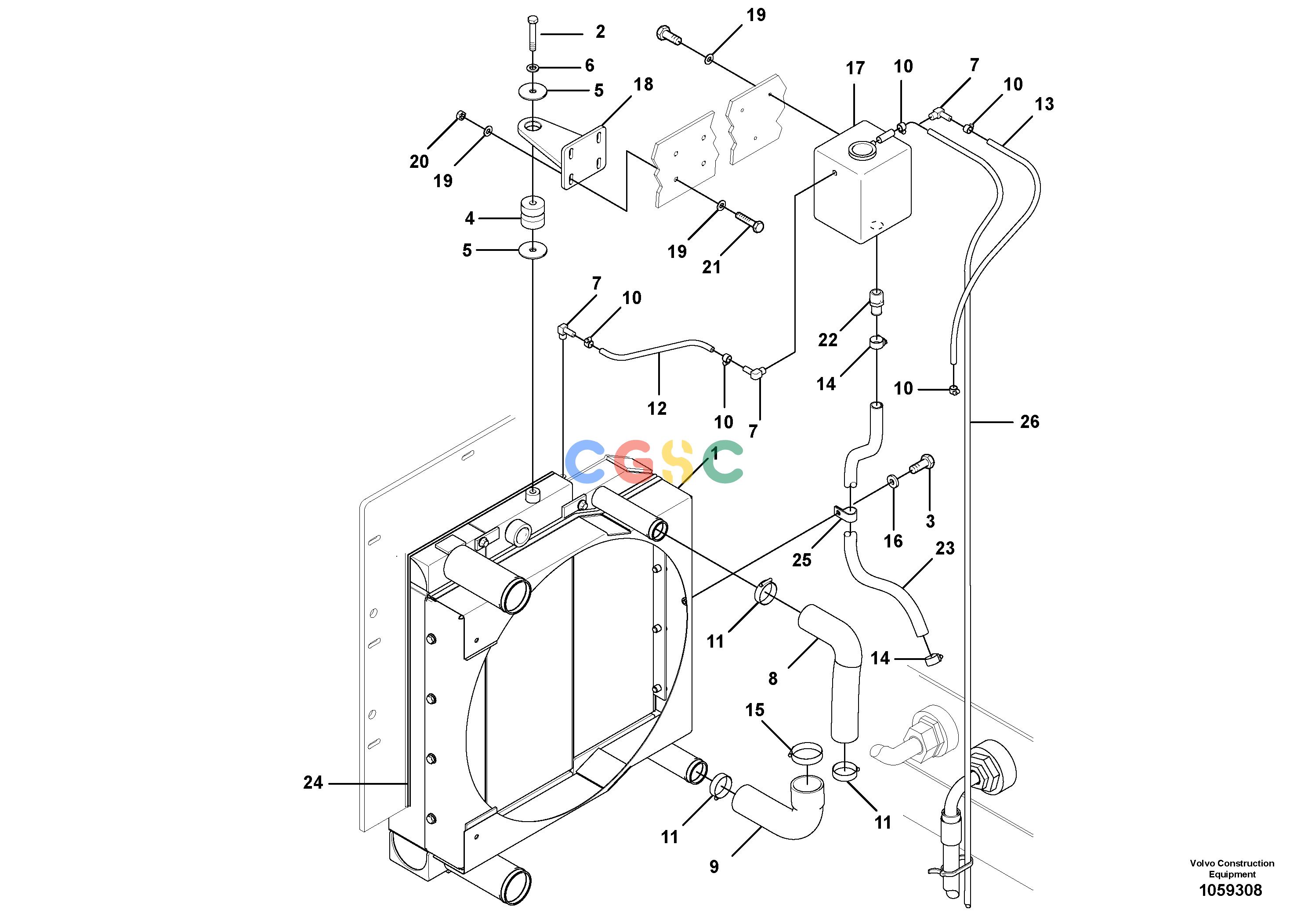

沃尔沃零件查询DD100 Cooling systemS/N 50001 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
1010 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Cooling Package Assembly
|
|
| 2. |
RM96714050
|
[1] |
Hexagon screw
|
|
| 3. |
RM96702816
|
[0004] |
Hexagon screw
|
|
| 4. |
RM13218854
|
[0001] |
Rubber damper
|
|
| 5. |
RM59302919
|
[0002] |
Washer
|
|
| 6. |
RM96738596
|
[0001] |
Plain washer
|
|
| 7. |
RM58849910
|
[3] |
Nipple
|
|
| 8. |
RM13888144
|
[1] |
Radiator hose
|
|
| 9. |
RM13413109
|
[1] |
Radiator hose
|
|
| 10. |
RM50274299
|
[0005] |
Hose clamp
|
|
| 11. |
RM95220893
|
[3] |
Hose clamp
|
|
| 12. |
RM59863225
|
[1] |
Hose
|
|
| 13. |
RM59646075
|
[1] |
Hose
|
|
| 14. |
RM95090106
|
[2] |
Clamp
|
|
| 15. |
RM95286266
|
[1] |
Hose clamp
|
|
| 16. |
RM96712674
|
[4] |
Plain washer
|
|
| 17. |
RM43850726
|
[1] |
Reservoir
|
|
| 18. |
|
[1] |
Radiator Suppor
|
|
| 19. |
VOE13955894
|
[11] |
Washer
|
|
| 20. |
RM96701370
|
[4] |
Hexagon nut
|
|
| 21. |
RM96705587
|
[4] |
Hexagon screw
|
|
| 22. |
RM43859024
|
[1] |
Adapter
|
|
| 23. |
RM43941152
|
[1] |
Hose
|
S/N - 50890
|
| 23. |
VOE12814074
|
[1] |
Hose
|
S/N 50891 -
|
| 24. |
RM58876418
|
[REQ] |
Seal
|
L = 1870 MM
|
| 25. |
RM95654208
|
[1] |
Clamp
|
|
| 26. |
RM13126511
|
[1] |
Hose assembly
|
|
