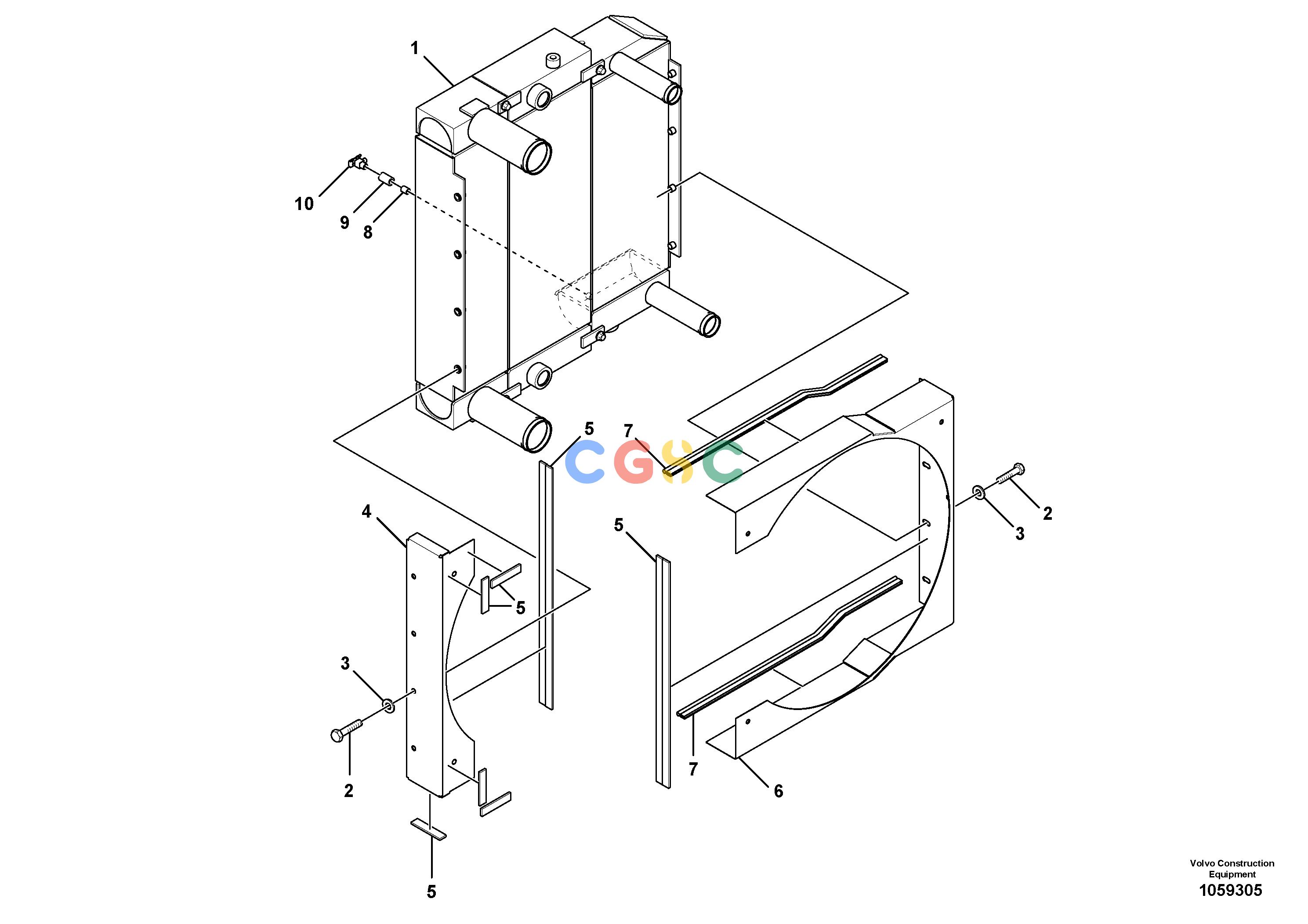

沃尔沃零件查询DD100 Cooling Package AssemblyS/N 50001 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
656 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM43808161
|
[1] |
Cooling unit
|
|
| |
RM43822337
|
[1] |
Charge air cooler
|
|
| |
RM43822345
|
[1] |
Radiator
|
|
| |
RM43822352
|
[1] |
Hyd Oil Cooler
|
|
| 2. |
RM96702287
|
[8] |
Hexagon screw
|
|
| 3. |
RM96741046
|
[8] |
Plain washer
|
|
| 4. |
RM43857382
|
[1] |
Fan shroud
|
|
| 5. |
RM35898477
|
[0REQ] |
Tape
|
L = 2440 MM
|
| 6. |
RM43857408
|
[1] |
Fan shroud
|
|
| 7. |
RM54592589
|
[REQ] |
Trim moulding
|
L = 2 x 659 MM
|
| 8. |
RM95048179
|
[1] |
Nipple
|
|
| 9. |
RM95011060
|
[1] |
Coupling piece
|
|
| 10. |
RM58848920
|
[1] |
Drain
|
S/N - 50584
|
