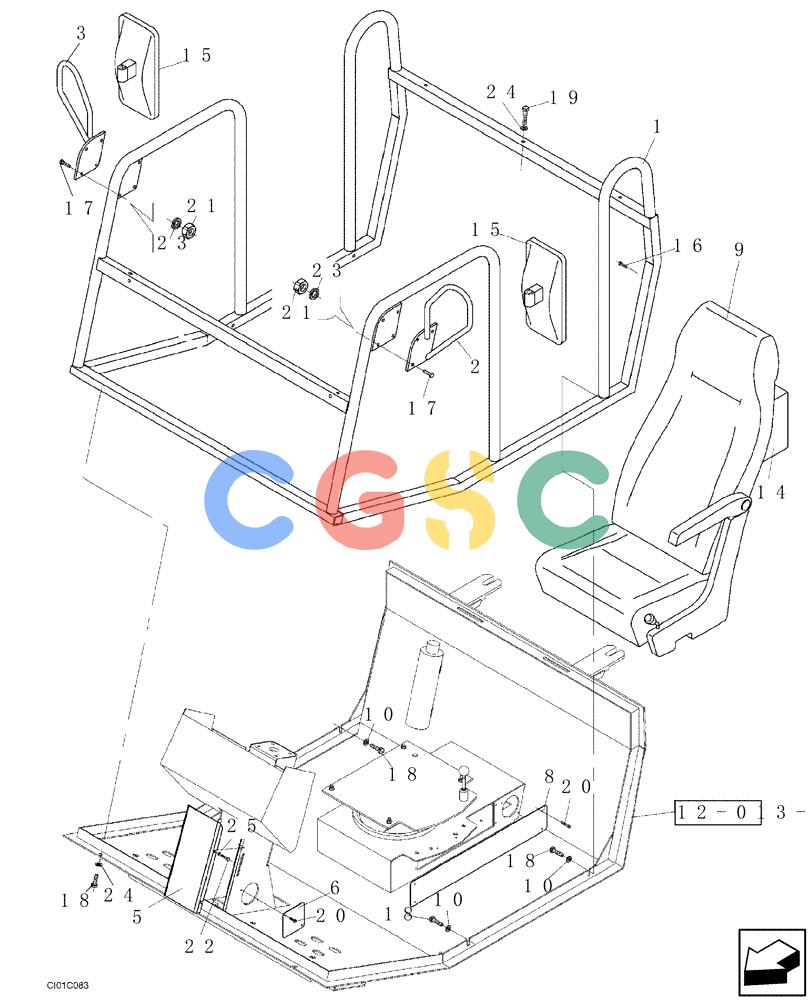

纽荷兰零件查询(CV1500) - VIBRATORY ROLLER (7/01-) (12-022-00[01]) - OPERATORS COMPARTMENT New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
615 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND011288 | [1] | HANDRAIL | STA |
| 2. | ND017742 | [1] | SUPPORT | STA |
| 3. | ND017749 | [1] | SUPPORT | STA |
| 5. | ND031736 | [1] | COVER | STA |
| 6. | ND051939 | [2] | COVER | STA |
| 8. | ND031738 | [2] | COVER | STA |
| 9. | ND031878 | [1] | DRIVER SEAT | STA |
| 10. | ND050532 | [4] | WASHER | STA |
| 14. | ND090877 | [1] | HOLDER | STA |
| 15. | ND064412 | [2] | REAR VIEW MIRROR | STA |
| 16. | ND110078 | [2] | SCREW | STAM8 x 10 |
| 17. | ND021182 | [8] | BOLT | STAM8 x 28 |
| 18. | ND021301 | [7] | BOLT | STAM10 x 20 |
| 19. | ND021199 | [3] | BOLT | STAM10 x 55 |
| 20. | ND024957 | [16] | SCREW | STAM4 x 12 |
| 21. | ND026416 | [8] | NUT | STAM8 Superseded by part number: ND034087 |
| 22. | ND093424 | [4] | BOLT | STAM5 x 10 |
| 23. | ND029310 | [8] | WASHER | STAID8,2 |
| 24. | ND029250 | [6] | WASHER | STAID 10,5 |
| 25. | ND029247 | [4] | WASHER | STAID 5,3 |
