纽荷兰零件查询(CV1500) - VIBRATORY ROLLER (7/01-) (12-022-01[01]) - CANOPY New Holland Constructuion
广数供应链运营团队, 18 02月, 2025，浏览：
149 次

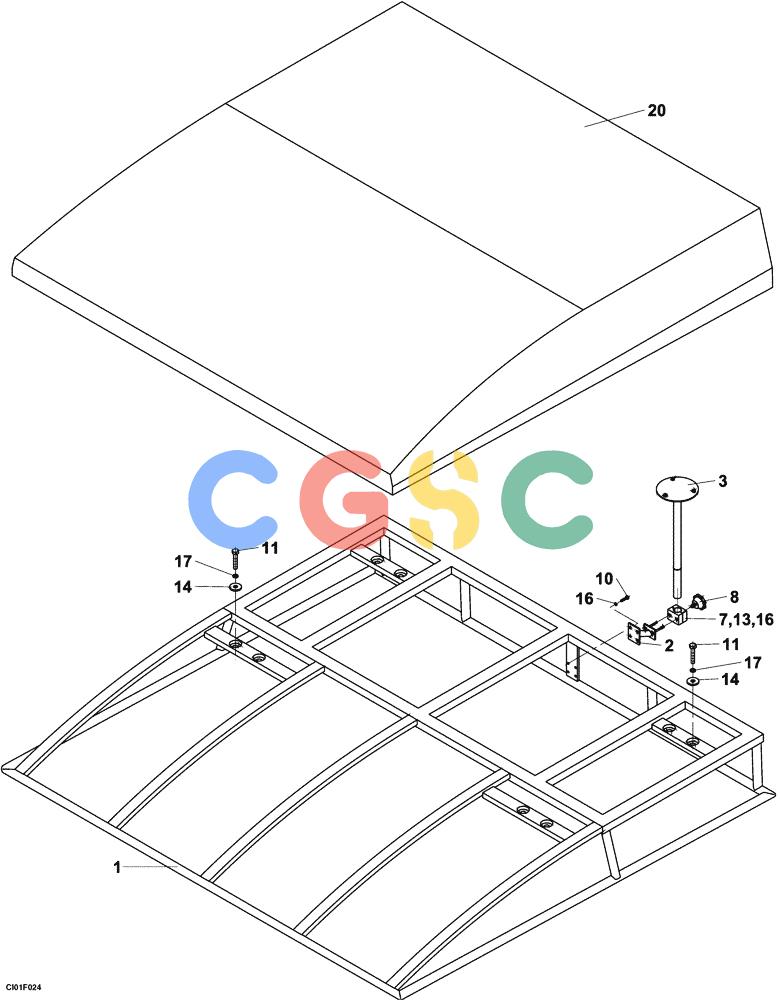

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND103501 | [1] | FRAME | STA |
| 2. | ND103510 | [1] | BRACKET | STA |
| 3. | ND103531 | [1] | SUPPORT | STA |
| 7. | ND062001 | [1] | CLAMP | STA |
| 8. | ND078528 | [2] | HANDLE | STA |
| 10. | ND021289 | [4] | BOLT | STAM6 x 20 |
| 11. | ND021310 | [4] | BOLT | STAM12 x 30 |
| 13. | ND029290 | [2] | WASHER | STAID 6,6 |
| 14. | ND029293 | [4] | WASHER | STAID 14 |
| 16. | ND029309 | [6] | SPRING WASHER | STAID 6,1 |
| 17. | ND035942 | [4] | WASHER | STAID 12 |
| 20. | ND101761 | [1] | ROOF | STA |
