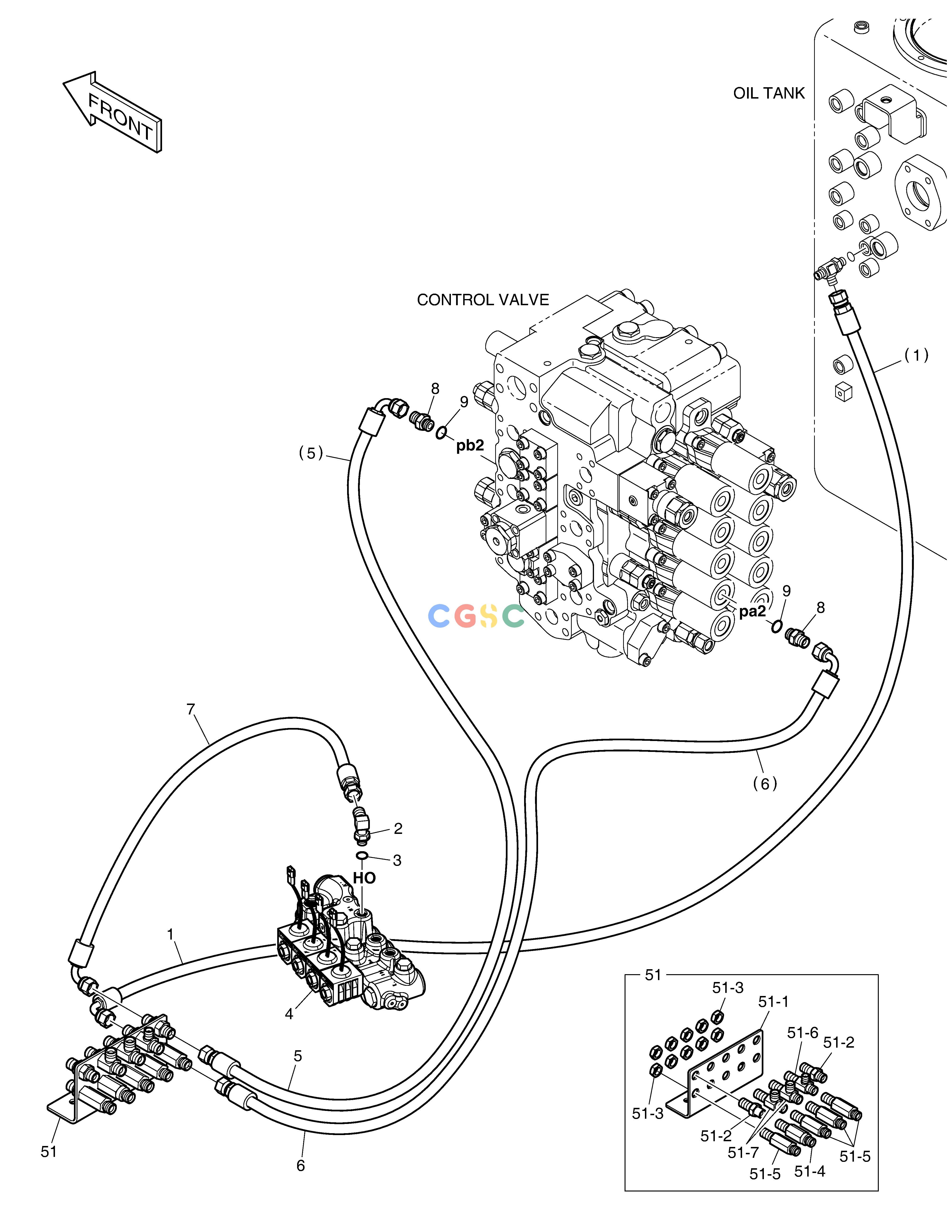

斗山零件查询PILOT PIPING - ONE WAY DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
547 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1044715A
|
[-] |
PILOT PIPING;ONE WAY
|
|
| -. |
420212-10256
|
[-] |
|
|
| 1. |
DS2093391
|
[1] |
HOSE
|
|
| 1. |
DS2093086
|
[1] |
HOSE PF3/8-1850L
|
|
| 2. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 2. |
2181-1702D3
|
[1] |
ELBOW
|
|
| 3. |
S8000111
|
[1] |
O-RING
|
|
| 4. |
K1047556
|
[1] |
VALVE;SOLENOID
|
|
| 5. |
DS2093176
|
[1] |
HOSE
|
|
| 51. |
430216-00298
|
[1] |
|
|
| 51-1. |
250201-02680
|
[1] |
|
|
| 51-2. |
181-00078D1
|
[2] |
ADAPTER
|
|
| 51-3. |
121-00010D1
|
[10] |
NUT
|
|
| 51-4. |
420-00352D1
|
[1] |
VALVE,SHOCKLESS
|
|
| 51-5. |
DS2410009
|
[4] |
ADAPTER
|
|
| 51-6. |
181-00086D1
|
[1] |
TEE
|
|
| 51-7. |
181-00086D2
|
[2] |
TEE
|
|
| 6. |
DS2093231
|
[1] |
HOSE
|
|
| 7. |
DS2093187
|
[1] |
|
|
| 8. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 9. |
S8000141
|
[2] |
O-RING
|
|
