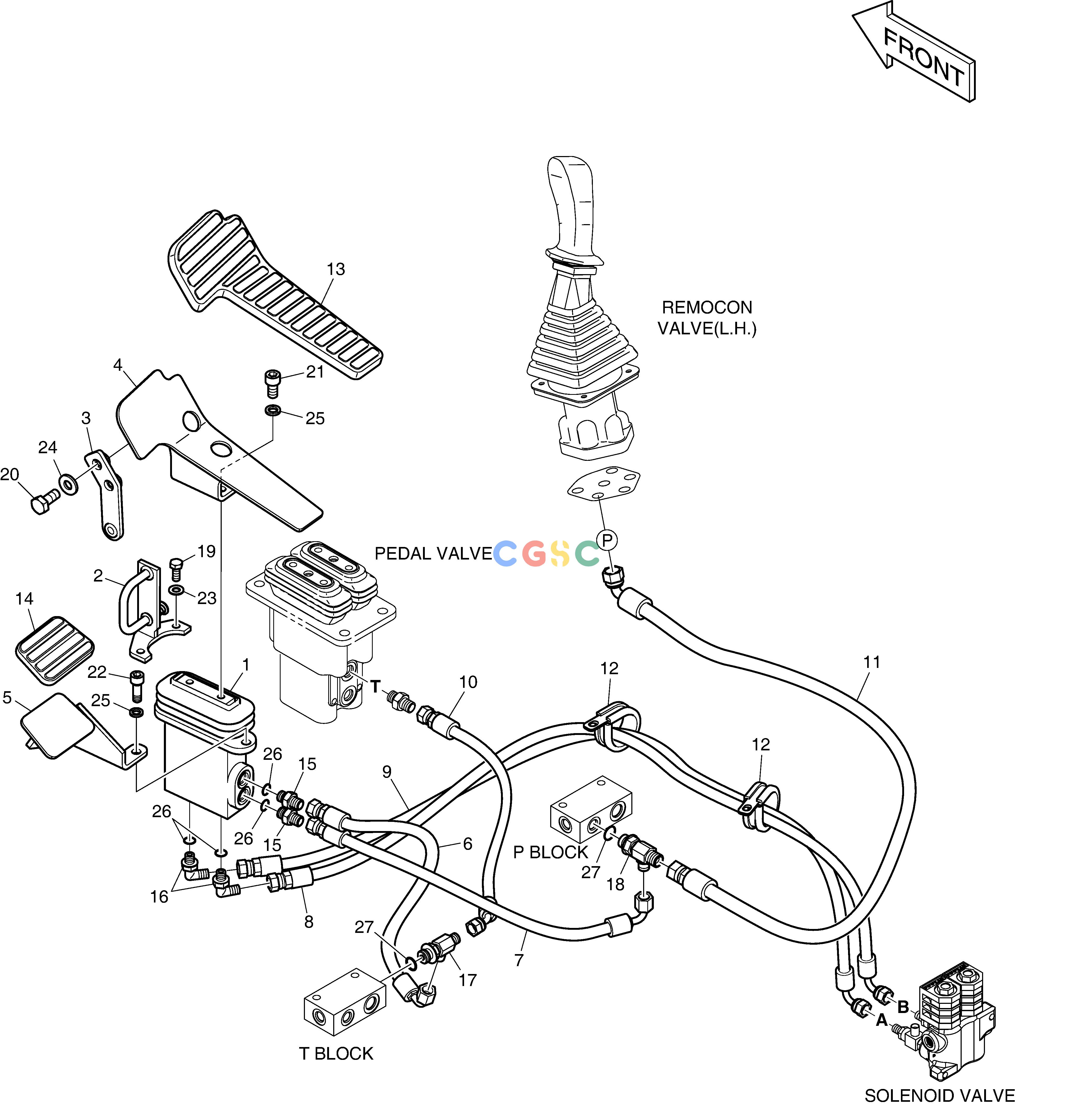

斗山零件查询PILOT PIPING - ROTATING(ROPS) DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
401 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-11341
|
[-] |
|
|
| 1. |
K1017382A
|
[1] |
PEDAL VALVE
|
|
| 10. |
DS2092046
|
[1] |
HOSE
|
|
| 11. |
DS2095003
|
[1] |
HOSE
|
|
| 12. |
124-00208D7
|
[2] |
CLIP
|
|
| 13. |
161-00382
|
[1] |
RUBBER;PEDAL(L.H)
|
|
| 14. |
K1006656
|
[1] |
RUBBER,PEDAL
|
|
| 15. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 16. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 17. |
2181-1951D7
|
[1] |
TEE
|
|
| 18. |
2181-1951D6
|
[1] |
TEE
|
|
| 19. |
S0508866
|
[2] |
BOLT
|
|
| 2. |
K1001873A
|
[1] |
PLATE
|
|
| 20. |
S0512066
|
[2] |
. BOLT
|
|
| 21. |
S2211866
|
[2] |
BOLT
|
|
| 22. |
S2212266
|
[2] |
BOLT
|
|
| 23. |
S5102503
|
[2] |
. WASHER
|
|
| 24. |
S5102603
|
[2] |
. WASHER
|
|
| 25. |
S5110603
|
[4] |
WASHER
|
|
| 26. |
S8000111
|
[4] |
O-RING
|
|
| 27. |
S8000141
|
[2] |
O-RING
|
|
| 3. |
K1001871B
|
[1] |
PLATE
|
|
| 4. |
195-01684A
|
[1] |
BRACKET;PEDAL(L.H)
|
|
| 5. |
K1003948A
|
[1] |
FOOT REST
|
|
| 6. |
DS2093130
|
[1] |
HOSE
|
|
| 7. |
DS2093202
|
[1] |
HOSE
|
|
| 8. |
DS2092044
|
[1] |
HOSE
|
|
| 9. |
DS2092044
|
[1] |
HOSE
|
|
