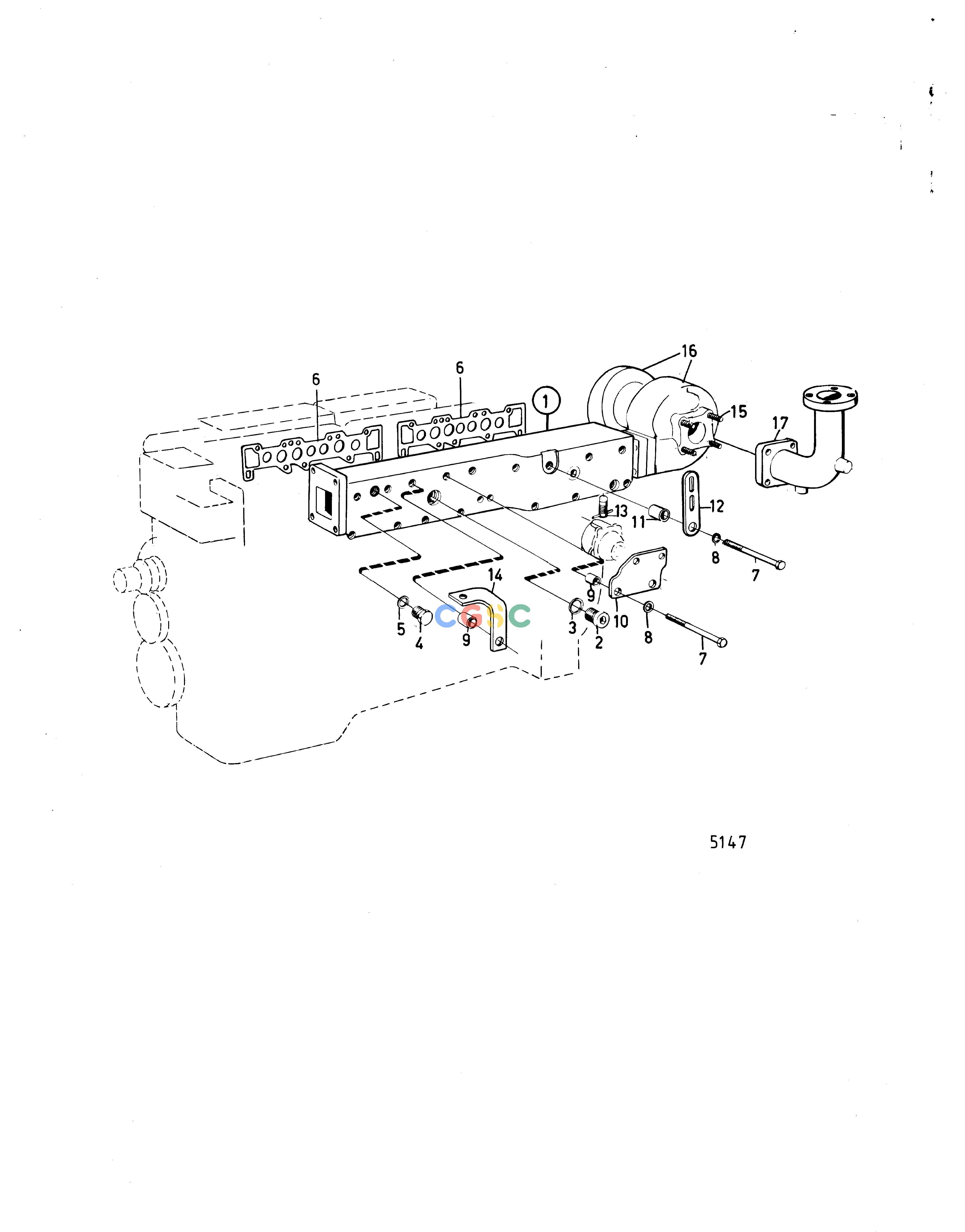

沃尔沃零件查询AQD70D; TAMD70D; TAMD70ECooling SystemExhaust Manifold and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
222 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
875706
|
[1] |
Exhaust pipe
|
|
| 2. |
467367
|
[6] |
Plug
|
|
| 3. |
469328
|
[6] |
Gasket
|
|
| 4. |
301185
|
[2] |
Plug
|
|
| 5. |
957185
|
[2] |
Gasket
|
|
| 6. |
842531
|
[2] |
Gasket
|
|
| 7. |
942338
|
[4] |
Hexagon screw
|
L=114mm
|
| 7. |
955544
|
[8] |
Hexagon screw
|
L=102mm
|
| 7. |
959797
|
[7] |
Hexagon screw
|
L=140mm
|
| 7. |
959798
|
[1] |
Hexagon screw
|
L=152mm
|
| 8. |
942336
|
[20] |
Spring washer
|
|
| 9. |
912127
|
[4] |
Spacer sleeve
|
|
| 10. |
843974
|
[1] |
Bracket
|
See group 2C
|
| 11. |
|
|
|
|
| 12. |
965535
|
[1] |
Bracket
|
|
| 13. |
82745
|
[1] |
Shut-off cock
|
|
| 14. |
844575
|
[2] |
Attaching plate
|
|
| 15. |
924079
|
[4] |
Stud
|
|
| 16. |
7743260_042
|
|
turbo
|
|
| 17. |
7743260_050
|
|
exhaust elbow, hose
|
|
