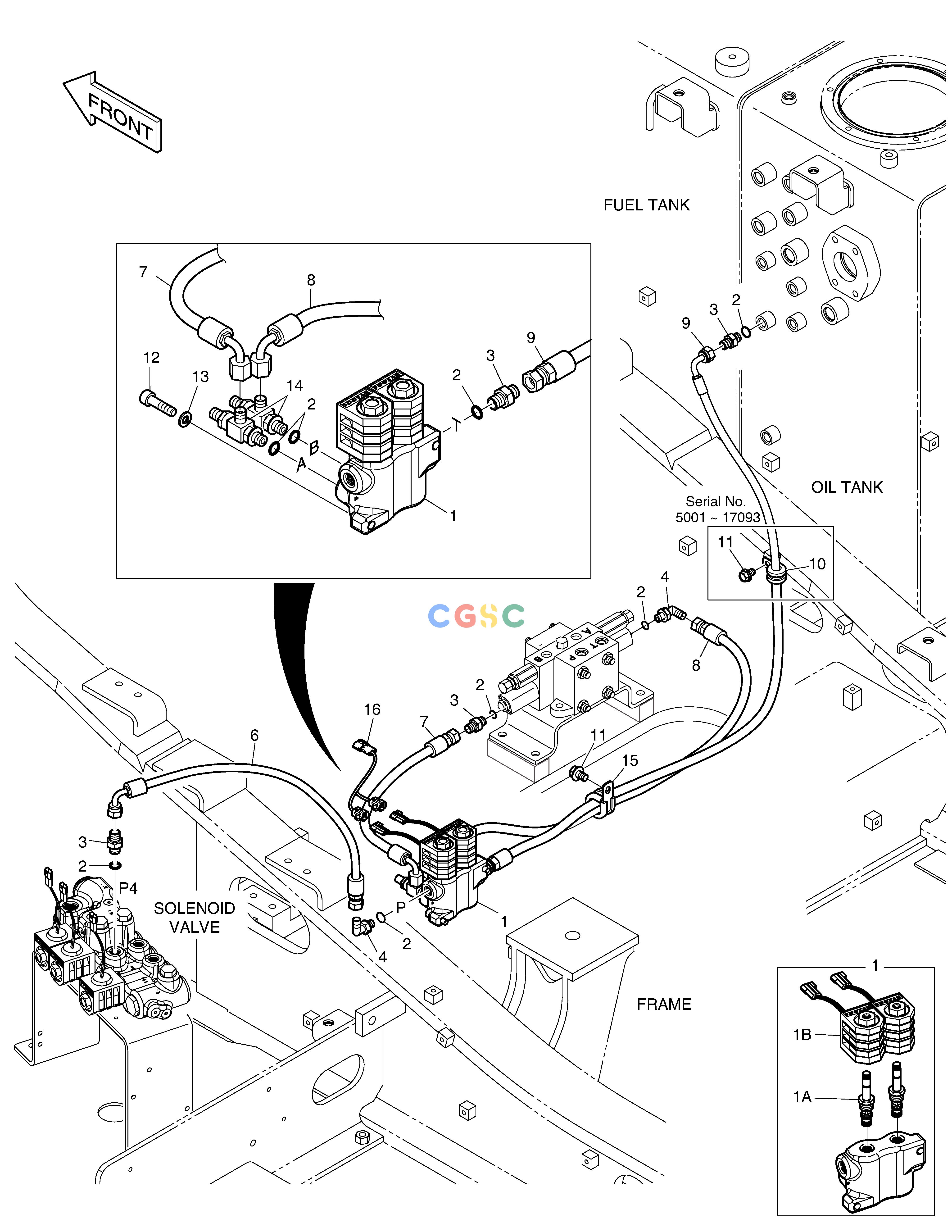

斗山零件查询PILOT PIPING(1) - ROTATING DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
402 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1044684
|
[-] |
PILOT PIPING;ROTATING
|
|
| -. |
420212-10380
|
[-] |
|
|
| 1. |
426-00247B
|
[1] |
VALVE;SOLENOID
|
|
| 10. |
124-00208D2
|
[1] |
CLAMP
|
|
| 11. |
K1001029
|
[2] |
BOLT
|
|
| 11. |
K1001029
|
[1] |
BOLT
|
|
| 12. |
S2209266
|
[2] |
BOLT
|
|
| 13. |
S5110503
|
[2] |
WASHER
|
|
| 14. |
181-00779
|
[2] |
TEE
|
|
| 15. |
124-00208D4
|
[1] |
CLIP
|
|
| 16. |
K1000817
|
[1] |
HARNESS
|
|
| 1A. |
K9007363
|
[2] |
SPOOL;SOLENOID
|
|
| 1B. |
1.519-00001
|
[2] |
COIL
|
|
| 2. |
S8000111
|
[8] |
O-RING
|
|
| 3. |
2181-1126D14
|
[4] |
ADAPTER
|
|
| 4. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 6. |
DS2093040
|
[1] |
HOSE ASSY,HYDRAULIC
|
|
| 6. |
DS2154004
|
[1] |
|
|
| 7. |
DS2093027
|
[1] |
HOSE
|
|
| 8. |
DS2093074
|
[1] |
HOSE
|
|
| 9. |
DS2093201
|
[1] |
HOSE
|
|
| 9. |
DS2093330
|
[1] |
HOSE
|
|
