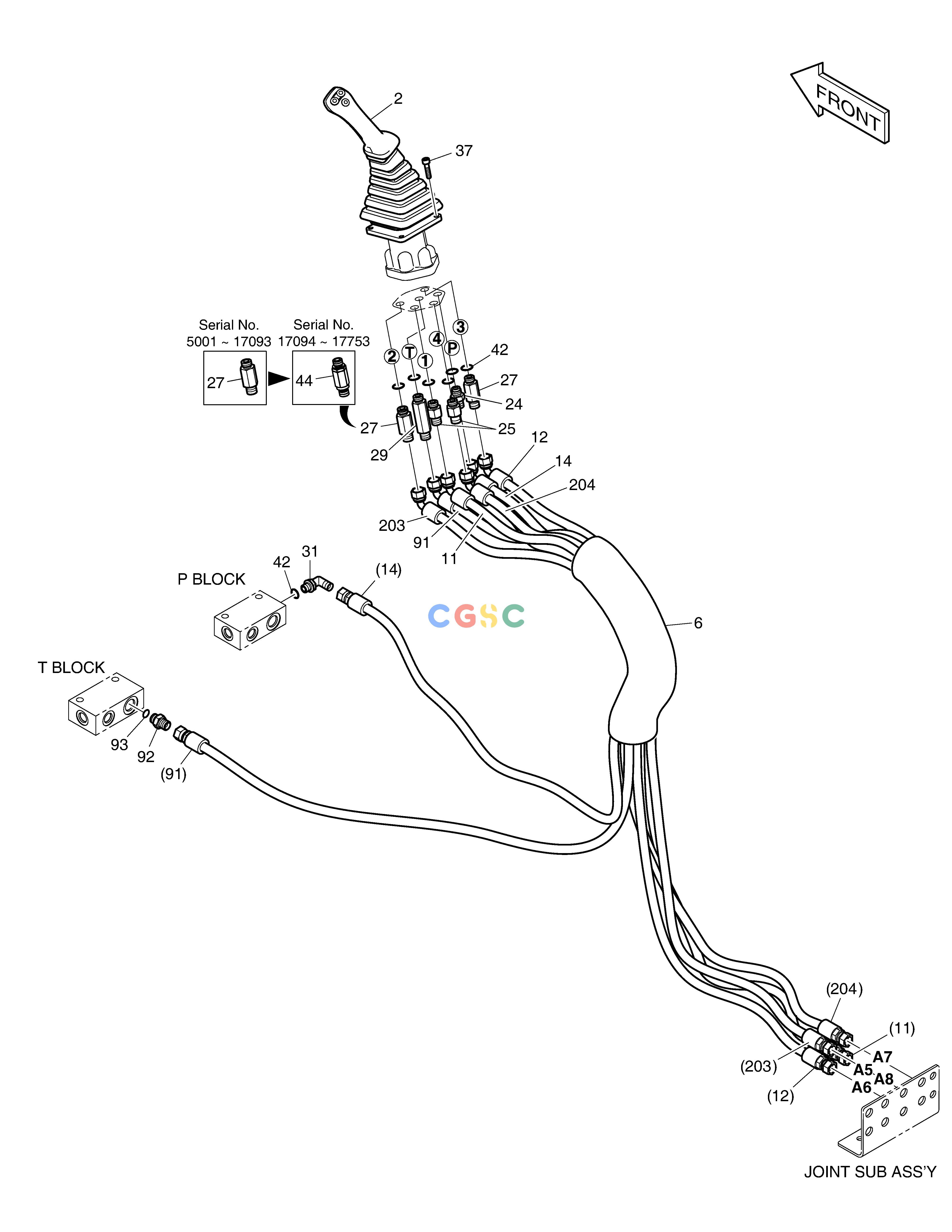

斗山零件查询PILOT PIPING(2) - ROPS DX220A / DX225LCA Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
328 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-11337A
|
[-] |
|
|
| -. |
420212-11337B
|
[-] |
|
|
| -. |
420212-11337C
|
[-] |
|
|
| -. |
420212-11337
|
[-] |
|
|
| 11. |
DS2095001
|
[1] |
HOSE
|
|
| 12. |
DS2095001
|
[1] |
HOSE
|
|
| 14. |
DS2095002
|
[1] |
HOSE
|
|
| 2. |
410113-00044B
|
[1] |
|
|
| 203. |
DS2095001
|
[1] |
HOSE
|
|
| 204. |
DS2095001
|
[1] |
HOSE
|
|
| 24. |
430201-00113
|
[1] |
ADAPTER
|
|
| 25. |
DS2213165
|
[2] |
ADAPTER
|
|
| 27. |
2181-1126D27
|
[1] |
ADAPTER
|
|
| 27. |
2181-1126D27
|
[2] |
ADAPTER
|
|
| 27. |
2181-1126D27
|
[2] |
ADAPTER
|
|
| 29. |
2181-1126D28
|
[1] |
ADAPTER
|
|
| 31. |
2181-1702D5
|
[1] |
ELBOW
|
|
| 37. |
S2205066
|
[4] |
BOLT
|
|
| 42. |
S8000141
|
[7] |
O-RING
|
|
| 44. |
K1003664D1
|
[1] |
VALVE;SHOCKLESS
|
|
| 44. |
410133-00015
|
[1] |
|
|
| 6. |
K1003945
|
[1] |
PROTECTOR
|
|
| 91. |
DS2095003
|
[1] |
HOSE
|
|
| 92. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 93. |
S8000141
|
[1] |
O-RING
|
|
