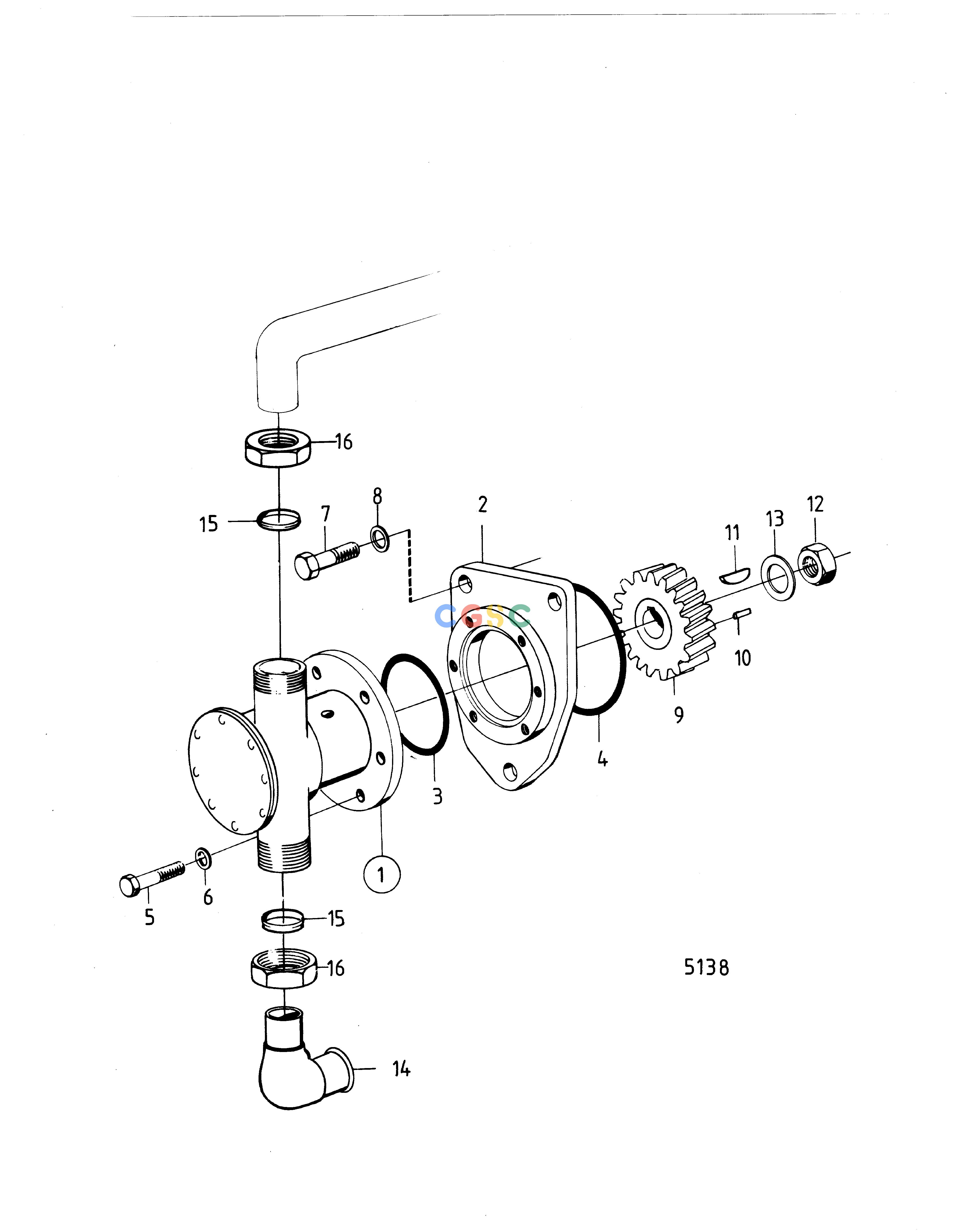

沃尔沃零件查询AQD70D; TAMD70D; TAMD70ECooling SystemSea Water Pump and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
150 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
837370
|
[1] |
Sea water pump
|
|
| 2. |
820695
|
[1] |
Spacer
|
|
| 3. |
925095
|
[1] |
O-ring
|
|
| 4. |
413619
|
[1] |
Gasket
|
|
| 5. |
940114
|
[3] |
Hexagon screw
|
|
| 6. |
942336
|
[3] |
Spring washer
|
|
| 7. |
955576
|
[1] |
Hexagon screw
|
For engine with tube heat exhanger., L=32mm
|
| 7. |
955577
|
[2] |
Hexagon screw, screw resilient washer
|
For engine with tube heat exhanger., L=38mm
|
| 8. |
941911
|
[3] |
Spring washer
|
|
| 9. |
820637
|
[1] |
Gear
|
See group 2A
|
| 10. |
950564
|
[1] |
Pin
|
|
| 11. |
942406
|
[1] |
Woodruff key
|
|
| 12. |
955860
|
[1] |
Hexagon nut
|
|
| 13. |
942735
|
[1] |
Tab washer
|
|
| 14. |
837276
|
[1] |
Anchorage
|
|
| 15. |
807957
|
[2] |
Sealing ring
|
|
| 16. |
6606324
|
[2] |
Nut
|
|
