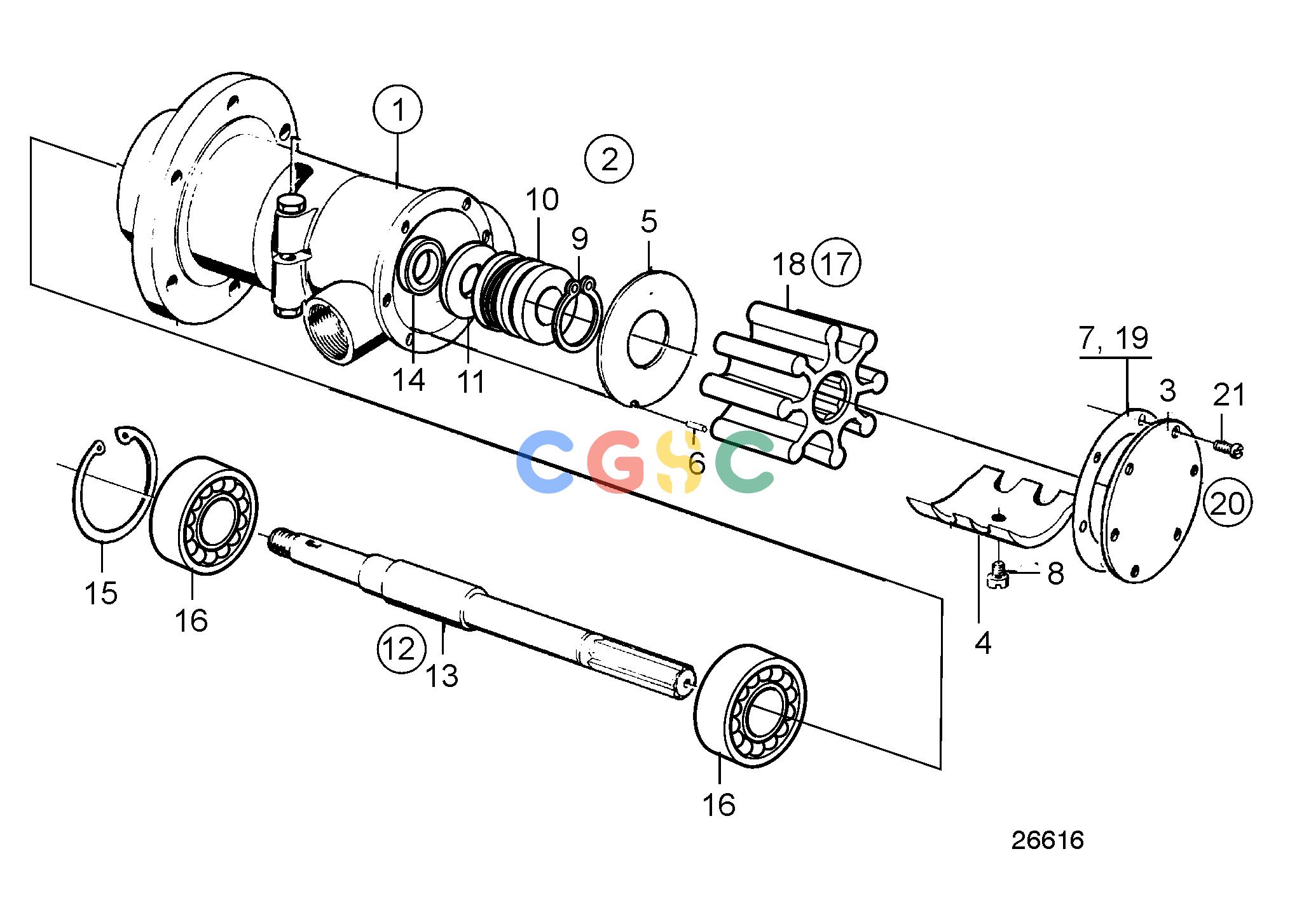

沃尔沃零件查询AQD70D; TAMD70D; TAMD70ECooling SystemSea Water PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
777 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
837370
|
[1] |
Sea water pump
|
|
| 2. |
21951394
|
[1] |
Wear kit
|
|
| 3. |
815573
|
[1] |
Cap
|
|
| 4. |
|
|
|
|
| 5. |
826246
|
[1] |
Wear washer
|
|
| 6. |
826239
|
[1] |
Pin
|
|
| 7. |
808275
|
[1] |
Gasket
|
|
| 8. |
|
|
|
|
| 9. |
809444
|
[1] |
Lock ring
|
|
| 10. |
822708
|
[1] |
Sealing
|
|
| 11. |
826238
|
[1] |
Deflector
|
|
| 12. |
21951455
|
[1] |
Shaft kit
|
|
| 13. |
826250
|
[1] |
Pump shaft
|
|
| 14. |
825737
|
[1] |
Sealing
|
|
| 15. |
21422641
|
[1] |
Retaining ring
|
|
| 16. |
11013
|
[2] |
Ball bearing
|
|
| 17. |
3841697
|
[1] |
Impeller kit
|
Replaced by next part number
|
| 17. |
21422647
|
[1] |
Impeller kit
|
Replaced by next part number
|
| 17. |
21951356
|
[1] |
Impeller kit
|
|
| 18. |
|
|
|
|
| 19. |
808275
|
[1] |
Gasket
|
|
| 20. |
21951336
|
[1] |
Screw kit
|
|
| 21. |
808285
|
[6] |
Screw
|
|
