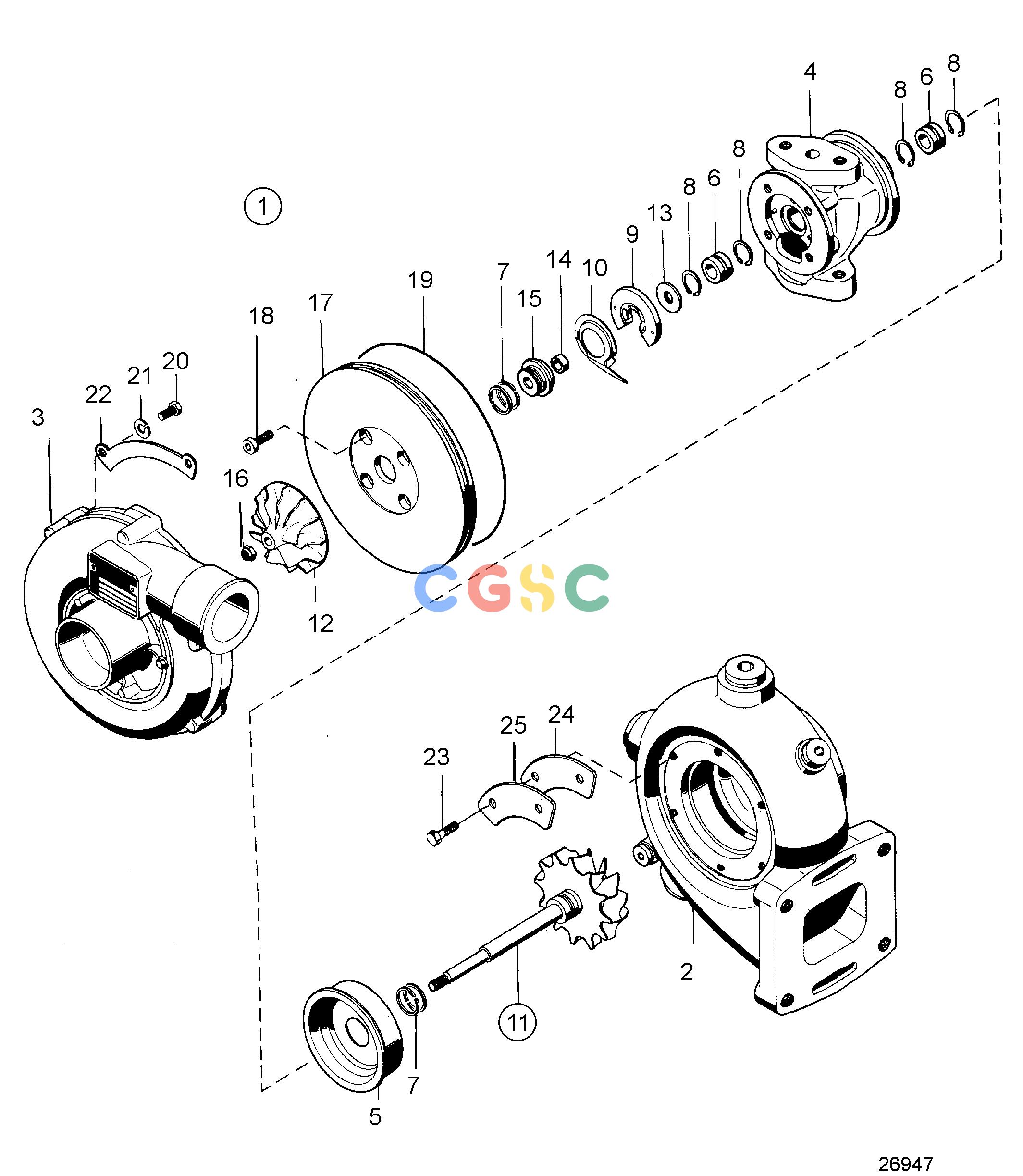

沃尔沃零件查询AQD70D; TAMD70D; TAMD70ECooling SystemTurboEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
678 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 1. |
3802014
|
[1] |
Turbocharger
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
845043
|
[1] |
Heat shield
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
|
|
|
|
| 9. |
|
|
|
|
| 10. |
|
|
|
|
| 11. |
845054
|
[1] |
Rotor
|
|
| 12. |
845056
|
[1] |
Compressor wheel
|
|
| 13. |
844000
|
[1] |
Thrust ring
|
|
| 14. |
845050
|
[1] |
Sleeve
|
|
| 15. |
845049
|
[1] |
Gasket
|
|
| 16. |
848711
|
[1] |
Lock nut
|
|
| 17. |
845055
|
[1] |
Pressure plate
|
|
| 18. |
940326
|
[4] |
Hex. socket screw
|
|
| 19. |
845036
|
[1] |
O-ring
|
|
| 20. |
838570
|
[8] |
Screw
|
|
| 21. |
844005
|
[8] |
Spring washer
|
|
| 22. |
845038
|
[4] |
Segment
|
|
| 23. |
940199
|
[6] |
Hexagon screw
|
|
| 24. |
845167
|
[3] |
Clamping segment
|
|
| 25. |
845035
|
[3] |
Segment
|
|
| 25. |
845169
|
[1] |
Repair kit
|
|
| 25. |
875519
|
[1] |
Gasket kit
|
|
