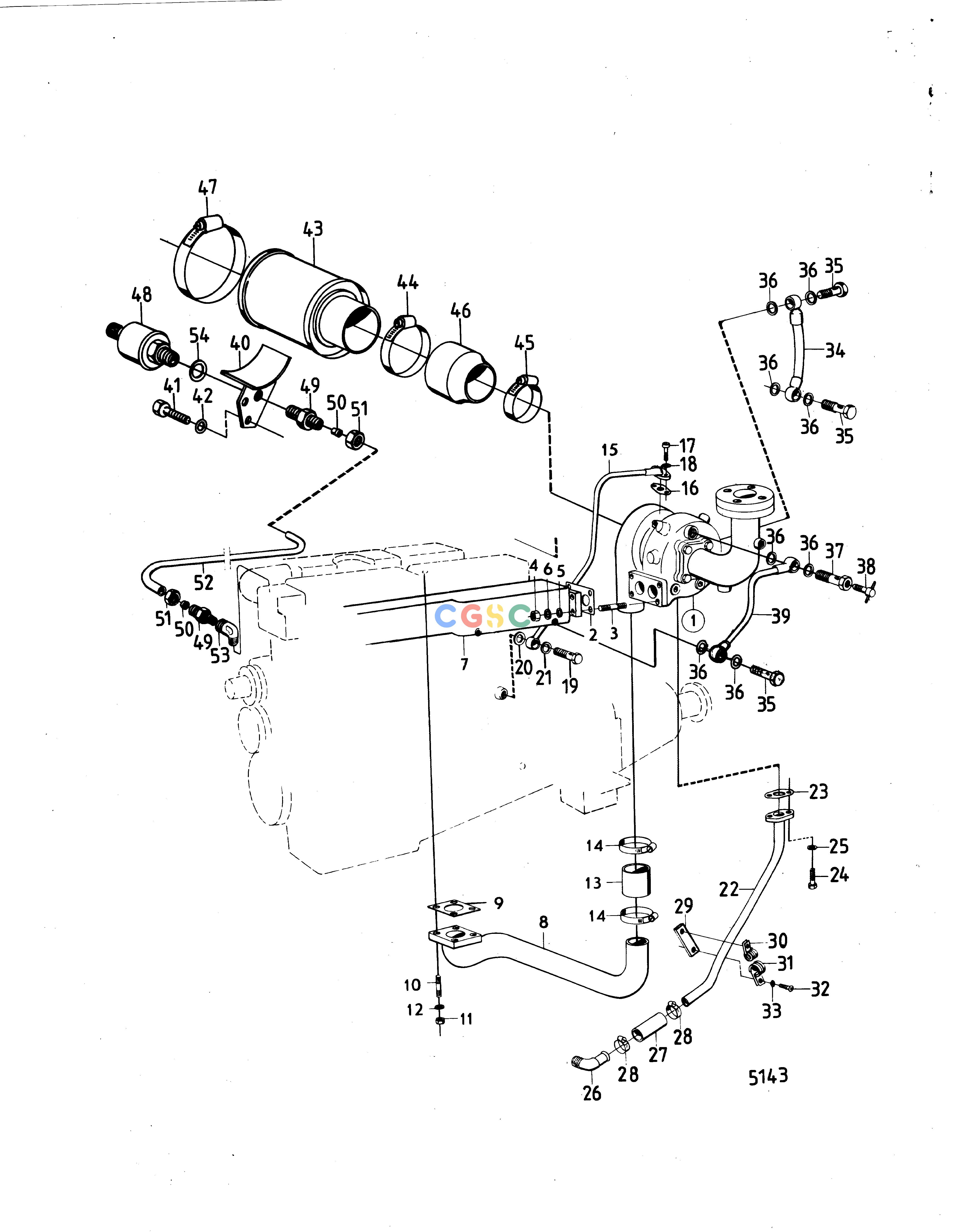

沃尔沃零件查询AQD70D; TAMD70D; TAMD70ECooling SystemTurbo and Air Filter with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
471 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 1. |
3802014
|
[1] |
Turbocharger
|
|
| 2. |
421324
|
[1] |
Gasket
|
|
| 3. |
924079
|
[4] |
Stud
|
|
| 4. |
940183
|
[4] |
Hexagon nut
|
|
| 5. |
955985
|
[4] |
O-ring
|
|
| 6. |
942336
|
[4] |
Spring washer
|
|
| 7. |
875706
|
[1] |
Exhaust pipe, exhaust manifold connection pipe
|
|
| 8. |
837511
|
[1] |
Connecting pipe
|
|
| 9. |
824310
|
[1] |
Gasket
|
|
| 10. |
953465
|
[4] |
Stud
|
|
| 11. |
955826
|
[4] |
Hexagon nut
|
|
| 12. |
941907
|
[4] |
Spring washer
|
|
| 13. |
466327
|
[1] |
Hose
|
|
| 14. |
943479
|
[2] |
Hose clamp
|
|
| 15. |
837415
|
[1] |
Feed line
|
|
| 16. |
420641
|
[1] |
Gasket
|
|
| 17. |
955297
|
[1] |
Hexagon screw
|
L=25mm
|
| 17. |
940142
|
[1] |
Hexagon screw
|
L=30mm
|
| 18. |
941907
|
[2] |
Spring washer
|
|
| 19. |
942007
|
[2] |
Hollow screw
|
|
| 20. |
957178
|
[1] |
Gasket
|
|
| 21. |
957181
|
[1] |
Gasket
|
|
| 22. |
843388
|
[1] |
Oil return pipe
|
|
| 23. |
842986
|
[1] |
Gasket
|
|
| 24. |
955297
|
[2] |
Hexagon screw
|
|
| 25. |
941907
|
[2] |
Spring washer
|
|
| 26. |
468629
|
[1] |
Elbow nipple
|
|
| 27. |
192358
|
[1] |
Hose
|
L=60mm
|
| 28. |
943473
|
[2] |
Hose clamp
|
|
| 29. |
836262
|
[1] |
Bracket
|
|
| 30. |
952625
|
[1] |
Clamp
|
|
| 31. |
952631
|
[1] |
Clamp
|
|
| 32. |
950044
|
[2] |
Cross recessed screw
|
|
| 33. |
941906
|
[2] |
Spring washer
|
|
| 34. |
843976
|
[1] |
Hose
|
|
| 35. |
191157
|
[3] |
Hollow screw
|
|
| 36. |
957185
|
[8] |
Gasket
|
|
| 37. |
191158
|
[1] |
Hollow screw
|
|
| 38. |
82745
|
[1] |
Shut-off cock
|
|
| 39. |
843977
|
[1] |
Coolant pipe
|
|
| 40. |
843664
|
[1] |
Bracket
|
|
| 41. |
955559
|
[2] |
Hexagon screw
|
|
| 42. |
940280
|
[2] |
Spring washer
|
|
| 43. |
842280
|
[1] |
Air filter
|
|
| 44. |
943484
|
[1] |
Hose clamp
|
|
| 45. |
943481
|
[1] |
Hose clamp
|
|
| 46. |
842281
|
[1] |
Rubber fitting
|
|
| 47. |
942921
|
[1] |
Hose clamp
|
|
| 48. |
837782
|
[1] |
Pressure sensor
|
See group 3
|
| 49. |
954379
|
[1] |
Nipple
|
|
| 50. |
954365
|
[2] |
Fitting
|
|
| 51. |
954357
|
[2] |
Fitting nut
|
|
| 52. |
837960
|
[1] |
Tube
|
|
| 53. |
954386
|
[1] |
Elbow nipple
|
|
| 54. |
957181
|
[1] |
Gasket
|
|
