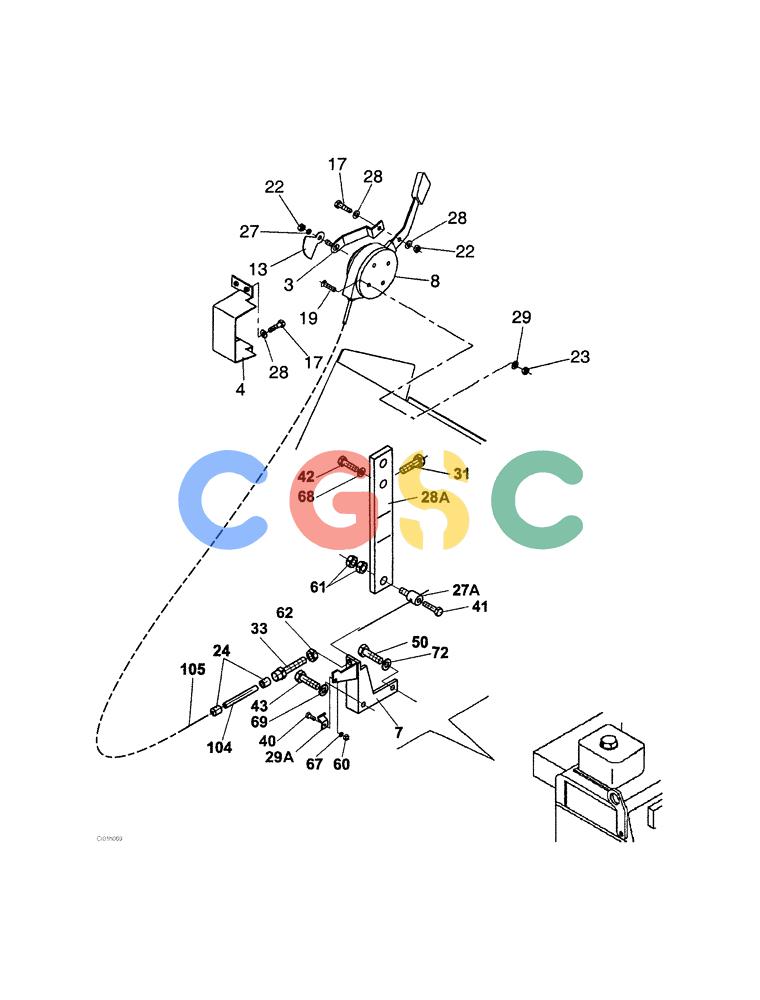

纽荷兰零件查询(CV2000) - VIBRATORY ROLLER (03-002-00[01]) - ACCELERATION MOTEUR New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
352 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 3. | ND052690 | [1] | SUPPORT | STA |
| 4. | ND031144 | [1] | COVER | STA |
| 7. | ND017786 | [1] | SUPPORT | STA |
| 8. | ND050785 | [1] | LEVER | STA |
| 13. | ND050565 | [1] | PLATE | STA |
| 17. | ND021285 | [3] | BOLT | STAM5 x 12 |
| 19. | ND024381 | [4] | SCREW | STA |
| 22. | ND021846 | [2] | NUT | STA |
| 23. | ND027300 | [4] | NUT | STA |
| 24. | ND054267 | [2] | SLEEVE | STA |
| 27. | ND029308 | [1] | WASHER | STA |
| 27A. | ND050648 | [1] | PIVOT | STA |
| 28. | ND029247 | [4] | WASHER | STA |
| 28A. | ND029881 | [1] | LEVER | STA |
| 29. | ND029248 | [4] | WASHER | STA |
| 29A. | ND098399 | [1] | CLAMP | STA |
| 31. | ND053025 | [1] | STOP | STA |
| 33. | ND050635 | [1] | SCREW | STA |
| 40. | ND023784 | [1] | BOLT | STA |
| 41. | ND023789 | [1] | SCREW | STA Superseded by part number: ND110076 |
| 42. | ND021286 | [2] | BOLT | STA |
| 43. | ND021293 | [5] | BOLT | STA |
| 50. | ND021309 | [18] | BOLT | STA |
| 60. | ND026413 | [1] | NUT | STA |
| 61. | ND021847 | [2] | NUT | STA |
| 62. | ND021848 | [2] | NUT | STA Superseded by part number: ND034087 |
| 68. | ND029306 | [1] | WASHER | STA |
| 69. | ND029309 | [2] | SPRING WASHER | STA |
| 72. | ND035942 | [1] | WASHER | STA |
| 104. | ND099886 | [1] | CABLE SHEATH | STA |
| 105. | ND099887 | [1] | CABLE | STA |
