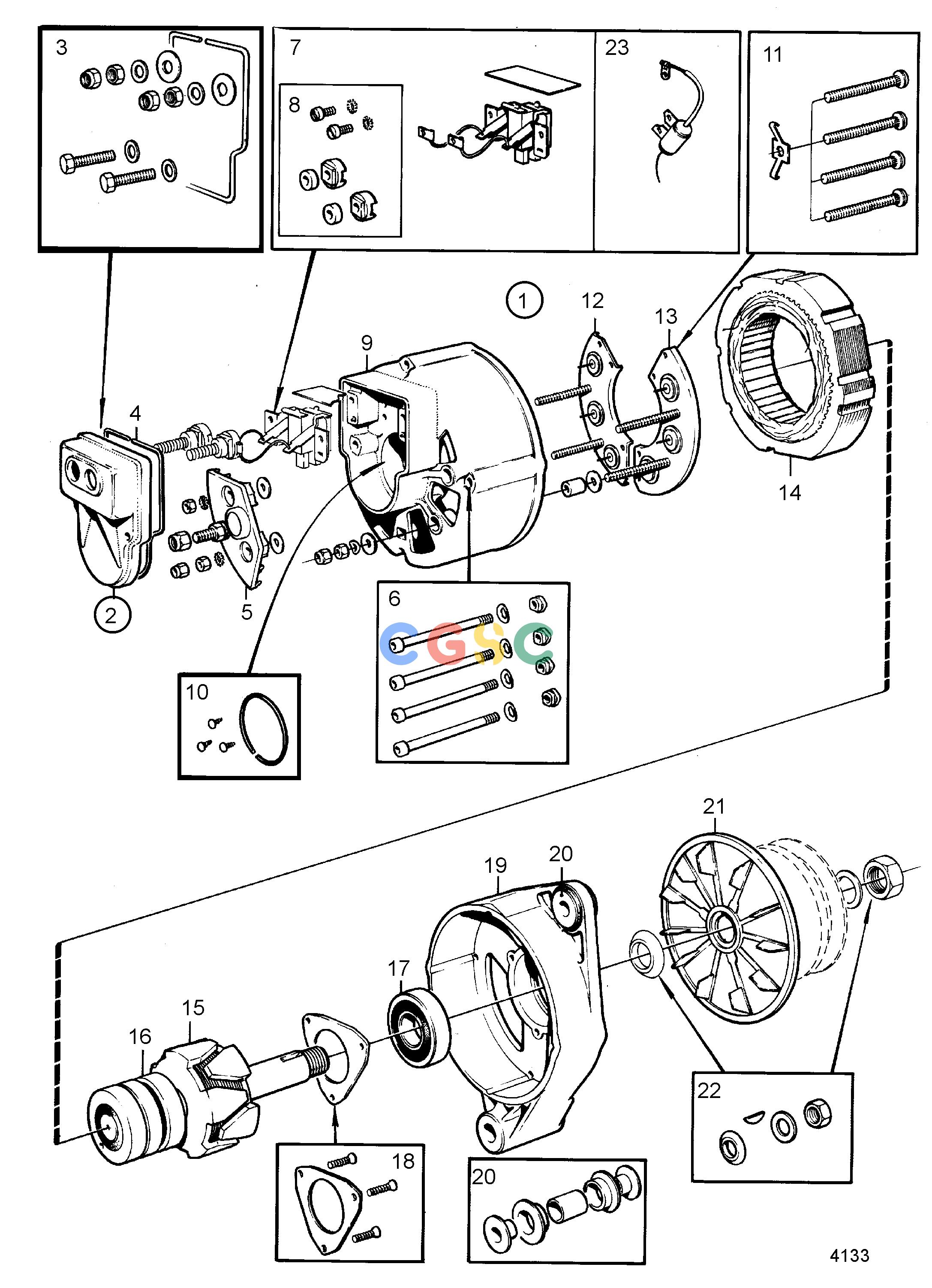

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EElectrical SystemAlternator: 827348EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
331 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
827348
|
[1] |
Alternator
|
12V38A
|
| 2. |
827559
|
[1] |
Cover
|
|
| 3. |
827560
|
[1] |
Mounting kit
|
|
| 4. |
825531
|
[1] |
Gasket
|
|
| 5. |
825532
|
[1] |
Diode retainer
|
For charging of 2 batteries use double diode set 825970
|
| 6. |
825566
|
[1] |
Set
|
|
| 7. |
821723
|
[1] |
Carbon brush
|
|
| 8. |
827558
|
[1] |
Screw kit
|
|
| 9. |
|
|
|
|
| 10. |
1560922
|
[1] |
Seal
|
|
| 11. |
827562
|
[1] |
Screw kit
|
|
| 12. |
827563
|
[1] |
Diode retainer
|
+
|
| 13. |
1517037
|
[1] |
Diode retainer
|
|
| 14. |
|
|
|
|
| 15. |
825923
|
[1] |
Rotor
|
|
| 16. |
|
|
|
|
| 17. |
181875
|
[1] |
Ball bearing
|
|
| 18. |
480655
|
[1] |
Repair kit
|
|
| 19. |
|
|
|
|
| 20. |
465033
|
[1] |
Guide
|
|
| 21. |
820460
|
[1] |
Fan
|
D=127,5mm
|
| 22. |
1560928
|
[1] |
Mounting kit
|
|
| 23. |
821725
|
[1] |
Suppressor
|
|
