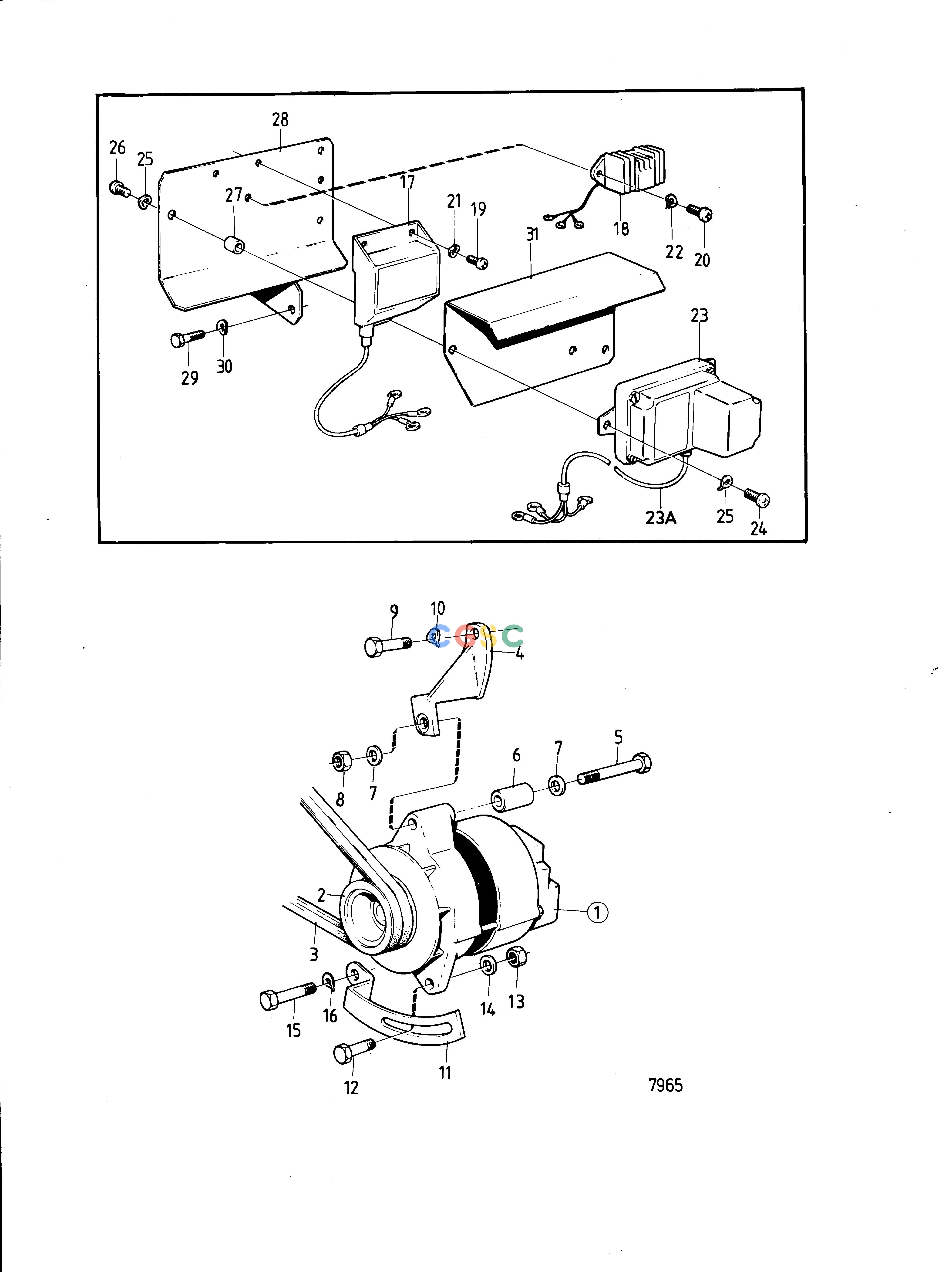

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EElectrical SystemAlternator and Installation Components 12V38A, 24V25AEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
650 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
827348
|
[1] |
Alternator
|
12V 38A repl by 847604
|
| 1. |
847604
|
[1] |
Alternator
|
14V35A
|
| 1. |
827349
|
[1] |
Alternator
|
24V25A repl by 847561
|
| 1. |
847561
|
[1] |
Alternator
|
28V30A
|
| 2. |
822573
|
[1] |
Pulley
|
For alternator 827348 and 827349
|
| 2. |
841812
|
[1] |
Pulley
|
For generator 847604 and 847561
|
| 3. |
958350
|
[1] |
V-belt
|
|
| 4. |
824333
|
[1] |
Bracket
|
|
| 5. |
959806
|
[1] |
Hexagon screw
|
|
| 6. |
824334
|
[1] |
Spacer sleeve
|
|
| 7. |
955896
|
[2] |
Washer
|
|
| 8. |
950355
|
[1] |
Lock nut
|
|
| 9. |
940161
|
[2] |
Hexagon screw
|
|
| 10. |
941907
|
[2] |
Spring washer
|
|
| 11. |
838073
|
[1] |
Tensioner
|
|
| 12. |
940186
|
[1] |
Hexagon screw
|
|
| 13. |
950353
|
[1] |
Lock nut
|
|
| 14. |
191172
|
[1] |
Washer
|
|
| 15. |
955533
|
[1] |
Hexagon screw
|
|
| 16. |
941907
|
[1] |
Spring washer
|
|
| 17. |
847605
|
[1] |
Governor
|
12V MO-XXXX/26391
|
| 18. |
847605
|
[1] |
Governor
|
12V MOXXXX/26392-
|
| 19. |
950031
|
[3] |
Cross recessed screw
|
|
| 20. |
956076
|
[2] |
Cross recessed screw
|
|
| 21. |
941906
|
[3] |
Spring washer
|
|
| 22. |
941905
|
[2] |
Spring washer
|
|
| 23. |
4803292
|
[1] |
Charge regulator
|
24V
|
| 23A. |
845976
|
[1] |
Cable block
|
|
| 24. |
956092
|
[3] |
Cross recessed screw
|
|
| 25. |
941906
|
[6] |
Spring washer
|
|
| 26. |
956091
|
[3] |
Cross recessed screw
|
|
| 27. |
899709
|
[3] |
Vibration damper
|
|
| 28. |
824354
|
[1] |
Bracket
|
|
| 29. |
940186
|
[2] |
Hexagon screw
|
|
| 30. |
941907
|
[2] |
Spring washer
|
|
| 31. |
823649
|
[1] |
Protecting plate
|
|
