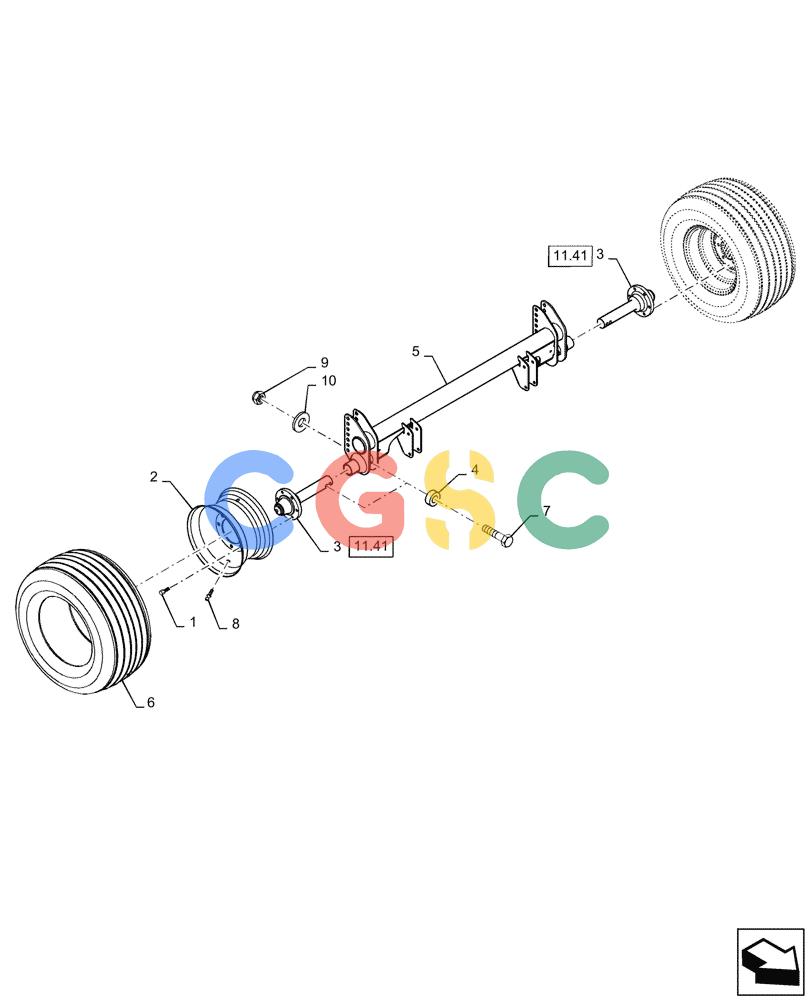

凯斯零件查询(RB454) - CASE IH ROUND BALER (7/07-1/14) (11.07) - WHEELS, 18L - 16.1, HEAVY DUTY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
201 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86625632
|
[12] |
WHEEL NUT,Hex, M18 x 1.5
|
NH
Wheel, M18 x 1.5 UNF
|
| 2. |
87715421
|
[2] |
WHEEL
|
PA
16.1 x 14-6
|
| 3. |
86631642
|
[2] |
HUB
|
NH
Spindle, Heavy Duty
|
| 4. |
86641937
|
[2] |
SPACER,16.6mm ID x 31.75mm OD x 12.7mm Thk
|
PA
|
| 5. |
47640669
|
[1] |
AXLE
|
NH
|
| 6. |
87715417
|
[2] |
TYRE/TIRE
|
PA
18L - 16.1SL, 10 Ply
|
| 7. |
374889
|
[2] |
BOLT,Hex, M16 x 100mm, Cl 8.8
|
NH
|
| 8. |
86616183
|
[2] |
TIRE TUBE
|
PLO
|
| 9. |
86000441
|
[2] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 10. |
122432
|
[2] |
WASHER,17mm ID x 41mm OD x 6mm Thk
|
NH
Hardened, 5/8 Superseded by part number: 84058945
|
