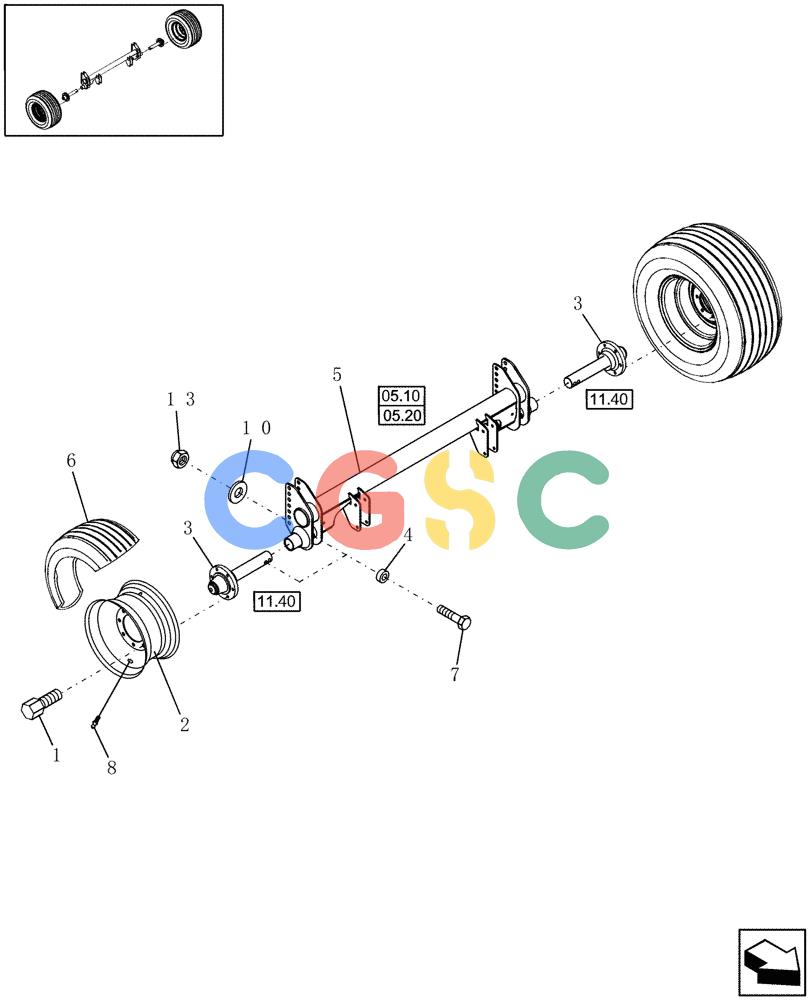

凯斯零件查询(RB454) - CASE IH ROUND BALER (7/07-1/14) (11.04) - WHEELS, 8 PLY 15", 31 X 13.5-15 8 PLY TIRE, NORTH AMERICA Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
623 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
198056
|
[12] |
WHEEL BOLT,1/2" - 20 x 1.031"
|
NH
G5
|
| 2. |
86616346
|
[2] |
WHEEL
|
NH
|
| 3. |
0C
|
[2] |
ORDER COMPONENTS
|
NH
Spindle
|
| 4. |
86641937
|
[2] |
SPACER,16.6mm ID x 31.75mm OD x 12.7mm Thk
|
PA
|
| 6. |
86564435
|
[2] |
TYRE/TIRE
|
NH
31 x 13.5, 8 Ply Superseded by part number: TT41N397
|
| 7. |
374889
|
[2] |
BOLT,Hex, M16 x 100mm, Cl 8.8
|
NH
|
| 8. |
196033
|
[2] |
VALVE STEM
|
NH
Tire, Tubeless
|
| 10. |
122432
|
[2] |
WASHER,17mm ID x 41mm OD x 6mm Thk
|
NH
Hardened, 5/8" Superseded by part number: 84058945
|
| 13. |
832-46416
|
[2] |
NUT,M16 x 2, Cl 8
|
CAS
Superseded by part number: 86000441
|
