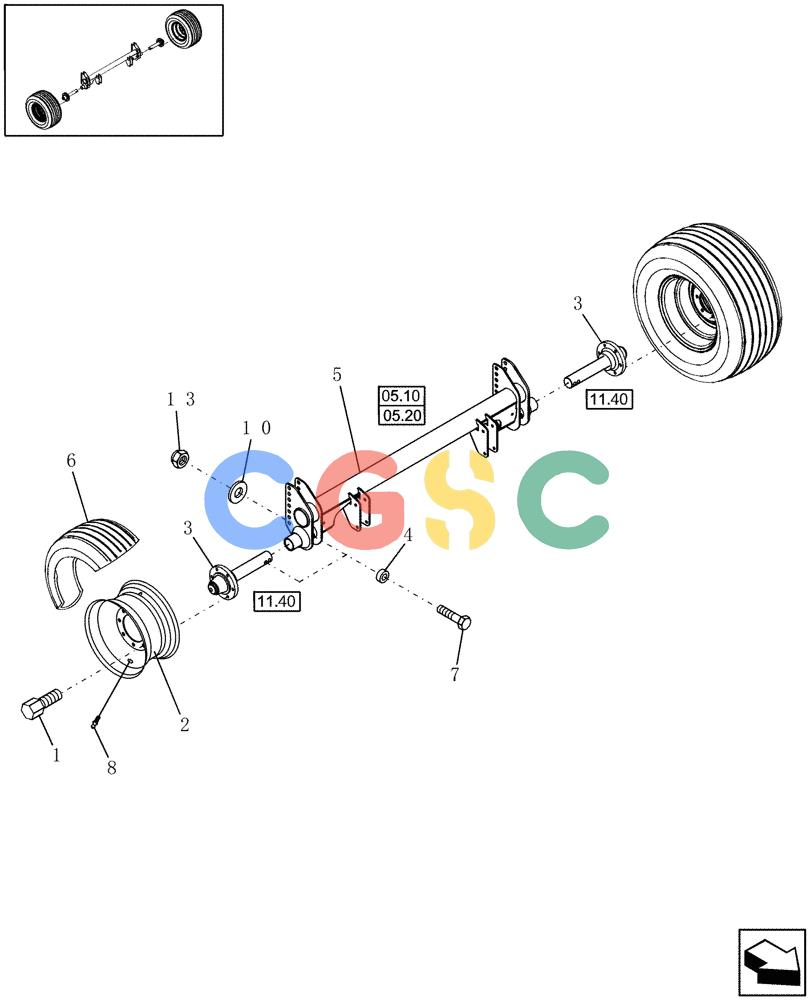

凯斯零件查询(RB454) - CASE IH ROUND BALER (7/07-1/14) (11.06) - WHEELS, 10 PLY 13.00 X 17, 380 X 55 - 17 AW 10 PLY TIRE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
849 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86625632
|
[12] |
WHEEL NUT,Hex, M18 x 1.5
|
NH
|
| 2. |
87534102
|
[2] |
WHEEL
|
PA
13.00 x 17
|
| 3. |
0C
|
[2] |
ORDER COMPONENTS
|
NH
|
| 4. |
86631642
|
[2] |
HUB
|
NH
|
| 6. |
87534100
|
[2] |
TYRE/TIRE
|
PA
380 x 55 - 17 AW 10 PLY
|
| 7. |
374889
|
[2] |
BOLT,Hex, M16 x 100mm, Cl 8.8
|
NH
|
| 8. |
87045051
|
[2] |
VALVE
|
PA
|
| 10. |
122432
|
[2] |
WASHER,17mm ID x 41mm OD x 6mm Thk
|
NH
Superseded by part number: 84058945
|
| 13. |
86000441
|
[2] |
NUT,M16 x 2.0, Cl 8
|
NH
|
