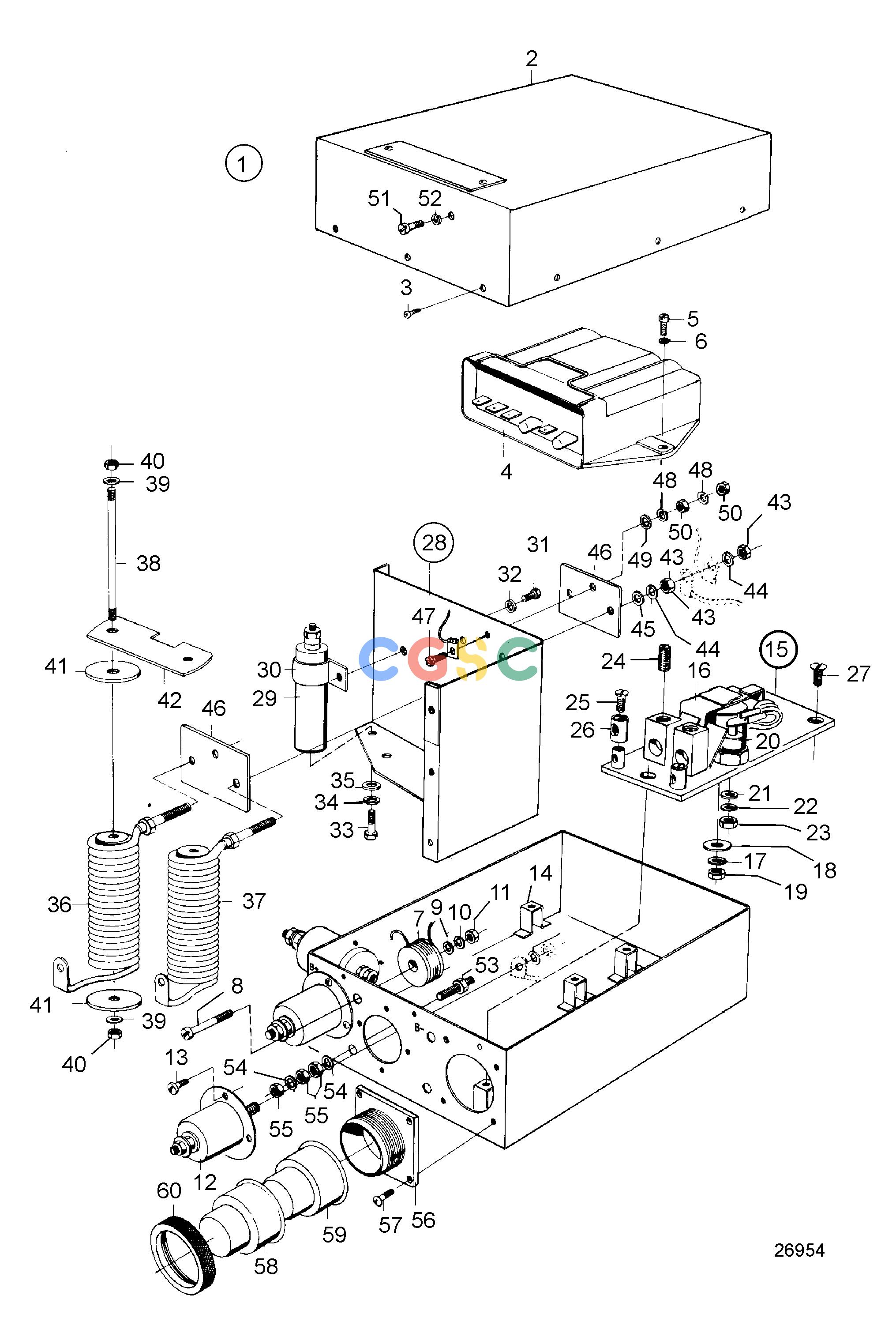

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EElectrical SystemCharging RelayEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
447 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
823766
|
[1] |
Governor
|
24V60A
|
| 2. |
|
|
|
|
| 3. |
242731
|
[12] |
Screw
|
|
| 4. |
242696
|
[1] |
Governor
|
|
| 5. |
809716
|
[2] |
Screw
|
|
| 6. |
242734
|
[2] |
Spring washer
|
|
| 7. |
242735
|
[1] |
Coil
|
|
| 8. |
242736
|
[1] |
Screw
|
|
| 9. |
|
|
|
|
| 10. |
242734
|
[1] |
Spring washer
|
|
| 11. |
242171
|
[1] |
Nut
|
|
| 12. |
242737
|
[3] |
Capacitor
|
|
| 13. |
242731
|
[12] |
Screw
|
|
| 14. |
940155
|
[3] |
Toothed washer
|
|
| 15. |
242738
|
[1] |
Base plate
|
|
| 16. |
242739
|
[1] |
Relay
|
|
| 17. |
242734
|
[1] |
Spring washer
|
|
| 18. |
|
|
|
|
| 19. |
|
|
|
|
| 20. |
242742
|
[1] |
Diode
|
|
| 21. |
242743
|
[1] |
Washer
|
|
| 22. |
|
|
|
|
| 23. |
242745
|
[1] |
Nut
|
|
| 24. |
|
|
|
|
| 25. |
|
|
|
|
| 26. |
78022
|
[2] |
Sleeve
|
|
| 27. |
242747
|
[3] |
Screw
|
|
| 28. |
836281
|
[1] |
Shield
|
|
| 29. |
242748
|
[2] |
Capacitor
|
|
| 30. |
|
|
|
|
| 31. |
|
|
|
|
| 32. |
|
|
|
|
| 33. |
|
|
|
|
| 34. |
242734
|
[2] |
Spring washer
|
|
| 35. |
|
|
|
|
| 36. |
242753
|
[1] |
Coil
|
|
| 37. |
242754
|
[1] |
Coil
|
|
| 38. |
242755
|
[2] |
Stud
|
|
| 39. |
242200
|
[4] |
Spring washer
|
|
| 40. |
242177
|
[4] |
Nut
|
|
| 41. |
242757
|
[4] |
Insulating washer
|
|
| 42. |
|
|
|
|
| 43. |
|
|
|
|
| 44. |
|
|
|
|
| 45. |
|
|
|
|
| 46. |
242761
|
[2] |
Insulating washer
|
|
| 47. |
242762
|
[2] |
Screw
|
|
| 48. |
242734
|
[2] |
Spring washer
|
|
| 49. |
|
|
|
|
| 50. |
|
|
|
|
| 51. |
242763
|
[6] |
Screw
|
|
| 52. |
242734
|
[6] |
Spring washer
|
|
| 53. |
242764
|
[1] |
Adapter ring
|
|
| 54. |
242765
|
[2] |
Spring washer
|
|
| 55. |
242745
|
[3] |
Nut
|
|
| 56. |
242766
|
[1] |
Connecting flange
|
|
| 57. |
|
|
|
|
| 58. |
242768
|
[1] |
Ferrule
|
|
| 59. |
242769
|
[1] |
Ferrule
|
|
| 60. |
242770
|
[1] |
Nut
|
|
