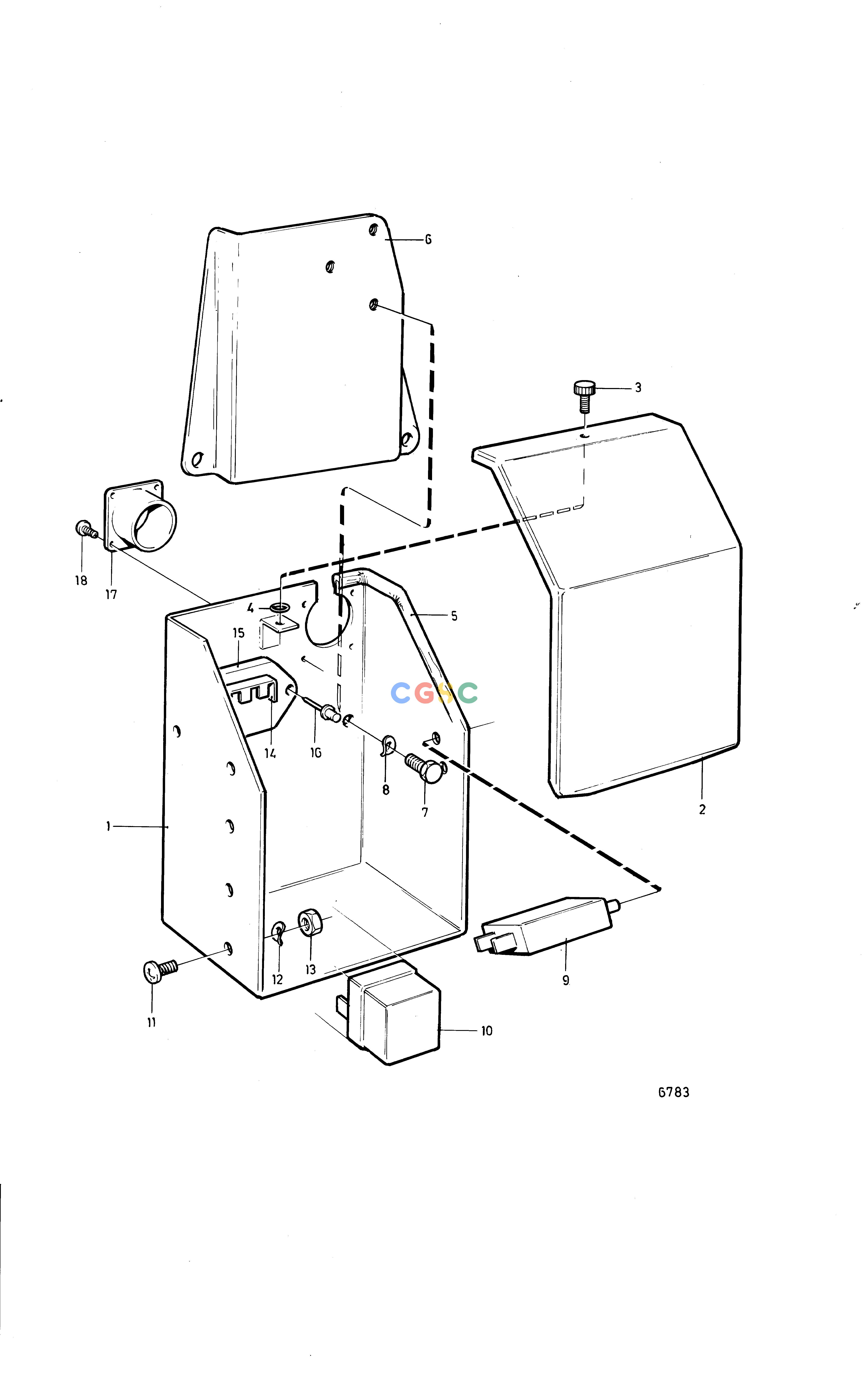

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EElectrical SystemElectric Box and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
903 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
846791
|
[1] |
Box
|
|
| 2. |
846662
|
[1] |
Cap
|
|
| 3. |
846736
|
[1] |
Lock screw
|
|
| 4. |
925051
|
[1] |
O-ring
|
|
| 5. |
1214306
|
[1] |
Stop dog
|
|
| 6. |
846709
|
[1] |
Bracket
|
|
| 7. |
956090
|
[3] |
Cross recessed screw
|
|
| 8. |
955892
|
[3] |
Washer
|
|
| 9. |
966689
|
[2] |
Fuse
|
8A
|
| 10. |
876037
|
[2] |
Relay kit
|
12V 30A
|
| 10. |
1504951
|
[2] |
Relay
|
24V 150A
|
| 11. |
956075
|
[3] |
Cross recessed screw
|
|
| 12. |
941905
|
[3] |
Spring washer
|
|
| 13. |
955780
|
[3] |
Hexagon nut
|
|
| 14. |
1234263
|
[1] |
Pin
|
|
| 15. |
1234048
|
[1] |
Bottom section
|
|
| 16. |
942670
|
[2] |
Blind rivet
|
|
| 17. |
|
|
|
|
| 18. |
955119
|
[4] |
Cross recessed screw
|
|
