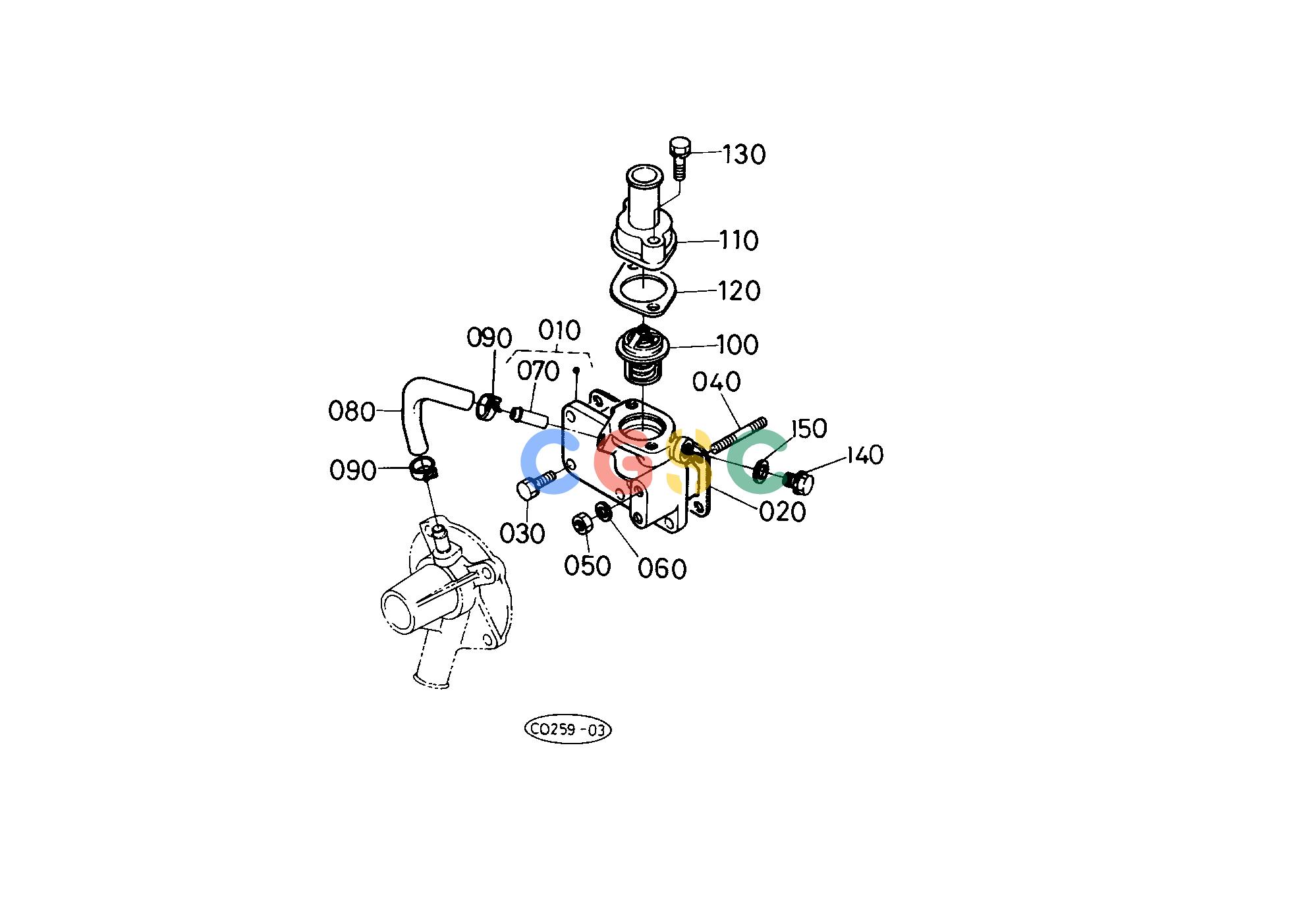

久保田零件查询T01800 WATER FLANGE/THERMOSTAT ENGINEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
329 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1558272700
|
[1] |
COMP.FLANGE WATER
|
0.5500(lbs); 0.250
|
| 020. |
1526172920
|
[1] |
GASKET WATER FLANGE
|
0.0000(lbs); 0.000
|
| 030. |
0102350616
|
[5] |
BOLT
|
0.0132(lbs); 0.006
|
| 040. |
0151350655
|
[1] |
STUD
|
0.0286(lbs); 0.013
|
| 050. |
0205650060
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 060. |
0451250060
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 070. |
1624173340
|
[1] |
PIPE WATER RETURN
|
0.0132(lbs); 0.006
|
| 080. |
1553173350
|
[1] |
PIPE WATER RETURN
|
0.0440(lbs); 0.020
|
| 090. |
1624173360
|
[2] |
BAND PIPE
|
0.0066(lbs); 0.003
|
| 100. |
1553173010
|
[1] |
ASSY THERMOSTAT
|
0.1386(lbs); 0.063
|
| 110. |
1553173260
|
[1] |
COVER THERMOSTAT
|
0.1496(lbs); 0.068
|
| 120. |
1553173270
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 130. |
0102350635
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 140. |
0631125030
|
[1] |
PLUG
|
0.1122(lbs); 0.051
|
| 150. |
0472400170
|
[1] |
GASKET
|
0.0110(lbs); 0.005
|
