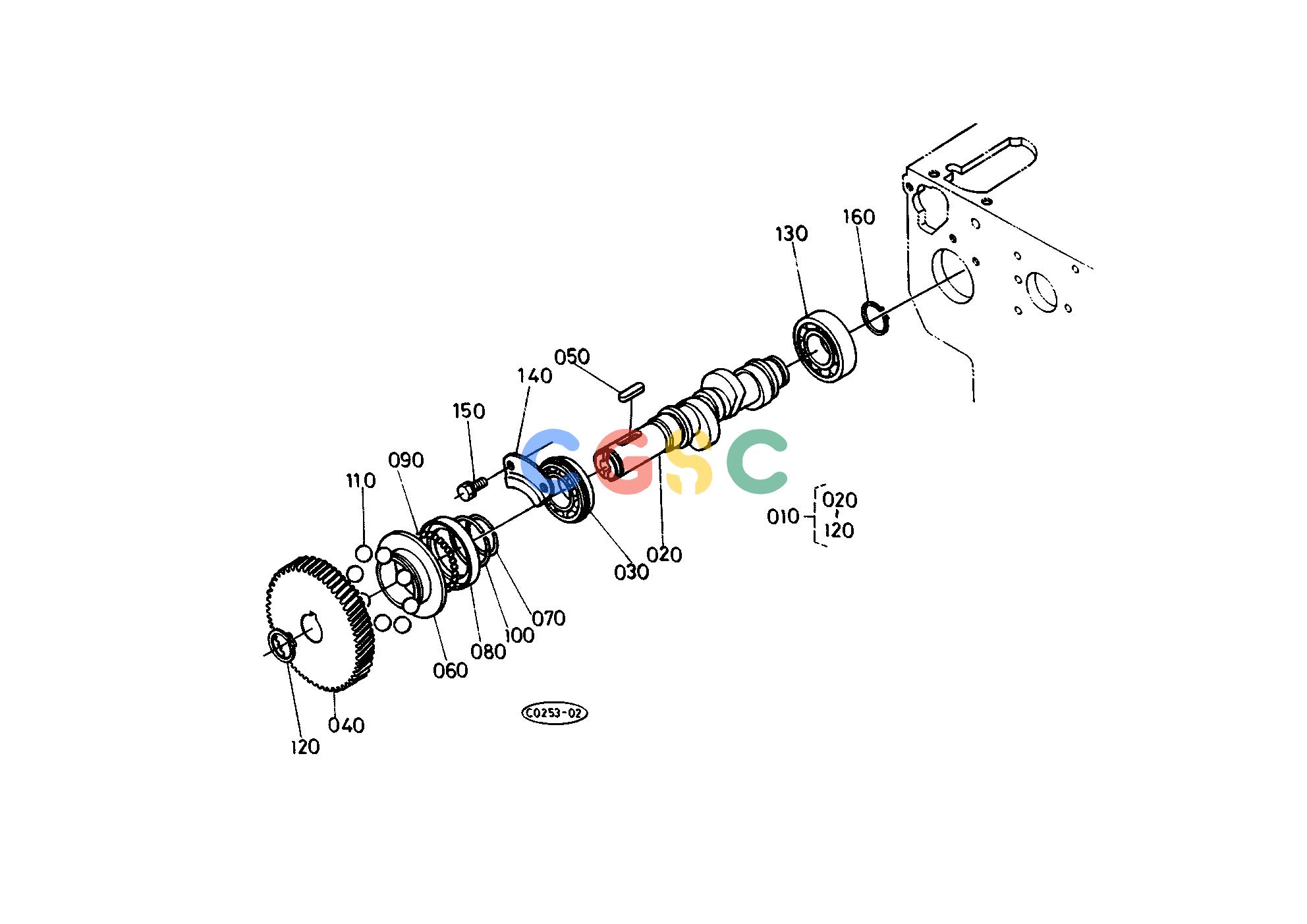

久保田零件查询T01900 FUEL CAMSHAFT ENGINEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
600 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1538116020
|
[1] |
ASSY CAMSHAFT FUEL
|
2.4200(lbs); 1.100
|
| 020. |
1538116170
|
[1] |
CAMSHAFT FUEL
|
0.9240(lbs); 0.420
|
| 030. |
0815306004
|
[1] |
BEARING BALL
|
0.1540(lbs); 0.070
|
| 040. |
1526151150
|
[1] |
GEAR INJECTION PUMP
|
1.0186(lbs); 0.463
|
| 050. |
0571200520
|
[1] |
KEY FEATHER
|
0.0088(lbs); 0.004
|
| 060. |
1526155450
|
[1] |
SLEEVE GOVERNOR
|
0.1276(lbs); 0.058
|
| 070. |
1526155470
|
[1] |
CIR-CLIP GOV. SLEEVE
|
0.0044(lbs); 0.002
|
| 080. |
1526155690
|
[1] |
CASE GOVERNOR BALL
|
0.0000(lbs); 0.000
|
| 090. |
0771503205
|
[30] |
BALL
|
0.0022(lbs); 0.001
|
| 100. |
1526155740
|
[1] |
CIR-CLIP
|
0.0044(lbs); 0.002
|
| 110. |
0771503217
|
[8] |
BALL
|
0.0220(lbs); 0.010
|
| 120. |
0461200180
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 130. |
0810306004
|
[1] |
BEARING BALL
|
0.1452(lbs); 0.066
|
| 140. |
1526116320
|
[1] |
STOPPER
|
0.0814(lbs); 0.037
|
| 150. |
0102350612
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 160. |
0461200200
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
