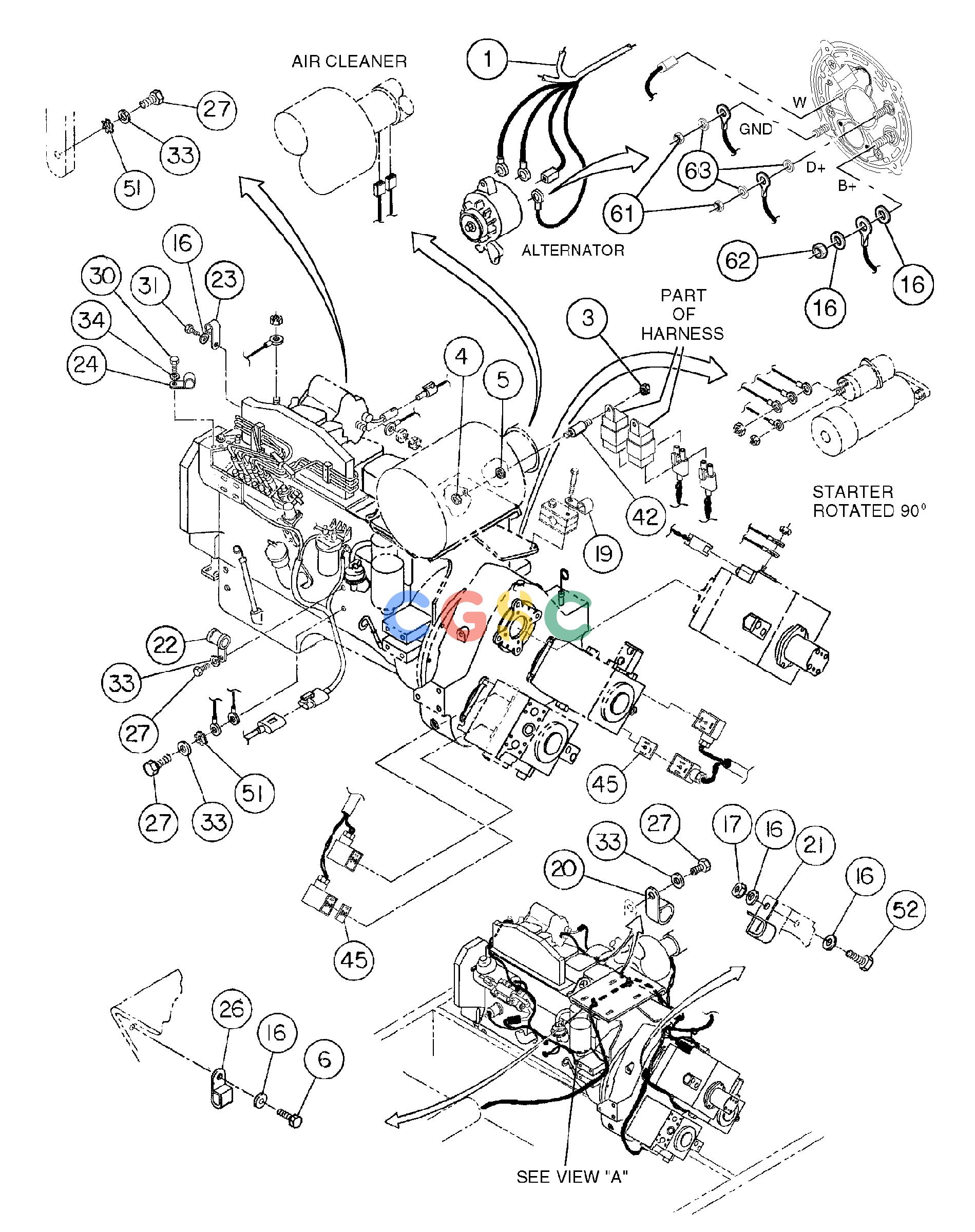

沃尔沃零件查询DD146HF Main Cable Harness InstallationS/N 53539 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
965 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Main Wiring Har
|
|
| 1. |
RM13847751
|
[1] |
Main wiring harness
|
|
| 1. |
RM58892449
|
[1] |
Diode kit
|
|
| 1. |
RM59048819
|
[1] |
Diode kit
|
|
| 1. |
|
[1] |
Electrical panel assembly
|
|
| 1. |
RM59483339
|
[5] |
Fuse
|
15amp
|
| 1. |
VOE978999
|
[5] |
Fuse
|
20amp
|
| 1. |
RM58893249
|
[1] |
Fuse
|
30amp
|
| 3. |
RM95923298
|
[6] |
Jam nut
|
|
| 4. |
RM59327825
|
[6] |
Hexagon nut
|
|
| 5. |
RM95922183
|
[6] |
Plain washer
|
|
| 6. |
RM96702816
|
[10] |
Hexagon screw
|
|
| 16. |
VOE13955894
|
[25] |
Washer
|
|
| 17. |
VOE983403
|
[11] |
Lock nut
|
|
| 19. |
RM59020214
|
[5] |
Clamp
|
|
| 20. |
RM59020255
|
[6] |
Clamp
|
|
| 21. |
RM59020198
|
[2] |
Clamp
|
|
| 22. |
RM59462945
|
[1] |
Clamp
|
|
| 23. |
RM58754458
|
[1] |
Clamp
|
|
| 24. |
RM59661413
|
[1] |
Clamp
|
|
| 26. |
RM59020271
|
[3] |
Clamp
|
|
| 27. |
RM96701495
|
[5] |
Hexagon screw
|
|
| 30. |
RM96702279
|
[4] |
Hexagon screw
|
|
| 31. |
RM96702824
|
[6] |
Hexagon screw
|
|
| 33. |
RM96738596
|
[5] |
Plain washer
|
|
| 34. |
RM96741046
|
[5] |
Plain washer
|
|
| 42. |
RM59970384
|
[2] |
Rubber damper
|
|
| 45. |
RM58788225
|
[4] |
Gasket
|
|
| 51. |
RM96713995
|
[2] |
Lock washer
|
|
| 52. |
RM96702659
|
[1] |
Hexagon screw
|
|
| 61. |
RM96704234
|
[2] |
Hexagon nut
|
|
| 62. |
RM96701370
|
[1] |
Hexagon nut
|
|
| 63. |
RM96738554
|
[3] |
Plain washer
|
|
