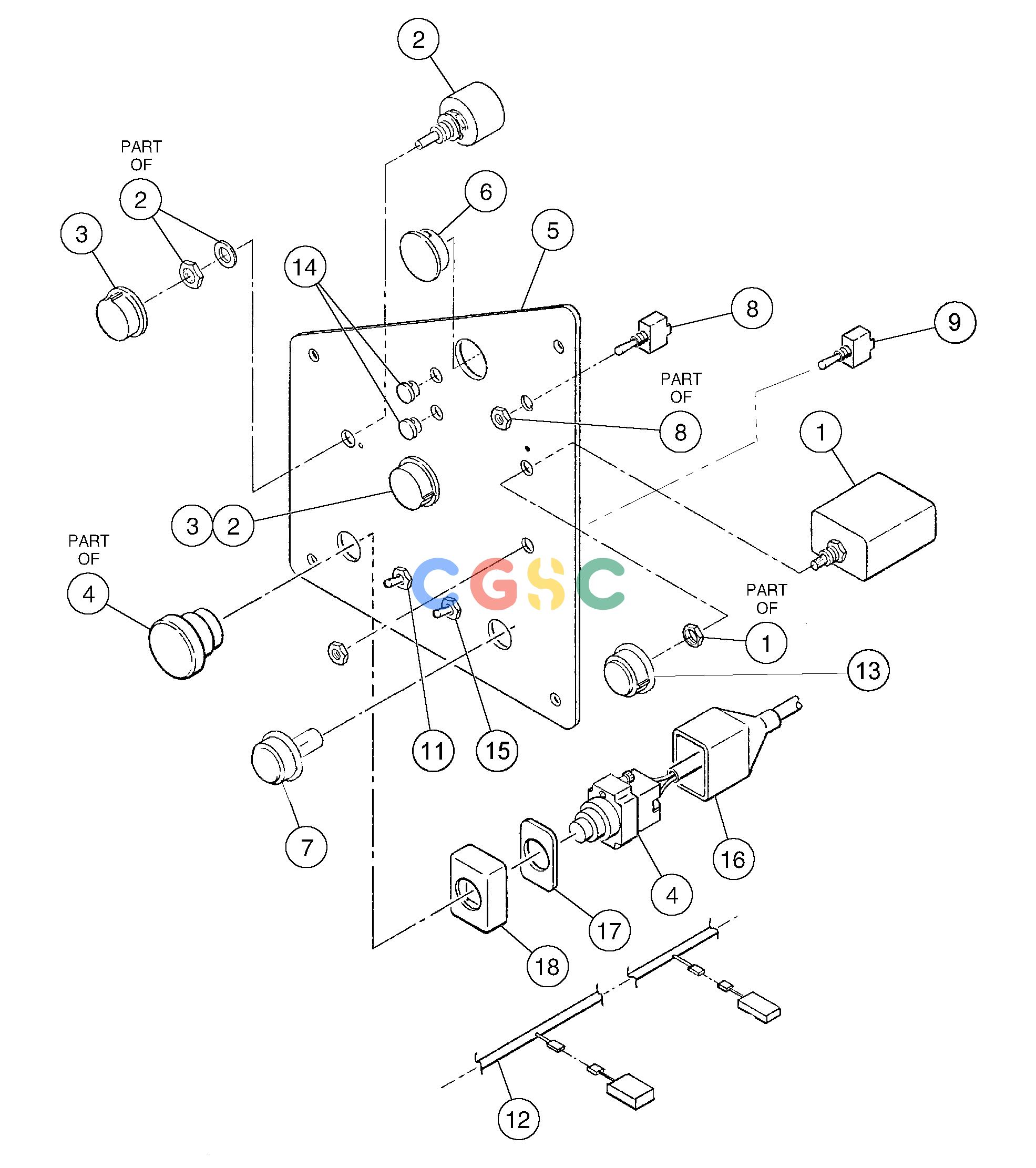

沃尔沃零件查询DD146HF Switch panelS/N 53539 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
935 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM43845205
|
[1] |
Control
|
|
| 1. |
RM59778886
|
[1] |
Knob
|
|
| 2. |
RM58878562
|
[2] |
Switch
|
|
| 3. |
RM58893546
|
[2] |
Knob
|
|
| 4. |
RM43910579
|
[1] |
Emergency switch
|
|
| 5. |
RM59222588
|
[1] |
Decal
|
|
| 6. |
RM59813287
|
[1] |
Plug
|
|
| 7. |
RM59816447
|
[1] |
Indicator lamp
|
|
| 7. |
RM58909268
|
[1] |
Bulb
|
|
| 8. |
RM59331702
|
[1] |
Switch
|
|
| 9. |
RM59950493
|
[1] |
Toggle switch
|
|
| 11. |
RM58789314
|
[1] |
Switch
|
|
| 12. |
RM59222570
|
[1] |
Wiring harness
|
|
| 13. |
RM59047019
|
[1] |
Knob
|
|
| 14. |
RM59813279
|
[3] |
Button
|
|
| 15. |
RM59132563
|
[2] |
Toggle switch
|
|
| 16. |
RM59108605
|
[1] |
Dust cover
|
|
| 17. |
RM43910587
|
[1] |
Washer
|
|
| 18. |
RM59108100
|
[1] |
Dust cover
|
|
