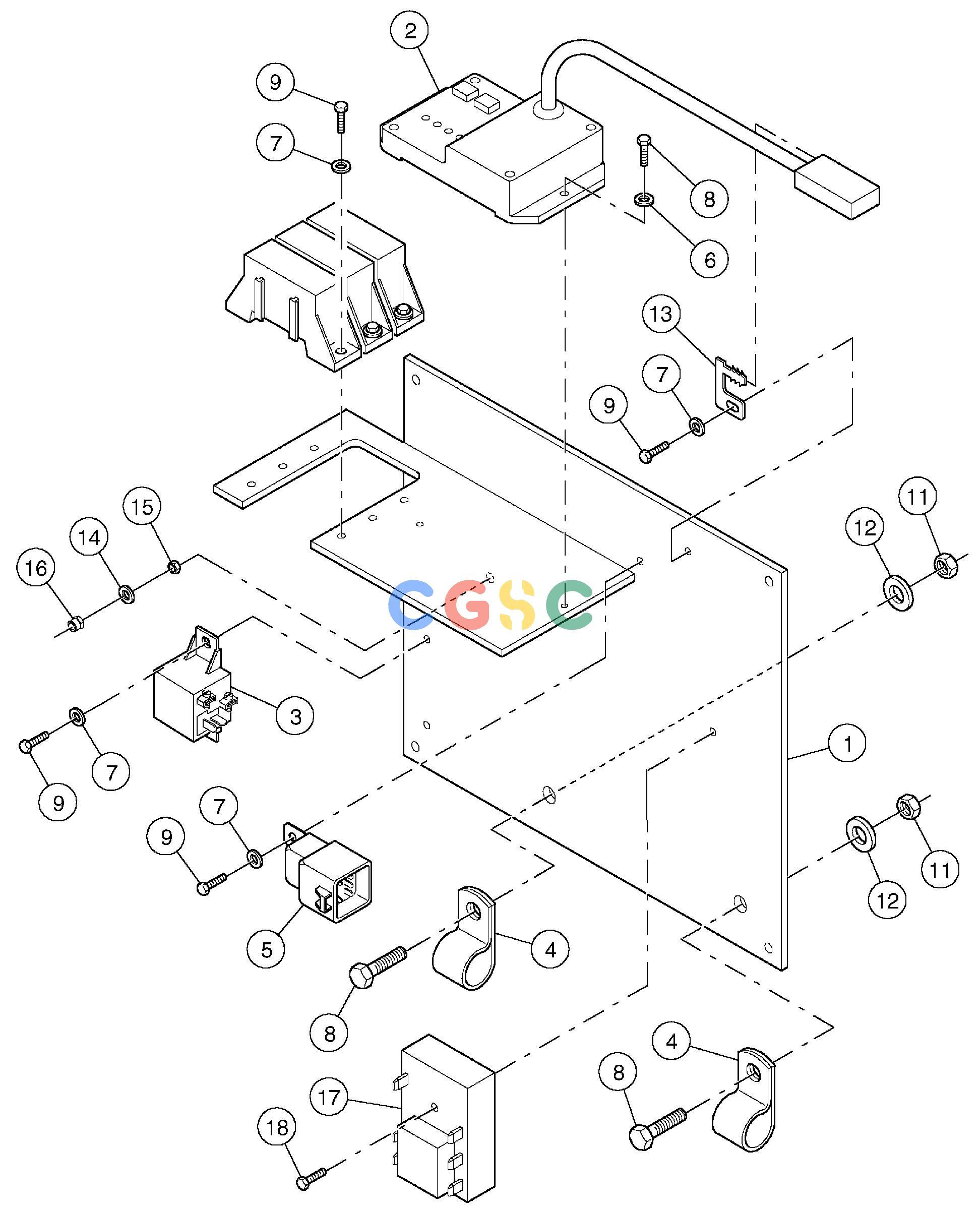

沃尔沃零件查询DD146HF Relay panelS/N 53539 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
956 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM59239582
|
[1] |
Weld, Panel Mou
|
|
| 2. |
13391842
|
[1] |
None
|
|
| 2. |
RM43845064
|
[1] |
Switch
|
|
| 2. |
RM13305008
|
[2] |
Switch
|
|
| 3. |
RM20934592
|
[1] |
Relay
|
|
| 4. |
RM59020271
|
[2] |
Clamp
|
|
| 5. |
RM58965377
|
[1] |
Relay
|
|
| 6. |
RM96705165
|
[2] |
Plain washer
|
|
| 7. |
RM96714381
|
[10] |
Plain washer
|
|
| 8. |
RM96702279
|
[2] |
Hexagon screw
|
|
| 9. |
RM96702386
|
[12] |
Hexagon screw
|
|
| 11. |
RM96704614
|
[2] |
Jam nut
|
|
| 12. |
RM96741046
|
[2] |
Plain washer
|
|
| 13. |
RM59048868
|
[1] |
Clip
|
|
| 14. |
VOE955892
|
[1] |
Plain washer
|
|
| 15. |
RM96704234
|
[1] |
Hexagon nut
|
|
| 16. |
RM96704598
|
[1] |
Jam nut
|
|
| 17. |
RM59151498
|
[1] |
Module
|
|
| 18. |
RM96705751
|
[1] |
Hexagon screw
|
|
