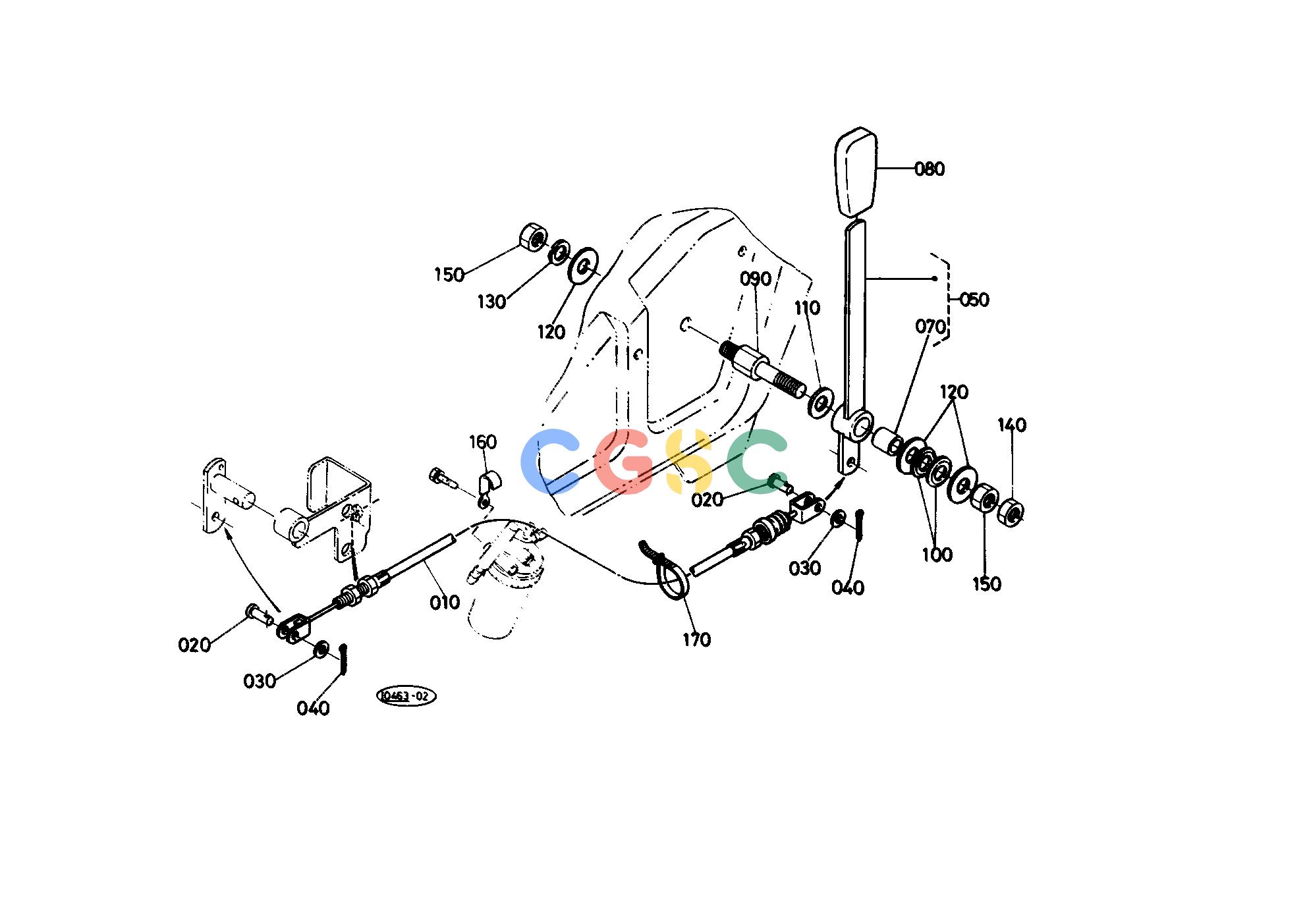

久保田零件查询T02600 ACCELERATOR LEVER ENGINEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
352 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3270144740
|
[1] |
WIRE ACCELERATOR
|
0.4400(lbs); 0.200
|
| 020. |
0512250618
|
[2] |
PIN JOINT
|
0.0088(lbs); 0.004
|
| 030. |
0401250060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 040. |
0551151610
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 050. |
3270144700
|
[1] |
ASSY LEVER ACCEL.
|
0.3190(lbs); 0.145
|
| 070. |
0851101220
|
[1] |
BUSH
|
0.0088(lbs); 0.004
|
| 080. |
3135136880
|
[1] |
GRIP LEVER
|
0.0880(lbs); 0.040
|
| 090. |
3270144770
|
[1] |
SHAFT ACCEL-LEVER
|
0.2200(lbs); 0.100
|
| 100. |
6780044720
|
[2] |
SPRING
|
0.0110(lbs); 0.005
|
| 110. |
0401350120
|
[1] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 120. |
0401550120
|
[3] |
WASHER PLAIN
|
0.0440(lbs); 0.020
|
| 130. |
0451250120
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 140. |
0217250120
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 150. |
0217450120
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 160. |
3224034490
|
[1] |
CLAMP CORD
|
0.0066(lbs); 0.003
|
| 170. |
5358164150
|
[1] |
BAND CORD
|
0.0044(lbs); 0.002
|
