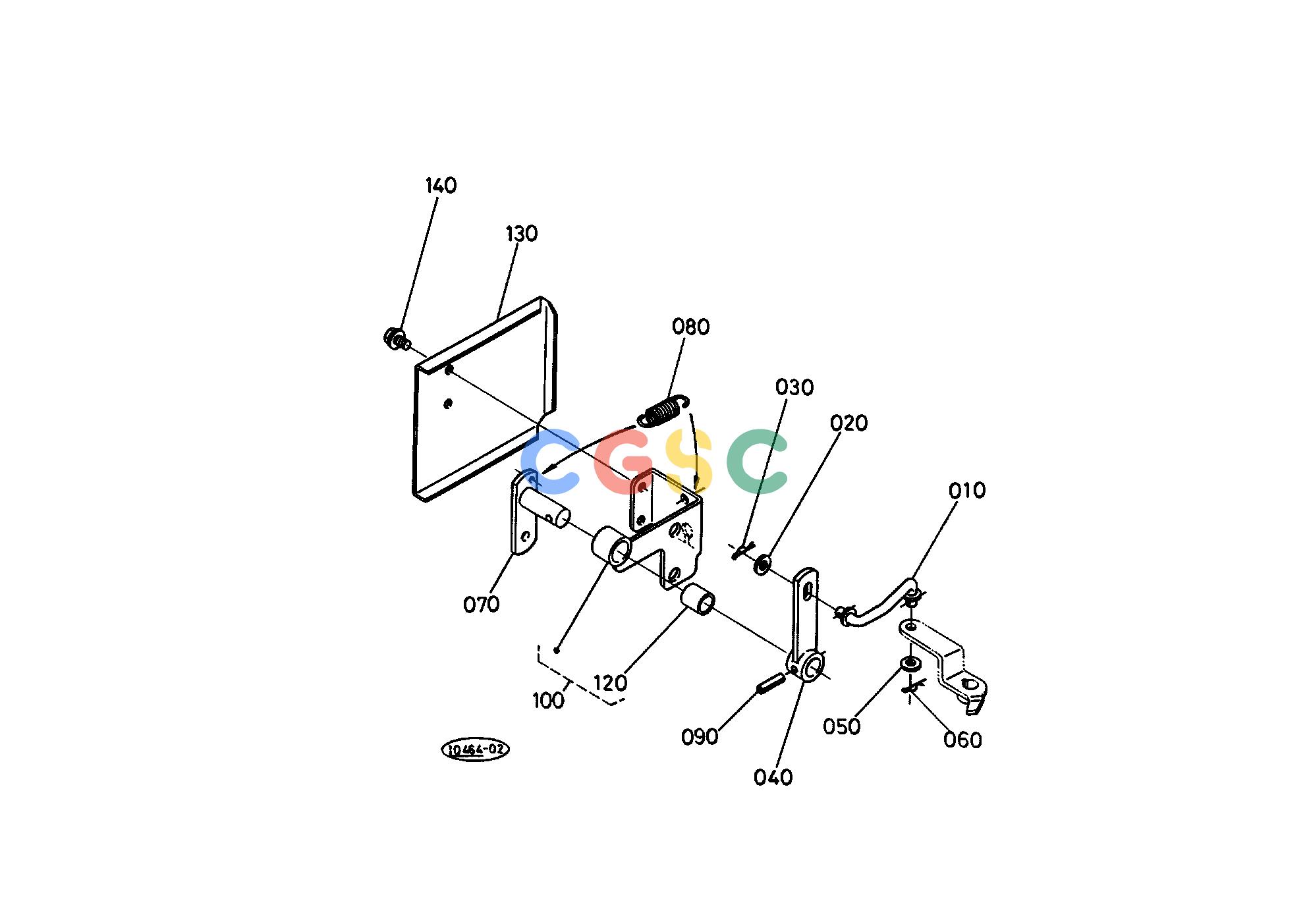

久保田零件查询T02700 RELEASE LEVER ENGINEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
698 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3270144850
|
[1] |
ROD RELEASE
|
0.0330(lbs); 0.015
|
| 020. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 030. |
1547194810
|
[1] |
PIN SNAP
|
0.0000(lbs); 0.000
|
| 040. |
3270144760
|
[1] |
ARM RELEASE
|
0.0880(lbs); 0.040
|
| 050. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 060. |
1547194810
|
[1] |
PIN SNAP
|
0.0000(lbs); 0.000
|
| 070. |
3270144860
|
[1] |
LEVER RELEASE
|
0.1540(lbs); 0.070
|
| 080. |
3270144840
|
[1] |
SPRING RELEASE
|
0.0154(lbs); 0.007
|
| 090. |
0541100320
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 100. |
3270144730
|
[1] |
ASSY STAY RELEASE
|
0.3300(lbs); 0.150
|
| 120. |
0851101220
|
[1] |
BUSH
|
0.0088(lbs); 0.004
|
| 130. |
3270144720
|
[1] |
COVER RELEASE
|
0.3960(lbs); 0.180
|
| 140. |
0175450610
|
[2] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
