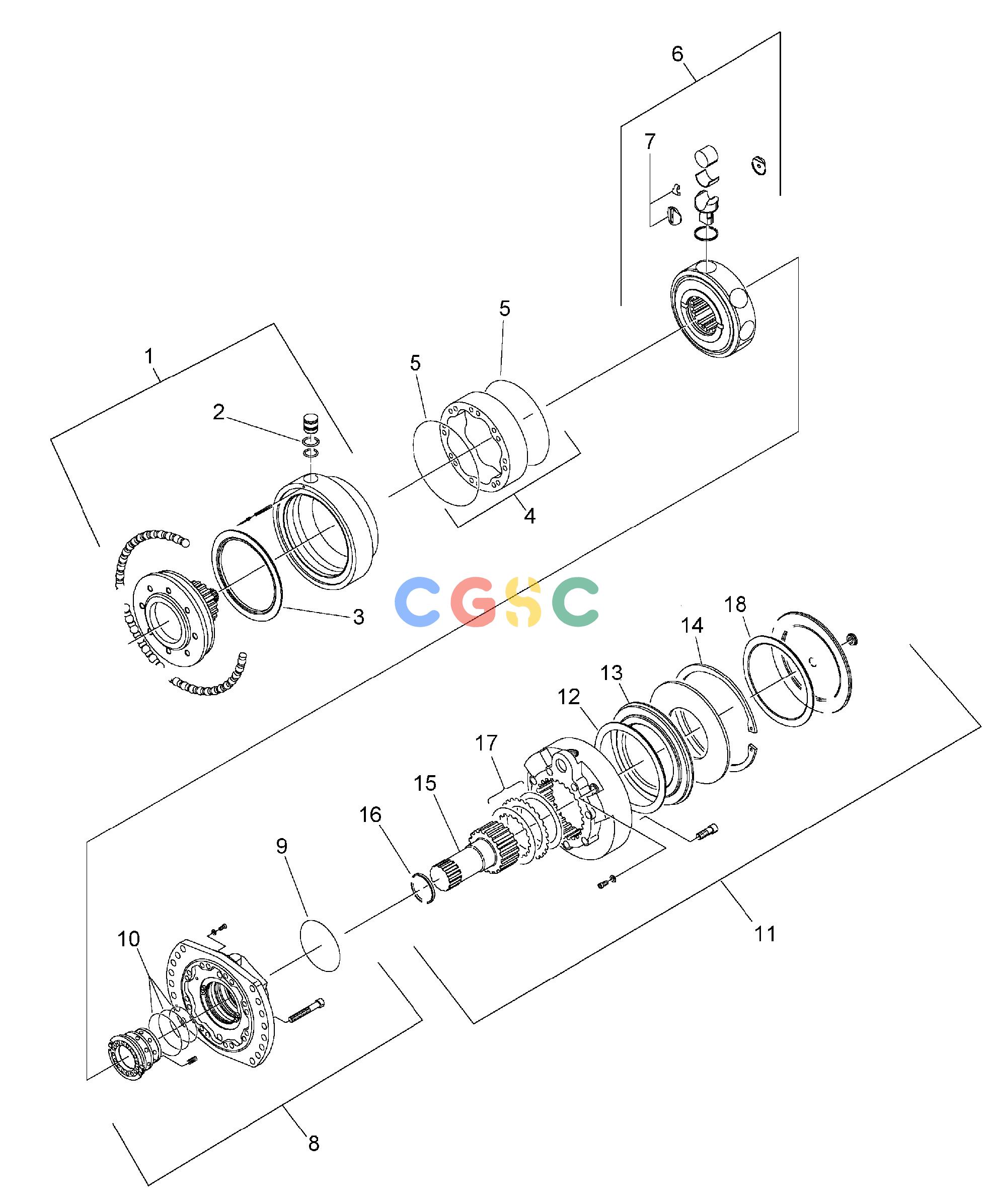

沃尔沃零件查询DD146HF Drive MotorS/N 53539 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
979 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
RM43908367
|
[1] |
Hydraulic motor
|
|
| 1. |
RM59234542
|
[1] |
Bearing support
|
|
| 2. |
RM59242503
|
[1] |
O-ring
|
|
| 3. |
RM13253323
|
[1] |
Sealing ring
|
|
| 4. |
RM59234526
|
[1] |
Cam
|
|
| 5. |
RM58804592
|
[2] |
O-ring
|
|
| 6. |
RM59234500
|
[1] |
Cylinder block
|
|
| 7. |
RM59234518
|
[1] |
Repair kit
|
|
| 8. |
RM59234534
|
[1] |
Cover,valving
|
|
| 9. |
RM59902684
|
[1] |
O-ring
|
|
| 10. |
RM58762725
|
[1] |
Sealing kit
|
|
| 11. |
RM59234559
|
[1] |
Brake disc
|
|
| 12. |
RM13220827
|
[1] |
O-ring
|
|
| 13. |
RM59934687
|
[1] |
Brake piston
|
|
| 14. |
RM59934703
|
[1] |
Snap ring
|
|
| 15. |
RM13263561
|
[1] |
Shaft
|
|
| 16. |
RM58762931
|
[1] |
Sealing kit
|
|
| 17. |
RM59234567
|
[1] |
Brake disc
|
|
| 18. |
RM70914130
|
[1] |
O-ring
|
|
| 19. |
RM70914114
|
[1] |
Guard
|
|
| |
VOE17459538
|
[1] |
Sealing kit
|
|
