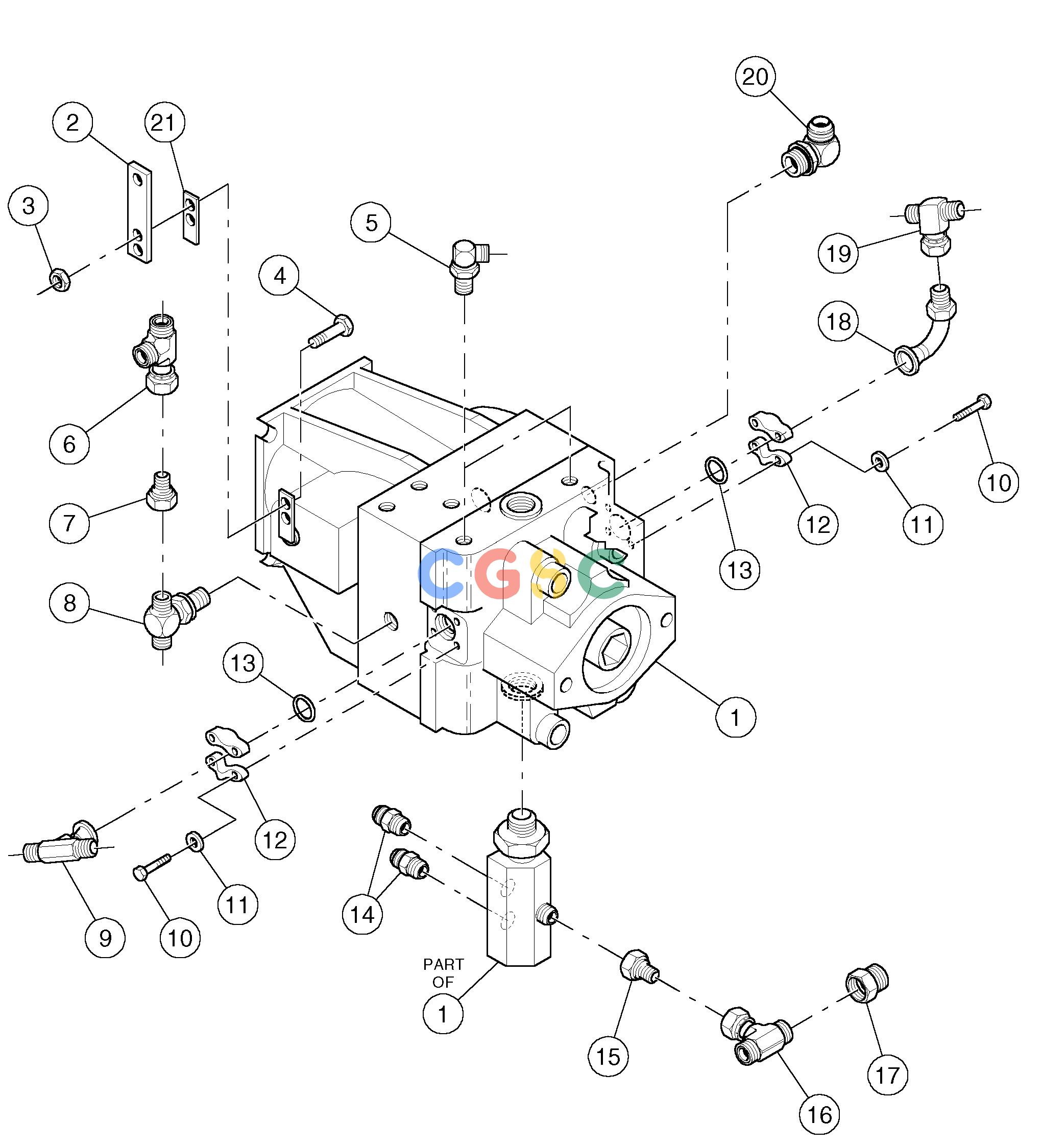

沃尔沃零件查询DD146HF Propulsion Pump AssemblyS/N 53539 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
401 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RM43847342
|
[1] |
Pump
|
|
| 1. |
RM95988796
|
[1] |
O-ring
|
|
| 2. |
RM58964818
|
[1] |
Control lever
|
|
| 3. |
RM96704598
|
[2] |
Jam nut
|
|
| 4. |
RM96728514
|
[2] |
Hexagon screw
|
|
| 5. |
VOE935069
|
[2] |
Elbow nipple
|
|
| 6. |
VOE4821862
|
[1] |
Tee
|
|
| 7. |
RM59672709
|
[1] |
Adapter
|
|
| 8. |
RM95469169
|
[1] |
T-nipple
|
|
| 9. |
RM59442012
|
[1] |
T-nipple
|
|
| 10. |
RM95919460
|
[8] |
Hexagon screw
|
|
| 11. |
RM59995126
|
[8] |
Plain washer
|
|
| 12. |
RM58901653
|
[4] |
Clamp
|
|
| 13. |
RM59993881
|
[2] |
O-ring
|
|
| 14. |
VOE935095
|
[2] |
Nipple
|
|
| 15. |
RM95365078
|
[1] |
Tooth adapter
|
|
| 16. |
RM95480117
|
[1] |
T-nipple
|
|
| 17. |
RM58927773
|
[1] |
Coupling piece
|
|
| 18. |
RM59327775
|
[1] |
Nipple
|
|
| 19. |
RM59923763
|
[1] |
T-nipple
|
|
| 20. |
RM95357604
|
[1] |
Adapter
|
|
| 20. |
RM95425104
|
[1] |
Adapter
|
|
| 21. |
RM13216916
|
[1] |
Shim
|
|
