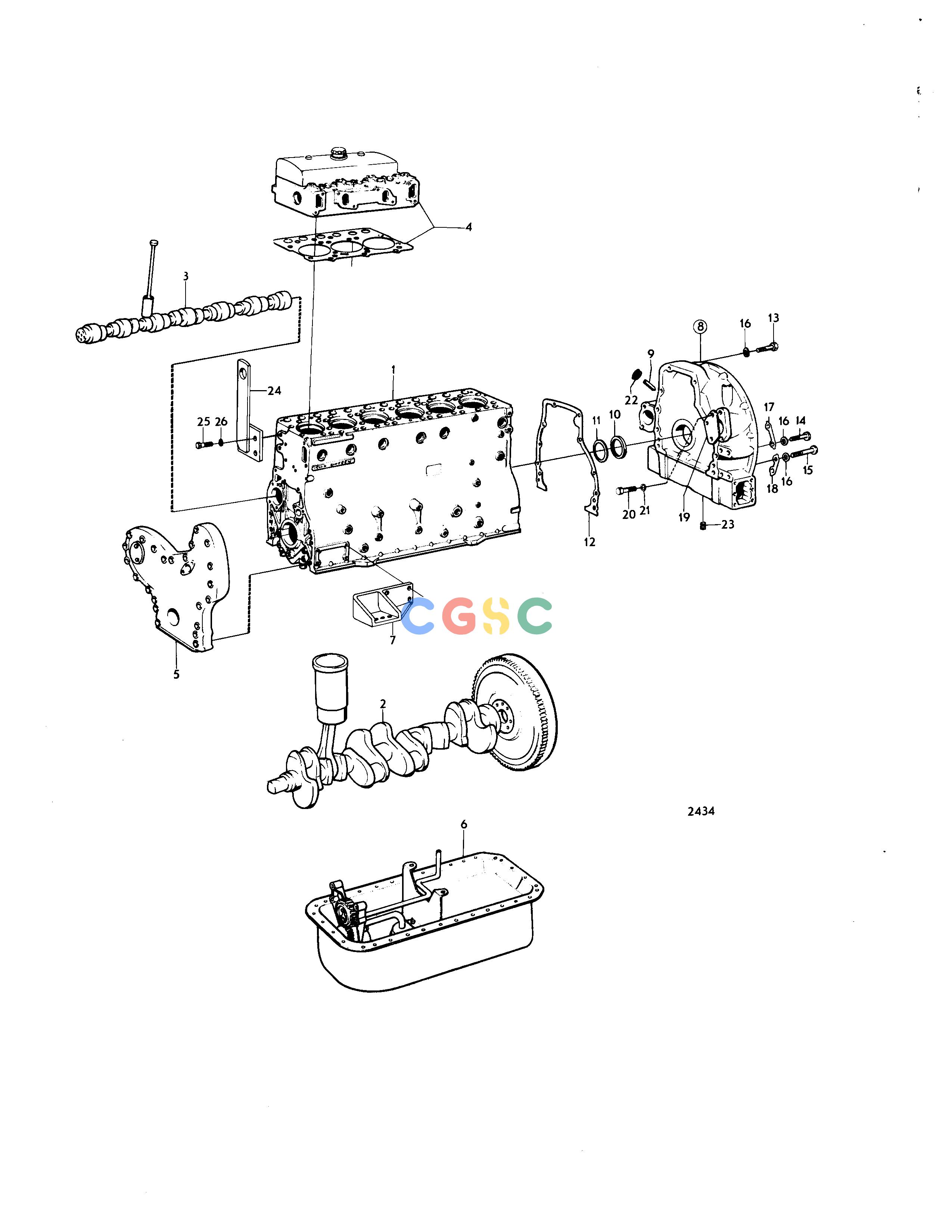

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EEngineEngine and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
1018 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7743260_002
|
|
cylinder block
|
|
| 2. |
7743260_004
|
|
crankshaft and related parts
|
|
| 2. |
|
|
|
|
| 3. |
7743260_006
|
|
camshaft
|
|
| 4. |
7743260_007
|
|
cylinder head
|
|
| 5. |
7743260_008
|
|
timing gear casing
|
|
| 5. |
|
|
|
|
| 6. |
7743260_010
|
|
lubricating system
|
|
| 7. |
7743260_015
|
|
engine suspension
|
|
| 8. |
821790
|
[1] |
Flywheel housing
|
|
| 8. |
847320
|
[1] |
Flywheel housing
|
Seating for engine bracket placed above the centre line of crankshaft
|
| 9. |
404069
|
[1] |
Pin
|
|
| 10. |
471056
|
[1] |
Seal
|
|
| 11. |
821766
|
[1] |
Spacer ring
|
|
| 12. |
420167
|
[1] |
Gasket
|
|
| 13. |
955581
|
[2] |
Hexagon screw
|
|
| 14. |
955580
|
[6] |
Hexagon screw
|
|
| 15. |
955583
|
[2] |
Hexagon screw
|
|
| 16. |
120196
|
[10] |
Washer
|
|
| 17. |
941466
|
[2] |
Tab washer
|
|
| 18. |
941464
|
[2] |
Tab washer
|
|
| 19. |
423081
|
[1] |
Cover
|
|
| 20. |
940133
|
[3] |
Hexagon screw
|
|
| 21. |
942336
|
[3] |
Spring washer
|
|
| 22. |
61822
|
[1] |
Rubber plug
|
|
| 23. |
952357
|
[1] |
Plug
|
|
| 24. |
|
|
|
|
| 25. |
955561
|
[2] |
Hexagon screw
|
|
| 26. |
940280
|
[2] |
Spring washer
|
|
