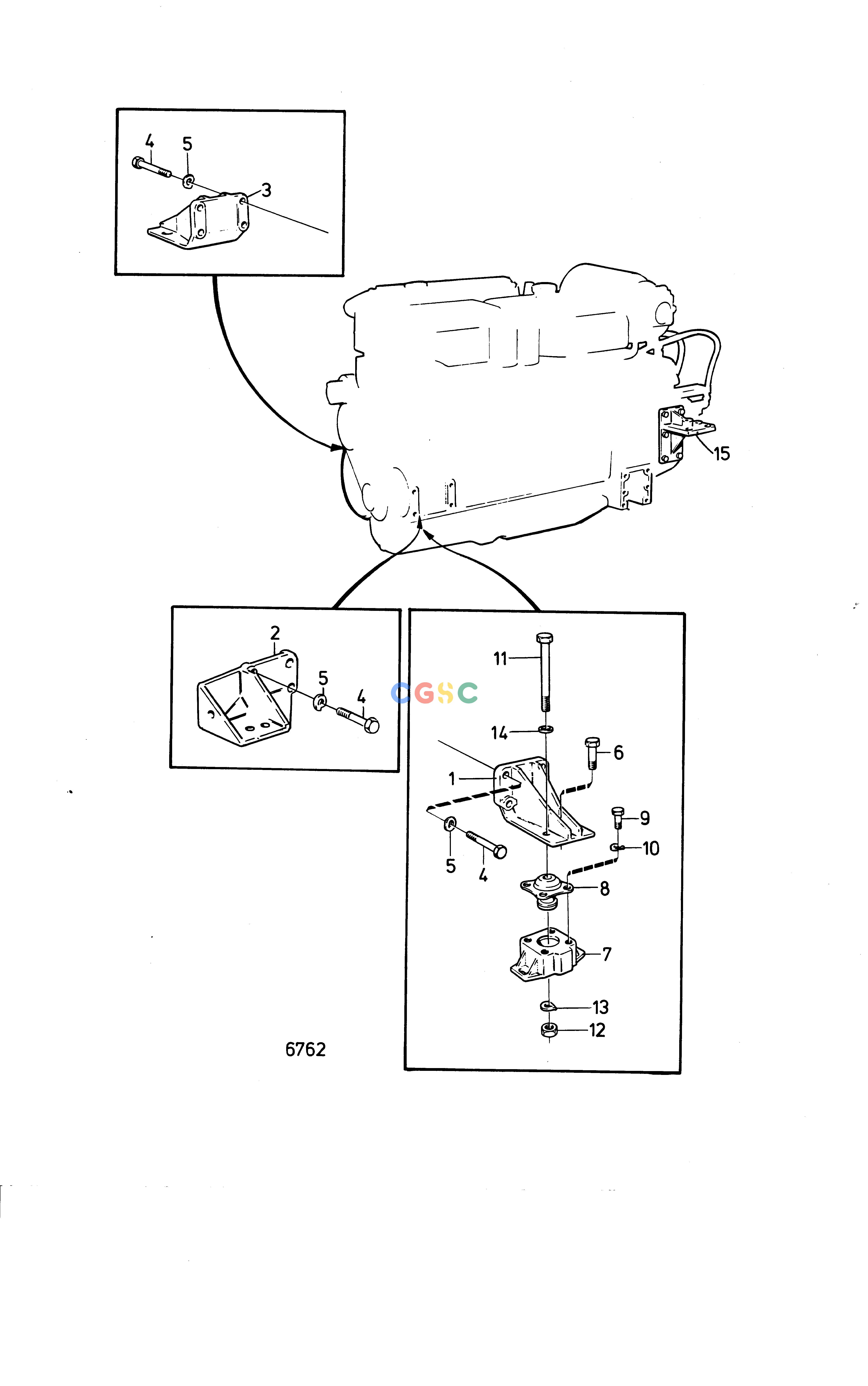

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EEngineEngine SuspensionEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
830 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
848615
|
[1] |
Bracket
|
P
|
| 2. |
844700
|
[1] |
Bracket
|
For alternator 823765 and 823850., P
|
| 3. |
848616
|
[1] |
Bracket
|
S.B
|
| 4. |
955567
|
[4] |
Hexagon screw
|
L=70mm
|
| 4. |
955565
|
[4] |
Hexagon screw
|
L=57mm
|
| 5. |
940280
|
[8] |
Spring washer
|
|
| 6. |
837717
|
[2] |
Screw
|
|
| 7. |
837716
|
[2] |
Anchorage
|
|
| 8. |
837227
|
[4] |
Rubber cushion
|
Soft, 50 shore
|
| 8. |
837826
|
[4] |
Rubber element
|
Hard, 60 shore
|
| 9. |
955317
|
[8] |
Hexagon screw
|
|
| 10. |
941908
|
[8] |
Spring washer
|
|
| 11. |
955380
|
[2] |
Hexagon screw
|
L=160mm
|
| 12. |
955785
|
[2] |
Hexagon nut
|
|
| 13. |
941912
|
[2] |
Spring washer
|
|
| 14. |
955900
|
[2] |
Washer
|
|
| 15. |
|
|
|
|
