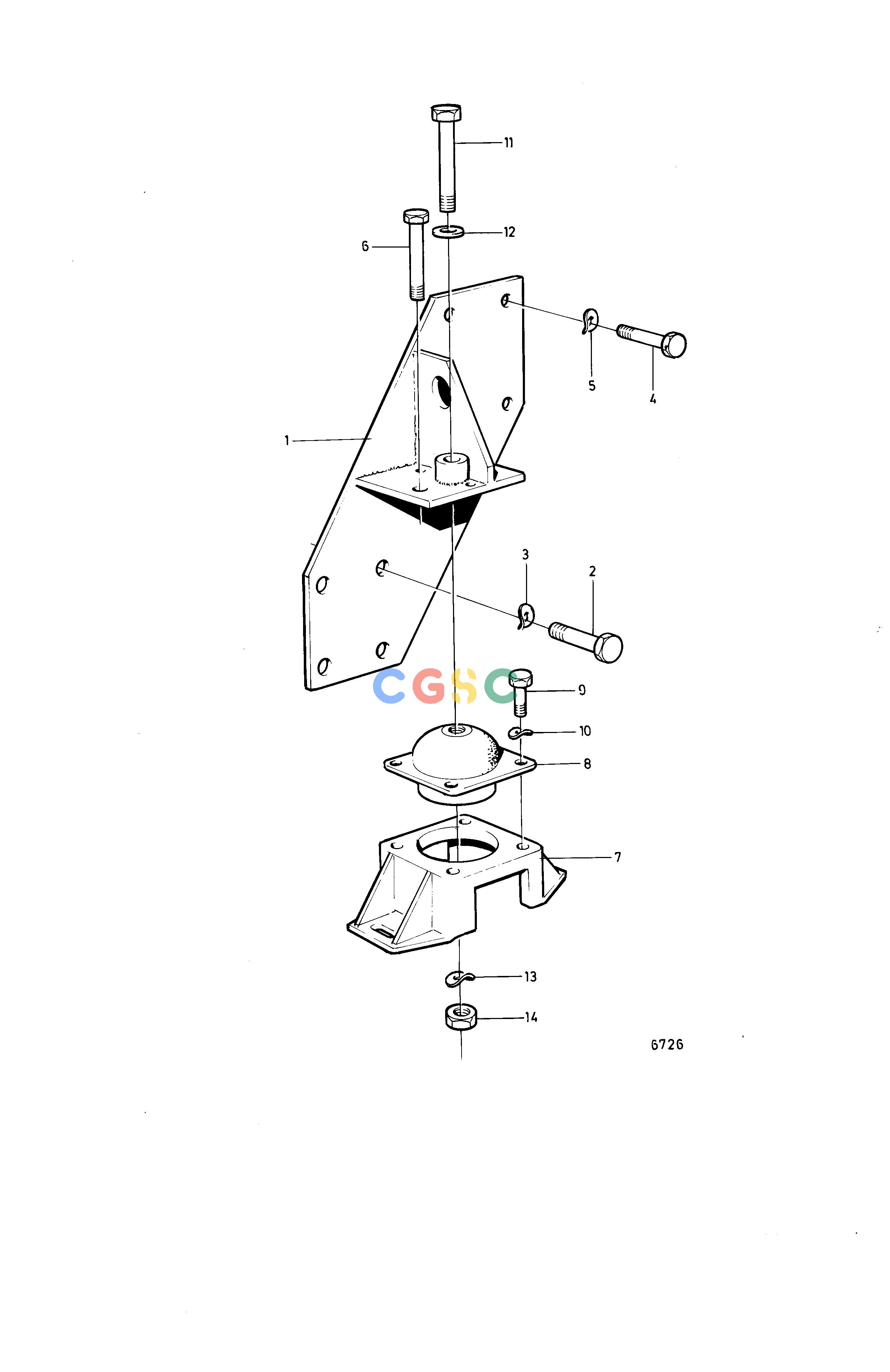

沃尔沃零件查询AQD70D; TAMD70D; TAMD70EEngineEngine Suspension for Reverse Gear Twin Disc MG507EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
211 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
848251
|
[1] |
Bracket
|
|
| 1. |
848250
|
[1] |
Bracket
|
|
| 2. |
955364
|
[8] |
Hexagon screw
|
|
| 3. |
941912
|
[8] |
Spring washer
|
|
| 4. |
955561
|
[6] |
Hexagon screw
|
L=32mm
|
| 4. |
955560
|
[2] |
Hexagon screw
|
L=25mm
|
| 5. |
940280
|
[8] |
Spring washer
|
|
| 6. |
837717
|
[2] |
Screw
|
|
| 7. |
837716
|
[2] |
Anchorage
|
|
| 8. |
7743260_016
|
|
rubber element
|
|
| 9. |
955317
|
[8] |
Hexagon screw
|
|
| 10. |
941908
|
[8] |
Spring washer
|
|
| 11. |
955378
|
[2] |
Hexagon screw
|
|
| 12. |
955900
|
[2] |
Washer
|
|
| 13. |
941912
|
[2] |
Spring washer
|
|
| 14. |
955785
|
[2] |
Hexagon nut
|
|
