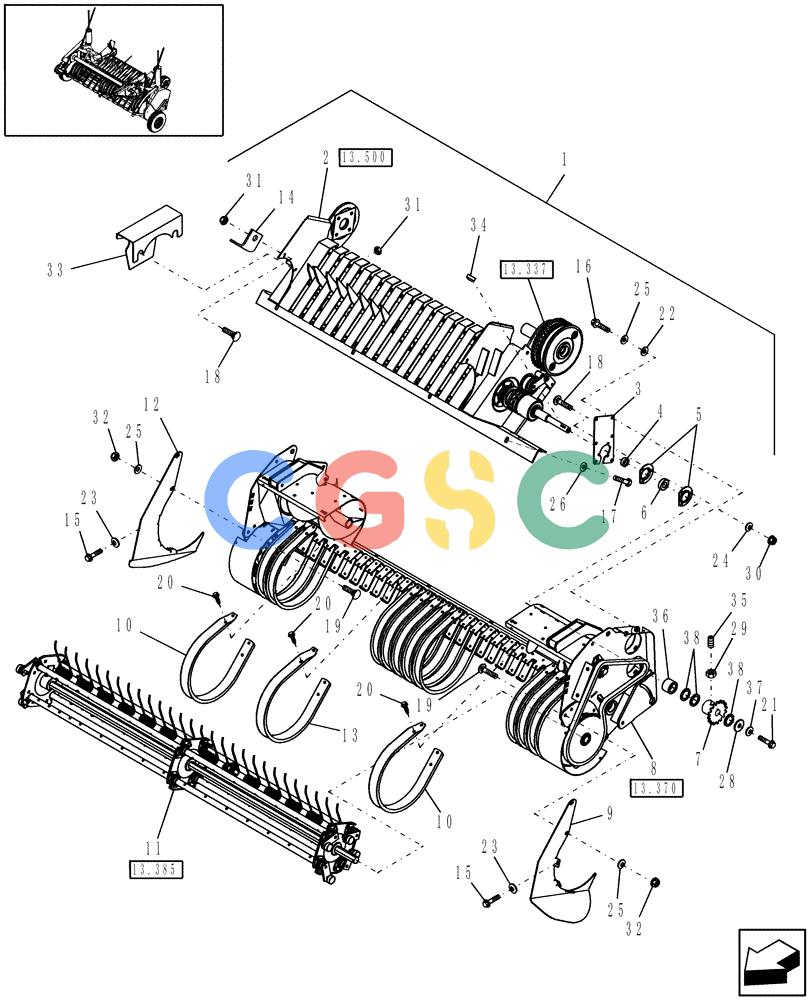

| 1. |
87606515
|
[1] |
PICK-UP
|
NH
1.8M Wide Dual Cam & Stuffer Feeder
|
| 2. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Stuffer Feeder, Dry Hay
|
| 3. |
87042087
|
[1] |
PLATE
|
PA
, Serial Range: -Y9N043084 Superseded by part number: 87654729
|
| 3. |
84173517
|
[1] |
PLATE
|
NH
, Start Serial: Y9N043085
|
| 4. |
455102R21
|
[1] |
COLLAR
|
IH
Locking, Includes: Set Screw, Serial Range: -Y9N043084 Superseded by part number: 47577183
|
| 4. |
63266
|
[1] |
COLLAR,30.187mm ID x 44.83mm OD x 16.26mm W
|
GI
Locking, Includes: Set Screw, Start Serial: Y9N043085
|
| 5. |
86603075
|
[2] |
FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm
|
NH
, Serial Range: -Y9N043084
|
| 5. |
87758679
|
[2] |
FLANGED BEARING
|
PA
, Start Serial: Y9N043085 Superseded by part number: 87758678
|
| 6. |
214366C91
|
[1] |
BALL BEARING,25.40mm ID x 52mm OD
|
IH
, Serial Range: -Y9N043084 Superseded by part number: 204807C91
|
| 6. |
63265
|
[1] |
BALL BEARING,30.16mm ID x 62mm OD x 18mm W
|
GI
, Start Serial: Y9N043085
|
| 7. |
87602188
|
[1] |
SPROCKET
|
NH
17T, RC50, Standard, Serial Range: -Y9N043084
|
| 7. |
87055082
|
[1] |
SPROCKET
|
PA
18T, RC 50, Optional Superseded by part number: 87397995
|
| 7. |
87725036
|
[1] |
SPROCKET
|
NH
17T, RC50, Standard, Start Serial: Y9N043085
|
| 9. |
87053734
|
[1] |
GUARD
|
PA
Flare, LH
|
| 10. |
86643381
|
[10] |
GUARD
|
NH
|
| 12. |
84324676
|
[1] |
GUARD
|
NH
Flare, RH
|
| 13. |
87055363
|
[1] |
GUARD ASSY.
|
PA
|
| 14. |
66463
|
[4] |
BRACKET
|
PA
, Serial Range: -Y9N043084 Superseded by part number: 87657039
|
| 15. |
844-6020
|
[6] |
BOLT,Hvy Hex, M6 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804256
|
| 16. |
844-10030
|
[6] |
BOLT,Hvy Hex, M10 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 9840672
|
| 17. |
614-12030
|
[8] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 9706687
|
| 18. |
811-8020
|
[11] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| 19. |
614-8025
|
[15] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43127
|
| 20. |
87039762
|
[108] |
SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"
|
PA
Superseded by part number: 570821
|
| 21. |
43127
|
[1] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 22. |
495-21044
|
[6] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 23. |
322357
|
[6] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 24. |
322358
|
[3] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
, Serial Range: -Y9N043084
|
| 25. |
140045
|
[8] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
, Serial Range: -Y9N043084
|
| 26. |
140046
|
[8] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 28. |
58225
|
[1] |
WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk
|
NH
Superseded by part number: 87654824
|
| 29. |
100016
|
[2] |
NUT,M10 x 1.5, Cl 8
|
NH
, Serial Range: -Y9N043084
|
| 29. |
86512446
|
[3] |
CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8
|
NH
, Start Serial: Y9N043085
|
| 30. |
9804277
|
[3] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
, Serial Range: -Y9N043084 Superseded by part number: 86505868
|
| 30. |
9804278
|
[3] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
, Start Serial: Y9N043085
|
| 31. |
86629542
|
[23] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 34. |
126-24
|
[1] |
WOODRUFF KEY,#15, 1/4" x 1"
|
CAS
Superseded by part number: 47471
|
| 35. |
300483
|
[2] |
SET SCREW,M10 x 25mm
|
PA
, Serial Range: -Y9N043084
|
| 36. |
87634130
|
[1] |
COVER
|
NH
|
| 38. |
245531
|
[1] |
WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk
|
NH
|
